# Batch Orbit Determination — Complete Demo#

Scarabaeus OD Framework | Last revised 2026

What this notebook covers#

This notebook is a self-contained, verbose walkthrough of batch orbit determination (OD) using the Scarabaeus framework. Every concept is explained in detail so that a reader unfamiliar with the specific Scarabaeus API can follow along.

Topics#

#

Topic

1

Spacecraft model definition

2

Dynamics model catalogue — all available force models

3

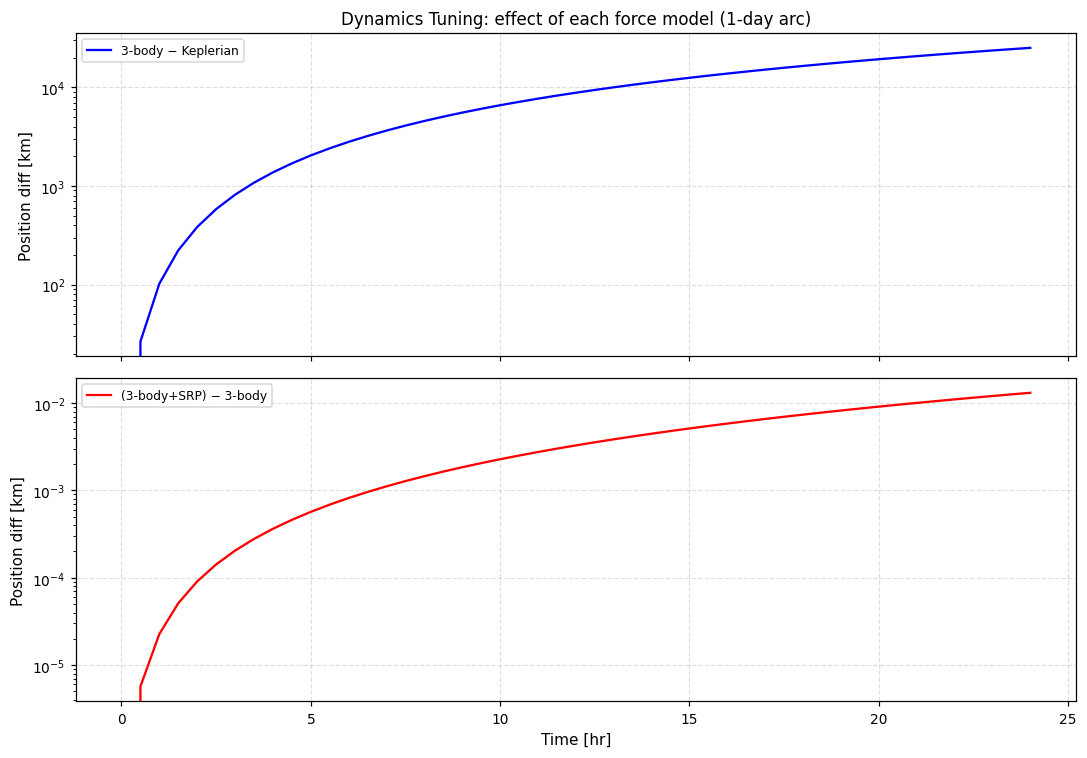

Dynamics tuning — fidelity vs. cost trade-offs

4

True trajectory simulation

5

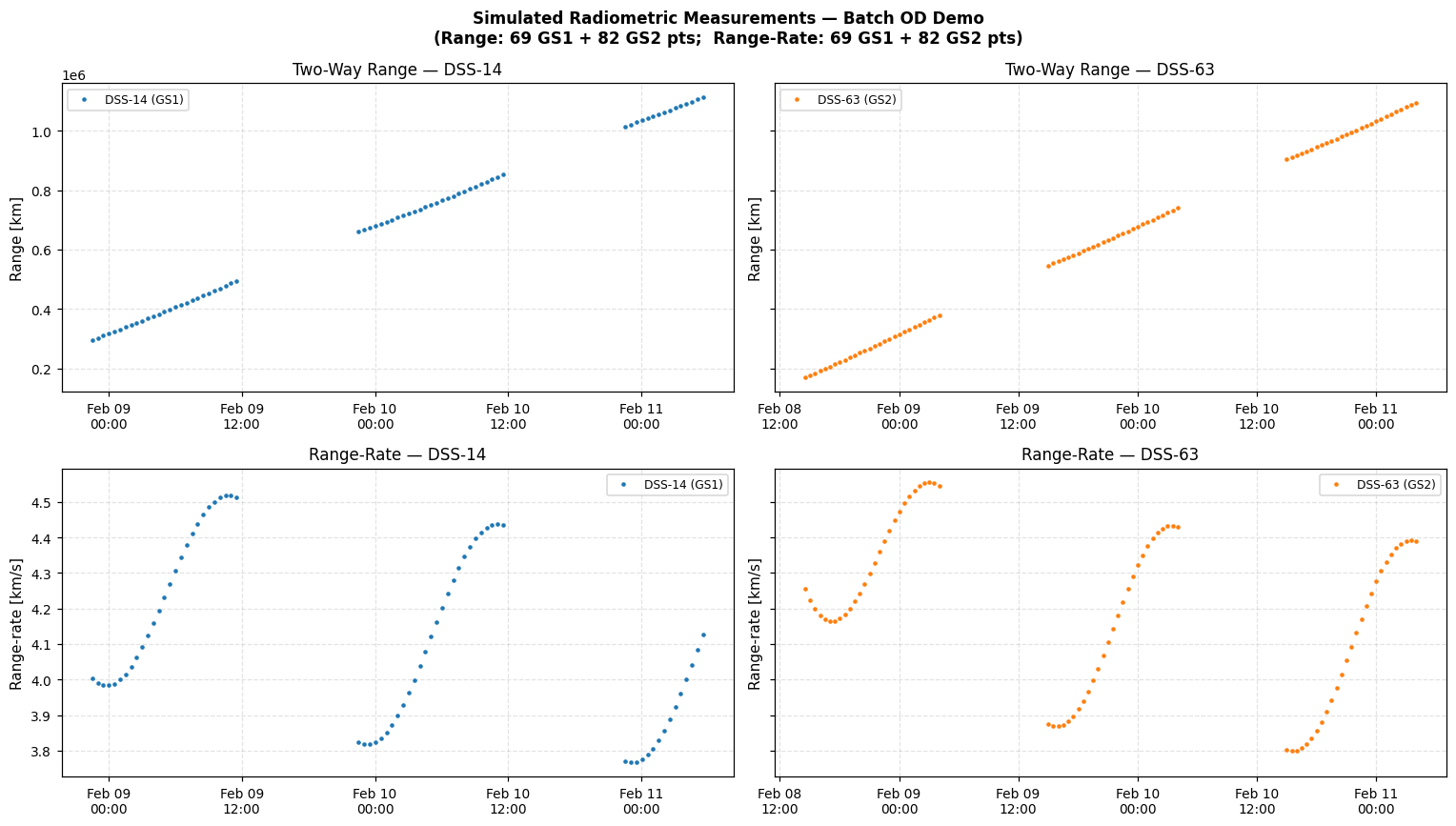

Measurement generation — Range, Range-Rate

6

Reference (perturbed) trajectory

7

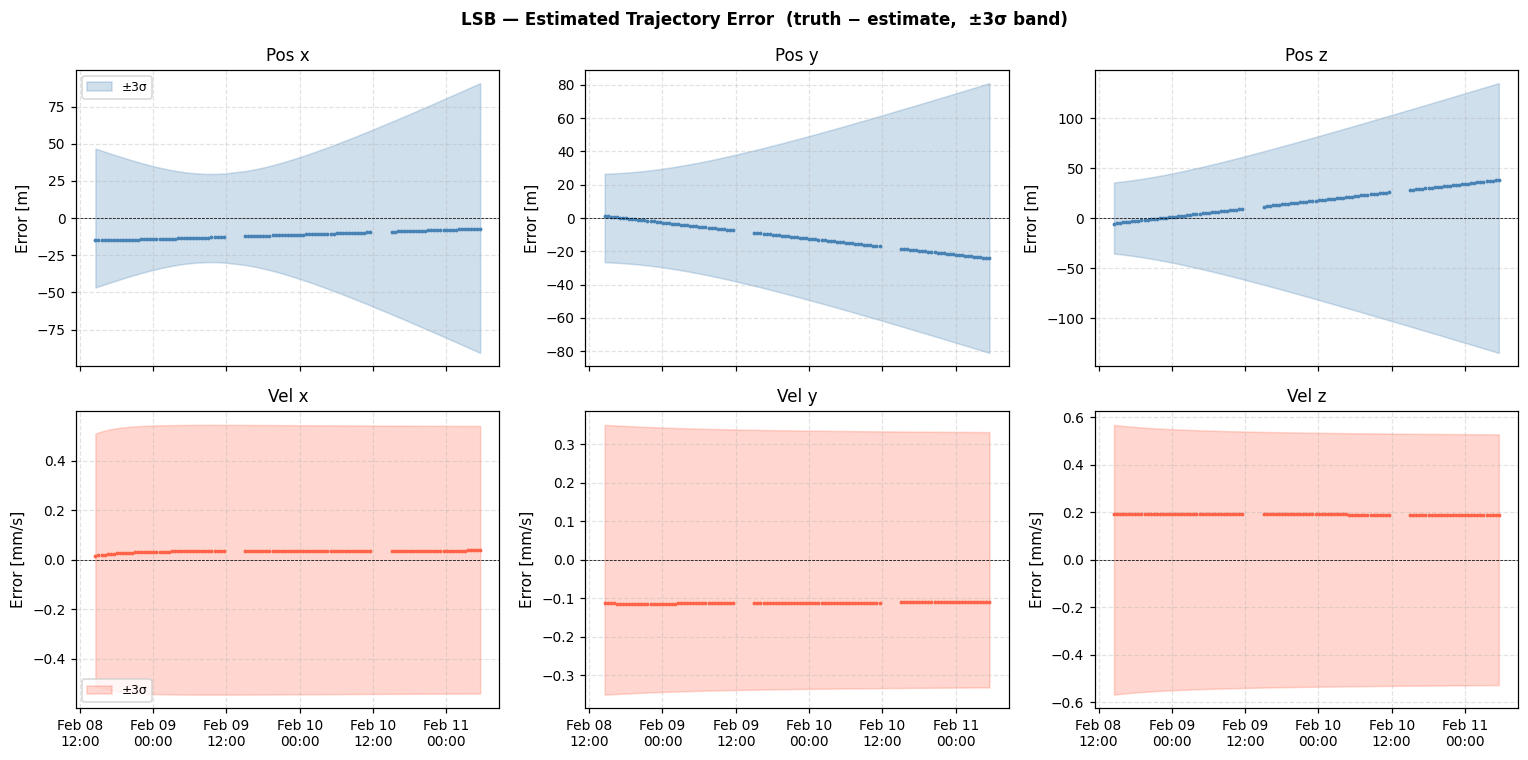

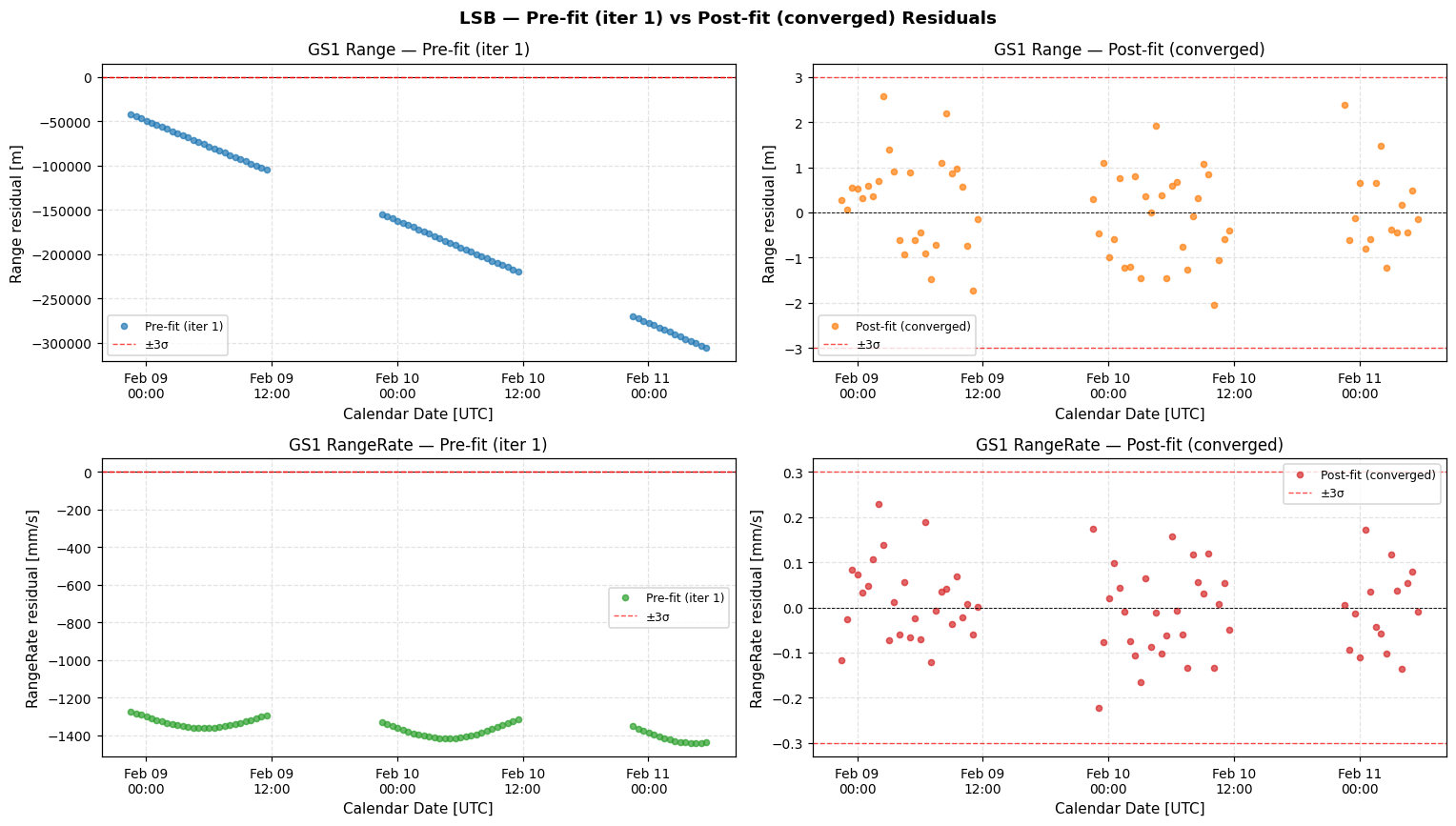

Batch filter — Least-Squares Batch (LSB)

8

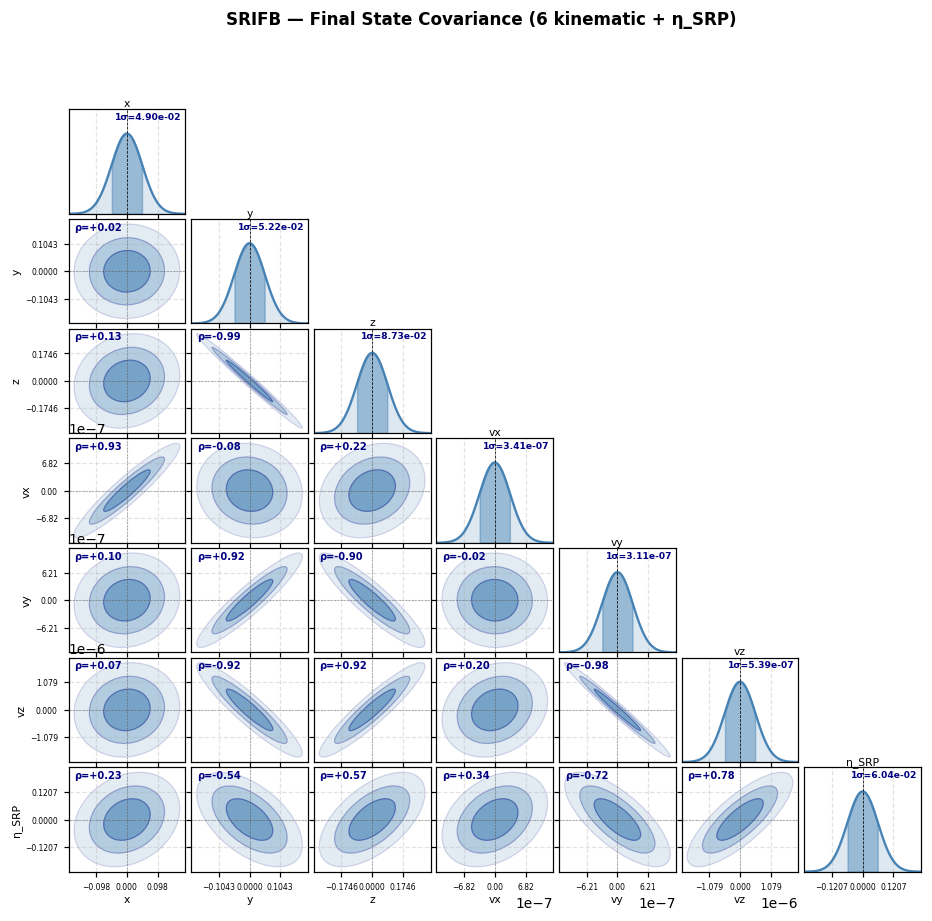

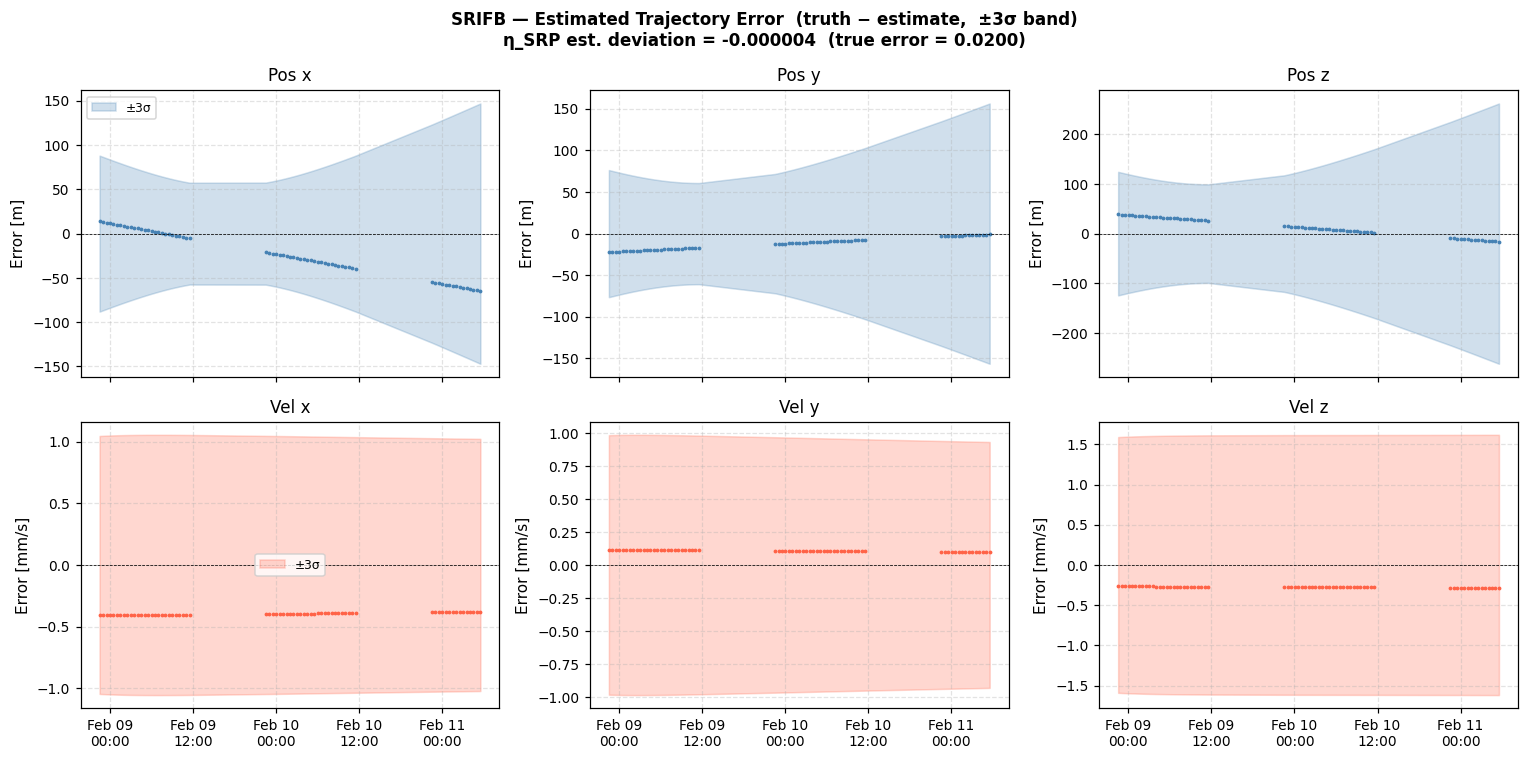

Batch filter — SRIF Batch (SRIFB) + static parameter estimation (η_SRP)

9

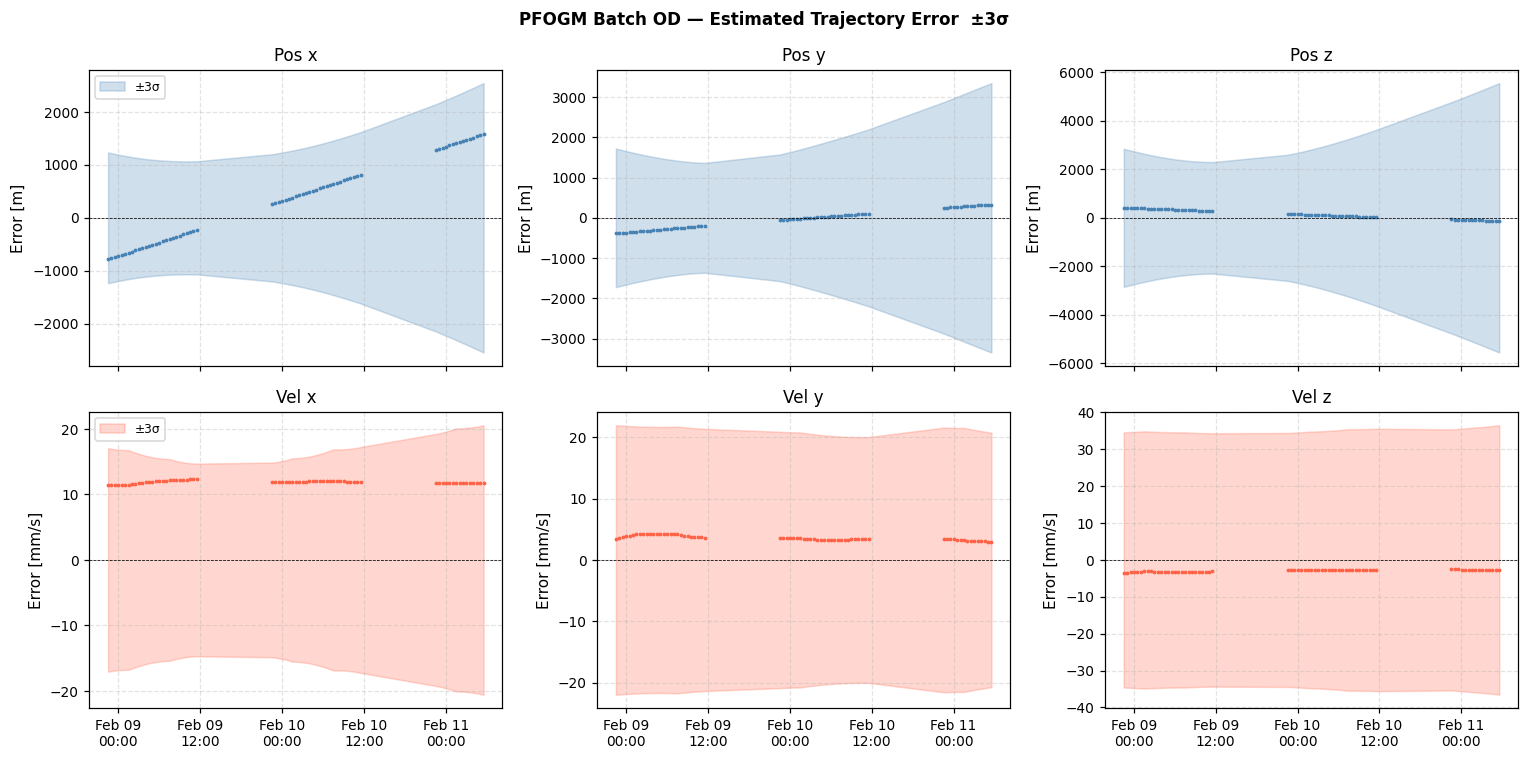

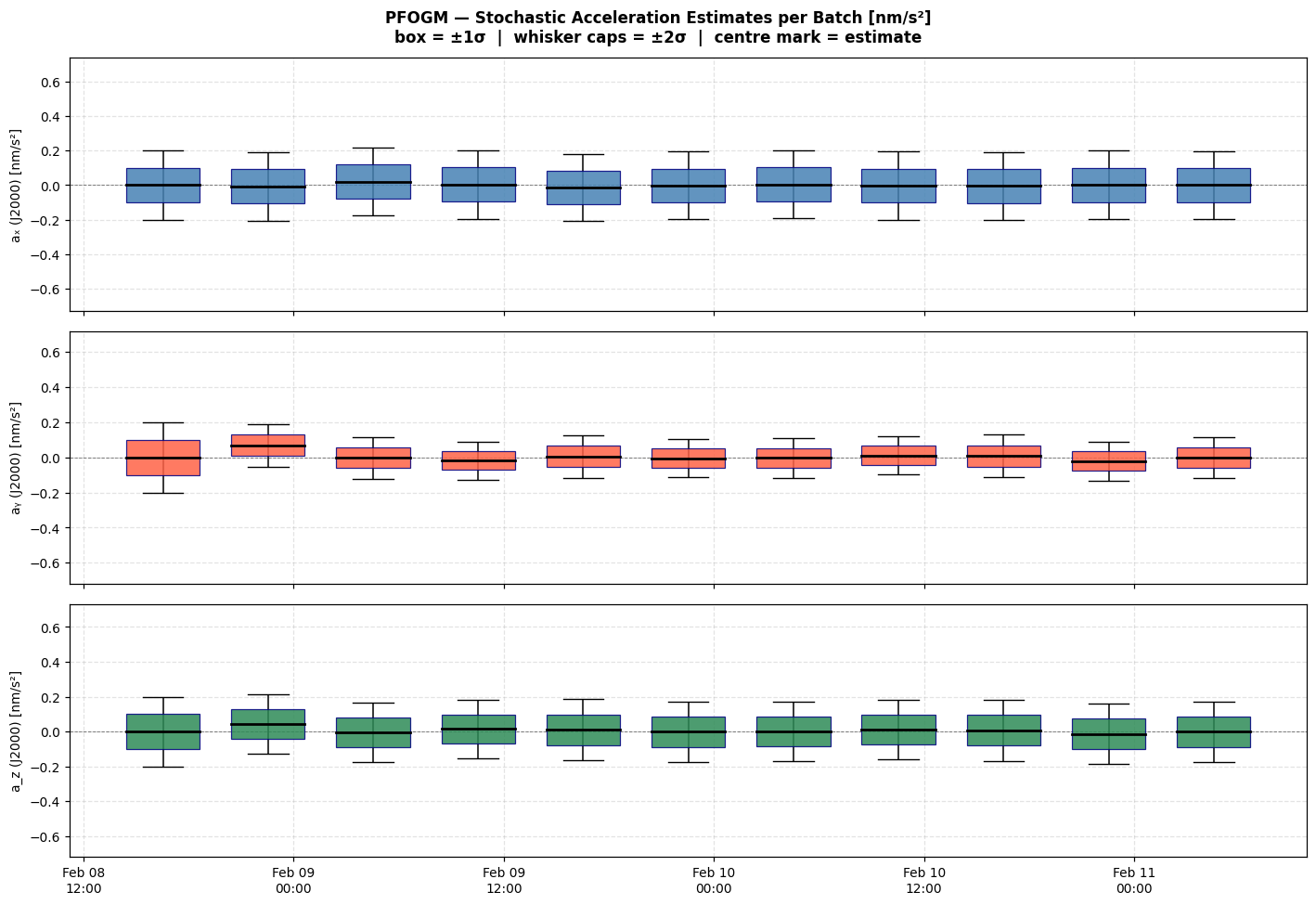

Stochastic acceleration — Piecewise Gauss-Markov (PFOGM) batch OD

10

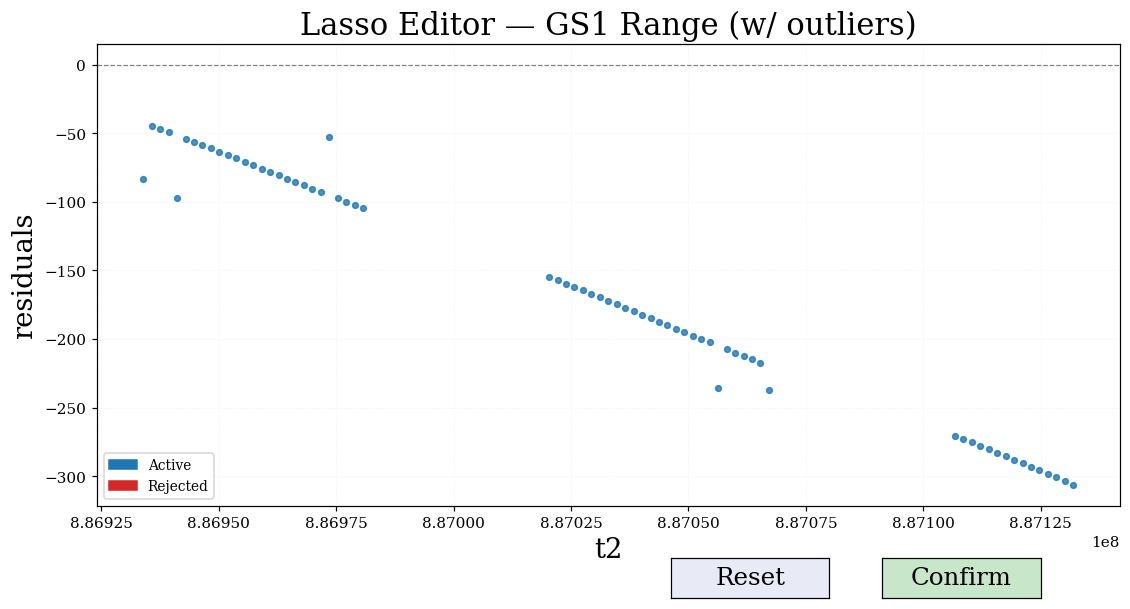

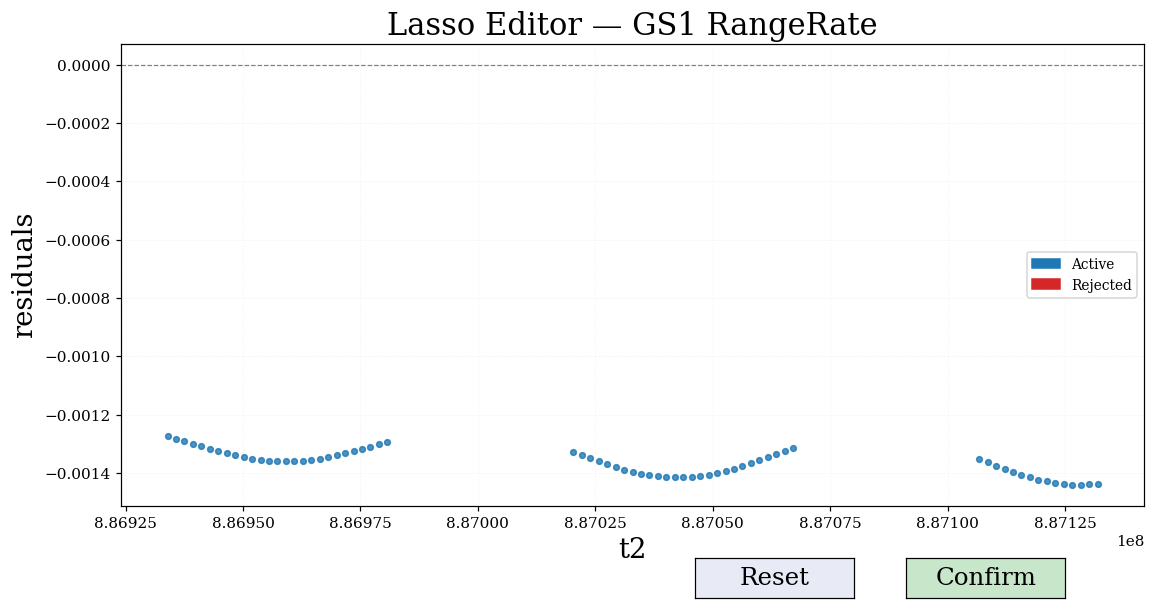

Measurement editing — lasso filter

11

Saving the OD solution

How to run#

Run cells top-to-bottom from the project root directory (scarabaeus/). The first code cell will navigate there automatically if you opened the notebook from tutorials/.

0. Imports and Setup#

We begin by importing Scarabaeus and the standard scientific stack, then establishing the working directory, loading SPICE kernels, and defining the unit/frame system.

Units#

Scarabaeus uses a dimensional unit system. scb.Units.get_units() returns unit objects that can be composed with *, /, and ** operators. Every numerical quantity is wrapped in ArrayWUnits so that unit consistency is enforced throughout the computation.

Frames#

Reference frames are managed via SPICE. J2000 is the standard inertial frame used for heliocentric OD.

SPICE kernels#

The meta-kernel locked_generic.tm loads planet ephemerides (DE440), leap-seconds, planetary constants, and Earth ground-station SPKs (DSS-14, DSS-63, etc.).

[1]:
import os, sys
import numpy as np
import numpy.random as rnd
import matplotlib.pyplot as plt
from pathlib import Path

import scarabaeus as scb
import supplementary as supp

# ── tutorial data and output paths ───────────────────────────────
data = supp.load_data()

tut_result_path  = Path.cwd() / 'tutorial_results/meas_gen/radiometric'
tut_kernels_path = Path(data.mk.path).parent.parent / 'scenario'
tut_result_path.mkdir(parents=True, exist_ok=True)
tut_kernels_path.mkdir(parents=True, exist_ok=True)

# ── units ────────────────────────────────────────────────────────
kg, km, sec = scb.Units.get_units(['kg', 'km', 'sec'])

# ── frames ───────────────────────────────────────────────────────
J2000, ITRF93, ECLIPJ2000, IAUEARTH = scb.Frame.generate_common_frames()
frame = J2000

# ── SPICE kernels ─────────────────────────────────────────────────
scb.SpiceManager.clear_kernels()
scb.SpiceManager.load_kernel_from_mkfile(data.mk.path)
print("Kernels loaded.")
SCB supplementary data out of date.
---------------------------------------------------------------------------
StdinNotImplementedError                  Traceback (most recent call last)
Cell In[1], line 11
      7 import scarabaeus as scb
      8 import supplementary as supp
      9
     10 # ── tutorial data and output paths ───────────────────────────────
---> 11 data = supp.load_data()
     12
     13 tut_result_path  = Path.cwd() / 'tutorial_results/meas_gen/radiometric'
     14 tut_kernels_path = Path(data.mk.path).parent.parent / 'scenario'

File ~/scb_public/scarabaeus/docs/online_documentation/sphinx_files/_collections/tutorials/supplementary/supp_data.py:433, in load_data()
    431 waiting = True
    432 while waiting:
--> 433     response = input("\nDownload and generate missing files? (y/n): ")
    434     match response.strip().lower():
    435         case "y":

File ~/scb_public/scarabaeus/.venv/lib/python3.11/site-packages/ipykernel/kernelbase.py:1514, in Kernel.raw_input(self, prompt)
   1512 if not self._allow_stdin:
   1513     msg = "raw_input was called, but this frontend does not support input requests."
-> 1514     raise StdinNotImplementedError(msg)
   1515 return self._input_request(
   1516     str(prompt),
   1517     self._get_shell_context_var(self._shell_parent_ident),
   1518     self.get_parent("shell"),
   1519     password=False,
   1520 )

StdinNotImplementedError: raw_input was called, but this frontend does not support input requests.

Enhanced Plotting Helpers#

The cells below add calendar-date x-axis versions of the plots above, plus new visualization types: pre/post residual comparisons, state errors with ±3σ covariance bounds, covariance evolution, and corner covariance plots.

Helper functions:

  • et2dt(et_arr) — converts SPICE ET (seconds) to Python datetime objects

  • fmt_cal(ax) — applies AutoDateLocator + DateFormatter for a clean calendar x-axis

  • add_hrs_axis(ax) — adds a secondary top x-axis in hours from t0

  • resid_from_filter(flt, ds) — extracts (t_pre, r_pre, t_post, r_post) arrays

  • corner_cov(P, labels) — lower-triangle corner plot with RdBu_r correlation colouring

[2]:
from datetime import datetime, timedelta
import matplotlib.dates as mdates
import matplotlib.ticker as mticker
from matplotlib import cm
from matplotlib.colors import Normalize

plt.rcParams.update({
    'font.size': 10, 'axes.titlesize': 11, 'axes.labelsize': 10,
    'xtick.labelsize': 9, 'ytick.labelsize': 9, 'legend.fontsize': 8,
    'figure.dpi': 110, 'axes.grid': True, 'grid.alpha': 0.35, 'grid.linestyle': '--',
})
CMAP = cm.tab10
COLORS = [CMAP(i / 10) for i in range(10)]

# reference epoch for the hours-from-t0 secondary axis
t0_et = None  # set after epoch_array is defined (run spacecraft/epoch setup cell first)


def et2dt(et_arr):
    """Convert SPICE ET seconds (TDB from J2000) to list of datetime objects."""
    _J2000 = datetime(2000, 1, 1, 12, 0, 0)
    return [_J2000 + timedelta(seconds=float(t)) for t in np.atleast_1d(et_arr)]


def fmt_cal(ax):
    """Apply calendar-date tick formatting to a matplotlib axis."""
    ax.xaxis.set_major_locator(mdates.AutoDateLocator(minticks=4, maxticks=9))
    ax.xaxis.set_major_formatter(mdates.DateFormatter("%b %d\n%H:%M"))


def add_hrs_axis(ax, t0=None):
    """Add a secondary top x-axis showing hours from t0."""
    t0 = t0 if t0 is not None else t0_et
    from matplotlib.dates import date2num
    t0_num = date2num(et2dt([t0])[0])
    ax2 = ax.secondary_xaxis(
        "top",
        functions=(lambda x: (x - t0_num) * 24, lambda x: x / 24 + t0_num),
    )
    ax2.set_xlabel("Hours from t0 [TDB]", fontsize=8)
    ax2.xaxis.set_major_formatter(mticker.FormatStrFormatter("%.0f h"))
    return ax2


def resid_from_filter(flt_obj, ds_name, iteration=-1):
    """Return (t_pre, r_pre, t_post, r_post) numpy arrays for a dataset name.

    iteration : int
        Which iteration's pre-fit residuals to return.
        0  → first iteration (raw O-C against initial reference).
        -1 → last  iteration (default, same as the converged solution).
    Post-fit residuals always come from the final (converged) iteration.
    """
    # Pre-fits: choose iteration
    if (iteration == 0
            and hasattr(flt_obj, '_solution_history')
            and flt_obj._solution_history):
        sol0 = flt_obj._solution_history[0]
        pre  = (sol0.prefits or {}).get(ds_name, [])
    else:
        pre  = flt_obj.prefit_residuals.get(ds_name, [])
    post = flt_obj.postfit_residuals.get(ds_name, [])
    # Times from the measurement data (unchanged across iterations)
    t_ds = np.array([])
    for ds in flt_obj.measurement_data.datasets:
        if ds.set_name == ds_name:
            t_ds = np.array(ds.data["t2"])
            break
    t_pre  = t_ds[:len(pre)]  if len(pre)  else np.array([])
    r_pre  = np.array([d[0] for d in pre])  if pre  else np.array([])
    t_post = t_ds[:len(post)] if len(post) else np.array([])
    r_post = np.array([d[0] for d in post]) if post else np.array([])
    return t_pre, r_pre, t_post, r_post


def corner_cov(P, labels, title="Covariance Corner Plot", figsize=(10, 9)):
    """
    Corner plot from a covariance matrix.
    Diagonal: 1D Gaussian marginal (dark-shaded ±1σ region).
    Lower triangle: 2D confidence ellipses at 1σ / 2σ / 3σ  (chi2, 2 dof).
    Upper triangle: hidden.
    """
    from matplotlib.patches import Ellipse

    # sqrt(chi2.ppf(conf, df=2)) for 1σ / 2σ / 3σ 2D confidence
    SCALES = [1.5150, 2.4477, 3.4395]
    ALPHAS = [0.55,   0.30,   0.15  ]
    COL, EDG = 'steelblue', 'navy'

    n   = P.shape[0]
    sig = np.sqrt(np.diag(P))

    fig, axes = plt.subplots(n, n, figsize=figsize,
                             gridspec_kw={'hspace': 0.05, 'wspace': 0.05})
    if n == 1:
        axes = np.array([[axes]])
    fig.suptitle(title, fontsize=11, fontweight='bold')

    for i in range(n):
        for j in range(n):
            ax = axes[i, j]
            ax.tick_params(labelsize=5)

            if i == j:
                # ── diagonal: 1D Gaussian marginal ──────────────────────
                s   = sig[i]
                lim = 3.8 * s
                x   = np.linspace(-lim, lim, 300)
                y   = np.exp(-0.5 * (x / s) ** 2)

                ax.plot(x, y, color=COL, lw=1.5)
                ax.fill_between(x, y, alpha=0.18, color=COL)
                ax.fill_between(x[np.abs(x) <= s], y[np.abs(x) <= s],
                                alpha=0.45, color=COL)   # shade ±1σ
                ax.axvline(0, color='k', lw=0.5, ls='--')
                ax.set_xlim(-lim, lim)
                ax.set_ylim(0, 1.30)
                ax.set_yticks([])
                ax.set_xticks([-2*s, 0, 2*s])
                ax.text(0.97, 0.97, f'1σ={s:.2e}',
                        transform=ax.transAxes, fontsize=6,
                        ha='right', va='top', color=EDG, fontweight='bold')
                ax.set_title(labels[i], fontsize=7, pad=2)
                if i < n - 1:
                    ax.set_xticklabels([])

            elif i > j:
                # ── lower triangle: 2D confidence ellipses ───────────────
                P2      = np.array([[P[j,j], P[j,i]], [P[i,j], P[i,i]]])
                ev, evec = np.linalg.eigh(P2)
                ev      = np.maximum(ev, 0.0)
                angle   = np.degrees(np.arctan2(evec[1, 1], evec[0, 1]))

                ax.axhline(0, color='k', lw=0.4, ls='--', alpha=0.4)
                ax.axvline(0, color='k', lw=0.4, ls='--', alpha=0.4)

                for scale, alpha in zip(SCALES, ALPHAS):
                    ax.add_patch(Ellipse(
                        xy=(0, 0),
                        width =2 * scale * np.sqrt(ev[1]),
                        height=2 * scale * np.sqrt(ev[0]),
                        angle =angle,
                        facecolor=COL, edgecolor=EDG,
                        linewidth=0.8, alpha=alpha,
                    ))

                rho = P[i, j] / (sig[i] * sig[j])
                ax.text(0.05, 0.97, f'ρ={rho:+.2f}',
                        transform=ax.transAxes, fontsize=6.5,
                        color=EDG, va='top', fontweight='bold')

                ax.set_xlim(-3.8*sig[j], 3.8*sig[j])
                ax.set_ylim(-3.8*sig[i], 3.8*sig[i])
                ax.set_xticks([-2*sig[j], 0, 2*sig[j]])
                ax.set_yticks([-2*sig[i], 0, 2*sig[i]])

                if i < n - 1:
                    ax.set_xticklabels([])
                if j > 0:
                    ax.set_yticklabels([])
                if j == 0:
                    ax.set_ylabel(labels[i], fontsize=7, labelpad=2)
                if i == n - 1:
                    ax.set_xlabel(labels[j], fontsize=7, labelpad=2)

            else:
                ax.set_visible(False)

    plt.tight_layout()
    return fig


print("Plotting helpers ready.  (t0 will be set after epoch_array is defined)")

Plotting helpers ready.  (t0 will be set after epoch_array is defined)

1. Spacecraft Model#

A Spacecraft object encodes the physical properties of the vehicle:

Property

Description

name

Human-readable label (also used as SPICE body name)

spice_id

NAIF integer ID (negative integers are spacecraft)

tot_mass

Total wet mass [kg]

area

Cross-sectional area for SRP [km²]

ref_coeff

Reflectivity coefficient C_r (dimensionless)

n_plate_model

Optional: N-plate SRP model for attitude-dependent SRP

For the “truth” simulation we define Orbiter and for each filter iteration we create a separate spacecraft object with a slightly different SPICE ID, so that SPICE kernel writes for the reference trajectory do not clash.

[3]:
# ── physical properties ──────────────────────────────────────────
dry_mass  = scb.ArrayWUnits(1500.0, kg)
fuel_mass = scb.ArrayWUnits(500.0,  kg)
area      = scb.ArrayWUnits(1e-6,   km**2)          # ~10 m²
cr        = scb.ArrayWUnits(1.5,    None)            # reflectivity (dimensionless)

# ── truth spacecraft ─────────────────────────────────────────────
Orbiter = scb.Spacecraft(
    name     = 'Orbiter_True',
    spice_id = -1000,
    tot_mass = dry_mass + fuel_mass,
    area     = area,
    ref_coeff= cr,
)

# ── gravitational origin ─────────────────────────────────────────
# Heliocentric orbit: Sun is the primary attracting body.
origin = scb.CelestialBody.from_constants('SUN')

# ── time window ──────────────────────────────────────────────────
# 3-day tracking arc with 30-min timesteps (good balance of coverage vs. cost)
time_0     = scb.SpiceManager.jd2et(2461809.72995654 + 1/3)  # start JD → ET
time_f     = scb.SpiceManager.jd2et(2461809.72995654 + 3)    # end   JD → ET
dt_step    = 30 * 60                                           # 30 minutes [s]
epoch_array = scb.EpochArray(np.arange(time_0, time_f, dt_step), sys='TDB')
epoch_0     = epoch_array[0]
print(f"Arc start : {scb.SpiceManager.et2utc(float(epoch_array[0].times.values))} UTC")
print(f"Arc end   : {scb.SpiceManager.et2utc(float(epoch_array[-1].times.values))} UTC")
print(f"N epochs  : {len(epoch_array)}")

# ── initial state (heliocentric J2000) ────────────────────────────
# Near-Earth heliocentric orbit (position ~1 AU from Sun)
pos_0 = scb.ArrayWFrame(
    np.array([-1.1123095885148e+08,  8.9094345479316e+07,  3.8656500948069e+07]), km, frame)
vel_0 = scb.ArrayWFrame(
    np.array([-20.6936999825159, -16.7800270812616, -6.6437327193572]), km/sec, frame)

print(f"\nInitial position magnitude : {np.linalg.norm(pos_0.quantity.values):.3e} km")
print(f"Initial velocity magnitude : {np.linalg.norm(vel_0.quantity.values):.6f} km/s")
t0_et = float(epoch_array[0].times.values)  # used by plotting helpers

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[3], line 2
      1 # ── physical properties ──────────────────────────────────────────
----> 2 dry_mass  = scb.ArrayWUnits(1500.0, kg)
      3 fuel_mass = scb.ArrayWUnits(500.0,  kg)
      4 area      = scb.ArrayWUnits(1e-6,   km**2)          # ~10 m²
      5 cr        = scb.ArrayWUnits(1.5,    None)            # reflectivity (dimensionless)

NameError: name 'kg' is not defined

2. Dynamics Models Catalogue#

Scarabaeus provides a modular force model system through ForceModelTranslation. You turn on each perturbation with keyword flags. This section documents every available option.


2.1 Point Mass Gravity (Keplerian)#

The simplest model: the spacecraft is attracted only by the central body (Sun in our case). No keyword needed — this is always included.

fm = scb.ForceModelTranslation(primary_body=sc)

When to use: quick propagation checks, very short arcs, or when perturbations are negligible.


2.2 Third-Body Gravity#

Gravitational pull from other solar-system bodies (planets, Moon, etc.). Pass a list of CelestialBody objects; use .barycenter() for a system barycenter.

fm = scb.ForceModelTranslation(primary_body=sc,
                               third_bodies=[scb.CelestialBody.from_constants('EARTH'),
                                             scb.CelestialBody.from_constants('JUPITER').barycenter()])

Effect: at 1 AU from the Sun, Earth and Jupiter perturbations are on the order of 10⁻⁶ km/s² over a 3-day arc — significant for precision OD.


2.3 Cannonball Solar Radiation Pressure (SRP)#

Isotropic SRP model. Uses area and ref_coeff from the Spacecraft object. The SRP scale factor η_SRP can be estimated as a static parameter in the OD state.

fm = scb.ForceModelTranslation(primary_body=sc, cannonball_SRP=True)

When to use: missions without attitude data, or as a first-order SRP estimate.


2.4 N-Plate SRP#

Attitude-dependent SRP computed face-by-face from a plate configuration file. Requires a CK (attitude) kernel and an n-plate config JSON.

fm = scb.ForceModelTranslation(primary_body=sc, nplate_SRP=True)

When to use: high-fidelity SRP for spacecraft with known CK.


2.5 Spherical Harmonics Gravity#

Non-spherical gravity field from a Stokes coefficients file. Used for close-proximity or planetary orbits.

fm = scb.ForceModelTranslation(
    primary_body     = sc,
    sph_harm         = True,
    sph_harm_order   = 8,                          # degree & order
    sph_harm_cs_file = 'data/dynamic_setup/sph_coefficients/Earth_100.json',
    sph_harm_body    = scb.EARTH,
    sph_harm_norm_flag = True,                     # normalized coefficients
)

When to use: Earth orbits, asteroid proximity operations.


2.7 First-Order Gauss-Markov (FOGM) Stochastic Acceleration#

An exponentially correlated random acceleration — ideal for modelling uncharacterised non-gravitational forces.

fm = scb.ForceModelTranslation(
    primary_body           = sc,
    first_order_gauss_markov = True,
    fogm_beta              = np.array([1/3600, 1/3600, 1/3600]),  # [1/s] correlation = 1 hr
)
# State must include the FOGM acceleration as a *dynamic* parameter:
# .param('a_fogm', sc, a0_vec3, dynamics='dynamic')

2.8 Piecewise First-Order Gauss-Markov (PFOGM)#

Like FOGM but the stochastic acceleration is defined within each batch interval. Useful for batch OD where you want piece-wise unmodelled force estimation.

batch_length = 6 * 3600   # 6-hour batches
n_batches    = int(np.ceil((time_f - time_0) / batch_length))

fm = scb.ForceModelTranslation(
    primary_body                  = sc,
    piecewise_first_order_gauss_markov = True,
    pfogm_batch_length            = batch_length,
    pfogm_n_batches               = n_batches,
    pfogm_beta                    = np.array([1/3600, 1/3600, 1/3600]),
    t0                            = epoch_array[0],
)
# State must include: .param('a_pfogm', sc, a0_vec_3n, dynamics='dynamic')
# where a0_vec_3n has 3 * n_batches elements.

3. Dynamics Tuning#

Dynamics tuning means choosing which force models to include and verifying their fidelity against an independent truth (SPICE ephemerides or higher-fidelity propagation).

Workflow#

  1. Propagate the trajectory using both model A (low fidelity) and model B (high fidelity).

  2. Compute the trajectory differences over the estimation arc.

  3. Compare these differences against the expected measurement noise or OD accuracy level.

  4. If the discrepancies are comparable to or larger than the observable noise floor, model A is likely insufficient.

Process noise tuning#

When using sequential filters (discussed in the next notebook), the continuous-time process noise covariance Q (or equivalently its power spectral density, PSD) must be carefully tuned:

  • Too large Q → the filter becomes noisy, over-fits the measurements, and produces inflated covariances.

  • Too small Q → the filter becomes overconfident, potentially inconsistent, and may diverge as unmodelled accelerations accumulate over time.

[4]:
# ── compare Keplerian vs 3-body vs full model ────────────────────

third_bodies_all = [*scb.CelestialBody.from_constants(['MERCURY', 'VENUS', 'EARTH', 'MARS']), scb.CelestialBody.from_constants('JUPITER').barycenter()]

def propagate_model(sc_body, pos, vel, epoch_arr, **fm_kwargs):
    state_def = scb.StateDefinition.from_components([
        ('position', 3, 'estimated', 'dynamic', sc_body, pos),
        ('velocity', 3, 'estimated', 'dynamic', sc_body, vel),
    ])
    sv = scb.StateArray(epoch=epoch_arr[0], origin=origin, state=state_def)
    fm = scb.ForceModelTranslation(primary_body=sc_body, **fm_kwargs)
    prop = scb.Propagator(primary_body=sc_body, state_vector=sv,
                          tspan=epoch_arr, force_models=fm)
    prop.propagate()
    pos_arr = prop.propagated_state_array.values_array[('position', sc_body.spice_id)][0]
    return pos_arr   # shape (N, 3)

# Use a shorter window for tuning comparison (faster)
tune_end    = scb.SpiceManager.jd2et(2461809.72995654 + 1/3 + 1)  # 1-day arc
epoch_tune  = scb.EpochArray(np.arange(time_0, tune_end, dt_step), sys='TDB')

# Keplerian helper SC (unique SPICE ID to avoid conflicts)
sc_kep  = scb.Spacecraft('tune_kep',  -1090, dry_mass+fuel_mass, area, cr)
sc_3b   = scb.Spacecraft('tune_3b',   -1091, dry_mass+fuel_mass, area, cr)
sc_full = scb.Spacecraft('tune_full', -1092, dry_mass+fuel_mass, area, cr)

print("Propagating Keplerian ...")
pos_kep  = propagate_model(sc_kep,  pos_0, vel_0, epoch_tune)
print("Propagating 3-body ...")
pos_3b   = propagate_model(sc_3b,   pos_0, vel_0, epoch_tune,
                            third_bodies=scb.CelestialBody.from_constants(['EARTH', 'VENUS']))
print("Propagating 3-body + cannonball SRP ...")
pos_full = propagate_model(sc_full, pos_0, vel_0, epoch_tune,
                            third_bodies=scb.CelestialBody.from_constants(['EARTH', 'VENUS']), cannonball_SRP=True)

t_hr = (epoch_tune.times.values - epoch_tune.times.values[0]) / 3600

err_3b   = np.linalg.norm(pos_3b   - pos_kep,  axis=1)   # 3-body vs Keplerian
err_full = np.linalg.norm(pos_full - pos_3b,   axis=1)   # SRP effect on top of 3-body

fig, axes = plt.subplots(2, 1, figsize=(10, 7), sharex=True)
axes[0].semilogy(t_hr, err_3b,   'b-', lw=1.5, label='3-body − Keplerian')
axes[0].set_ylabel('Position diff [km]')
axes[0].set_title('Dynamics Tuning: effect of each force model (1-day arc)')
axes[0].legend(); axes[0].grid(True, alpha=0.4)
axes[1].semilogy(t_hr, err_full, 'r-', lw=1.5, label='(3-body+SRP) − 3-body')
axes[1].set_ylabel('Position diff [km]')
axes[1].set_xlabel('Time [hr]')
axes[1].legend(); axes[1].grid(True, alpha=0.4)
plt.tight_layout()
plt.show()
print(f"\nMax position difference (3-body vs Keplerian)  : {err_3b.max():.4f} km")
print(f"Max position difference (SRP effect on 3-body) : {err_full.max():.6f} km")

---------------------------------------------------------------------------
SpiceMISSINGTIMEINFO                      Traceback (most recent call last)
Cell In[4], line 19
     15     pos_arr = prop.propagated_state_array.values_array[('position', sc_body.spice_id)][0]
     16     return pos_arr   # shape (N, 3)
     17
     18 # Use a shorter window for tuning comparison (faster)
---> 19 tune_end    = scb.SpiceManager.jd2et(2461809.72995654 + 1/3 + 1)  # 1-day arc
     20 epoch_tune  = scb.EpochArray(np.arange(time_0, tune_end, dt_step), sys='TDB')
     21
     22 # Keplerian helper SC (unique SPICE ID to avoid conflicts)

File ~/scb_public/scarabaeus/src/scarabaeus/timeAndFrame/SpiceManager.py:2399, in SpiceManager.jd2et(jd)
   2380 @staticmethod
   2381 def jd2et(jd: float) -> float:
   2382     """Convert a Julian Date (JDTDB) to ephemeris time.
   2383
   2384     Parameters
   (...)   2397     the drift between JD and ET.
   2398     """
-> 2399     var1 = spice.unitim(jd, "JDTDB", "TDB")
   2400     var2 = spice.deltet(var1, "ET")
   2401     return var1 + var2

File ~/scb_public/scarabaeus/.venv/lib/python3.11/site-packages/spiceypy/spiceypy.py:161, in spice_error_check.<locals>.with_errcheck(*args, **kwargs)
    157             res = f(*args, **kwargs)
    158             check_for_spice_error(f)
    159             return res
    160         except BaseException:
--> 161             raise

File ~/scb_public/scarabaeus/.venv/lib/python3.11/site-packages/spiceypy/spiceypy.py:141, in check_for_spice_error(f)
    137         explain = getmsg("EXPLAIN", 100).strip()
    138         long = getmsg("LONG", 1841).strip()
    139         traceback = qcktrc(200)
    140         reset()
--> 141         raise dynamically_instantiate_spiceyerror(
    142             short=short, explain=explain, long=long, traceback=traceback
    143         )

SpiceMISSINGTIMEINFO:
================================================================================

Toolkit version: CSPICE_N0067

SPICE(MISSINGTIMEINFO) --

The following variables, needed to convert between the input uniform time scales, were not found in the kernel pool: DELTET/DELTA_T_A, DELTET/K, DELTET/EB, DELTET/M. Your program may have failed to load a leapseconds kernel. Other possible causes of this problem include loading an invalid leapseconds kernel---one that lacks an initial \begindata marker or final newline character, or is otherwise corrupted---or deleting previously loaded kernel pool variables via calls to routines that clear the kernel pool.

unitim_c --> UNITIM

================================================================================

4. True Trajectory Generation#

We propagate the true trajectory using the highest-fidelity force model available. This trajectory is saved as a SPICE SPK kernel so it can be queried later for ground truth comparisons and measurement generation.

The Trajectory object wraps the propagated state array and provides:

  • write_to_spk(path) — write binary SPK kernel

  • start_epoch, end_epoch — arc boundaries

In real operations the “truth” is unknown; here we simulate it to validate the OD solution.

[5]:
# ── force model for truth propagation ────────────────────────────
# Use 3-body gravity + cannonball SRP as the "truth" dynamics.
# The OD filter will use the same model (ideal case) — in Section 8 we perturb η_SRP.
fm_truth = scb.ForceModelTranslation(
    primary_body  = Orbiter,
    third_bodies  = scb.CelestialBody.from_constants(['MERCURY', 'VENUS', 'EARTH']),
    cannonball_SRP= True,
)

state_0_truth = scb.StateDefinition.from_components([
    ('position', 3, 'estimated', 'dynamic', Orbiter, pos_0),
    ('velocity', 3, 'estimated', 'dynamic', Orbiter, vel_0),
])
sv_truth = scb.StateArray(epoch=epoch_0, origin=origin, state=state_0_truth)

prop_truth = scb.Propagator(
    primary_body = Orbiter,
    state_vector = sv_truth,
    tspan        = epoch_array,
    force_models = fm_truth,
)
print("Propagating true trajectory ...")
prop_truth.propagate()
state_prop_truth = prop_truth.propagated_state_array

# ── save as SPICE SPK ─────────────────────────────────────────────
true_spk = str(tut_kernels_path / 'batch_orbiter_true.bsp')
if os.path.isfile(true_spk):
    os.remove(true_spk)
orbiter_traj_true = scb.Trajectory(state_array=state_prop_truth)
orbiter_traj_true.write_to_spk(true_spk)
print(f"True trajectory saved to: {true_spk}")

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[5], line 5
      1 # ── force model for truth propagation ────────────────────────────
      2 # Use 3-body gravity + cannonball SRP as the "truth" dynamics.
      3 # The OD filter will use the same model (ideal case) — in Section 8 we perturb η_SRP.
      4 fm_truth = scb.ForceModelTranslation(
----> 5     primary_body  = Orbiter,
      6     third_bodies  = scb.CelestialBody.from_constants(['MERCURY', 'VENUS', 'EARTH']),
      7     cannonball_SRP= True,
      8 )

NameError: name 'Orbiter' is not defined

5. Measurement Generation#

Scarabaeus models all standard radiometric and optical navigation measurement types. This section shows how to set up each model, simulate noisy observations on the true trajectory, save them to JSON files, and reload them for OD use. For real mission measurements, refer to the OSIRIS–REx notebooks.

Measurement generation workflow#

Spacecraft trajectory (true SPK)
        │
        ▼
write_observed_measurements(target, epoch_array, noisy=True, file_name=stem)
        │   adds Gaussian noise with the specified sigma
        ▼
JSON file in data/measurements/radiometric/
        │
        ▼
observed_measurements(file_name, meas_name, units) → (epoch_array, times_sec, values)

Available measurement types#

Class

Observable

Typical sigma

RangeIdeal

Two-way range [km]

1 m (1e-3 km)

RangeRateIdeal

Two-way range-rate [km/s]

0.1 mm/s (1e-4 km/s)

AngularIdeal

RA/DEC [rad]

~10 μrad

CentroidingIdeal

Pixel centroid [pixel]

0.5–2 pixel

SequentialRangingReal

Sequential ranging (RU)

see DSN calibration

DopplerReal

Doppler (DSN processing)

see DSN calibration

[6]:
# ─────────────────────────────────────────────────────────────────
# 5.1  Ground-station sensors
# ─────────────────────────────────────────────────────────────────
# GroundStation wraps a SPICE-body ground station.
# DSS-14 (Goldstone, CA) and DSS-63 (Madrid) are built into the generic kernel.
GS1 = scb.GroundStation('DSS-14')
GS2 = scb.GroundStation('DSS-63')

# ─────────────────────────────────────────────────────────────────
# 5.2  Measurement noise levels
# ─────────────────────────────────────────────────────────────────
range_sigma     = scb.ArrayWUnits(1e-3,  km)           # 1 m two-way range
rangerate_sigma = scb.ArrayWUnits(1e-7,  km/sec)       # 0.1 mm/s range-rate

# ─────────────────────────────────────────────────────────────────
# 5.3  Instantiate all measurement models
# ─────────────────────────────────────────────────────────────────

# ── Radiometric: Range ───────────────────────────────────────────
Range_GS1     = scb.RangeIdeal('GS1 Range',     GS1,  sigma=range_sigma)
Range_GS2     = scb.RangeIdeal('GS2 Range',     GS2,  sigma=range_sigma)

# ── Radiometric: Range-Rate ──────────────────────────────────────
RangeRate_GS1 = scb.RangeRateIdeal('GS1 RangeRate', GS1, sigma=rangerate_sigma)
RangeRate_GS2 = scb.RangeRateIdeal('GS2 RangeRate', GS2, sigma=rangerate_sigma)


print("All measurement models instantiated.")
print(f"  Range_GS1     : {Range_GS1.name}")
print(f"  RangeRate_GS1 : {RangeRate_GS1.name}")

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[6], line 12
      8
      9 # ─────────────────────────────────────────────────────────────────
     10 # 5.2  Measurement noise levels
     11 # ─────────────────────────────────────────────────────────────────
---> 12 range_sigma     = scb.ArrayWUnits(1e-3,  km)           # 1 m two-way range
     13 rangerate_sigma = scb.ArrayWUnits(1e-7,  km/sec)       # 0.1 mm/s range-rate
     14
     15 # ─────────────────────────────────────────────────────────────────

NameError: name 'km' is not defined
[7]:
# ─────────────────────────────────────────────────────────────────
# 5.4  Generate and save observed (noisy) measurements
# ─────────────────────────────────────────────────────────────────
# check_visibility=True filters out epochs where the spacecraft
# is below the ground station elevation mask (default 10°), producing
# realistic contact windows instead of continuous coverage.

for model, stem in [
    (Range_GS1,      'batch_range_GS1'),
    (RangeRate_GS1,  'batch_rangerate_GS1'),
    (Range_GS2,      'batch_range_GS2'),
    (RangeRate_GS2,  'batch_rangerate_GS2'),
]:
    model.write_observed_measurements(
        target               = Orbiter,
        epoch_array          = epoch_array,
        noisy                = True,
        file_name            = stem,
        check_visibility     = True,
        elevation_mask       = 10.0,
        folder_path_override = str(tut_result_path),
    )
    print(f"Written: {tut_result_path / stem}.json")

# ─────────────────────────────────────────────────────────────────
# 5.5  Load back the primary measurements (GS1 Range + RangeRate)
# ─────────────────────────────────────────────────────────────────
obs_range_GS1 = Range_GS1.observed_measurements(
    file_name = str(tut_result_path / 'batch_range_GS1.json'),
    meas_name = 'meas_ideal',
    units     = km,
)
obs_rr_GS1 = RangeRate_GS1.observed_measurements(
    file_name = str(tut_result_path / 'batch_rangerate_GS1.json'),
    meas_name = 'meas_ideal',
    units     = km/sec,
)
obs_range_GS2 = Range_GS2.observed_measurements(
    file_name = str(tut_result_path / 'batch_range_GS2.json'),
    meas_name = 'meas_ideal',
    units     = km,
)
obs_rr_GS2 = RangeRate_GS2.observed_measurements(
    file_name = str(tut_result_path / 'batch_rangerate_GS2.json'),
    meas_name = 'meas_ideal',
    units     = km/sec,
)

# Tuple layout: (epoch_array, times_sec, values_array)
print(f"\nGS1 Range     — {len(obs_range_GS1[2].quantity.values)} measurements")
print(f"GS1 RangeRate — {len(obs_rr_GS1[2].quantity.values)} measurements")
print(f"GS2 Range     — {len(obs_range_GS2[2].quantity.values)} measurements")
print(f"GS2 RangeRate — {len(obs_rr_GS2[2].quantity.values)} measurements")

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[7], line 9
      5 # is below the ground station elevation mask (default 10°), producing
      6 # realistic contact windows instead of continuous coverage.
      7
      8 for model, stem in [
----> 9     (Range_GS1,      'batch_range_GS1'),
     10     (RangeRate_GS1,  'batch_rangerate_GS1'),
     11     (Range_GS2,      'batch_range_GS2'),
     12     (RangeRate_GS2,  'batch_rangerate_GS2'),

NameError: name 'Range_GS1' is not defined
[8]:
# ─────────────────────────────────────────────────────────────────
# 5.6  Plot the simulated measurements
# ─────────────────────────────────────────────────────────────────
# Use the EpochArray (obs[0]) for absolute ET → calendar dates so all panels
# share the same time axis and contact windows appear as distinct clusters.

def meas_dts(obs_tuple):
    """Return datetime list from a measurement tuple's EpochArray."""
    _J2000 = datetime(2000, 1, 1, 12, 0, 0)
    et_vals = np.atleast_1d(obs_tuple[0].times.values).astype(float)
    return [_J2000 + timedelta(seconds=float(t)) for t in et_vals]

dts_rng_GS1 = meas_dts(obs_range_GS1)
dts_rng_GS2 = meas_dts(obs_range_GS2)
dts_rr_GS1  = meas_dts(obs_rr_GS1)
dts_rr_GS2  = meas_dts(obs_rr_GS2)

fig, axes = plt.subplots(2, 2, figsize=(14, 8), sharey='row')

# Range GS1
axes[0,0].plot(dts_rng_GS1, obs_range_GS1[2].quantity.values, '.', ms=4, label='DSS-14 (GS1)')
axes[0,0].set_title('Two-Way Range — DSS-14'); axes[0,0].set_ylabel('Range [km]')
axes[0,0].legend(); fmt_cal(axes[0,0])

# Range GS2
axes[0,1].plot(dts_rng_GS2, obs_range_GS2[2].quantity.values, '.', ms=4, color='C1', label='DSS-63 (GS2)')
axes[0,1].set_title('Two-Way Range — DSS-63'); axes[0,1].set_ylabel('Range [km]')
axes[0,1].legend(); fmt_cal(axes[0,1])

# RangeRate GS1
axes[1,0].plot(dts_rr_GS1, obs_rr_GS1[2].quantity.values, '.', ms=4, label='DSS-14 (GS1)')
axes[1,0].set_title('Range-Rate — DSS-14'); axes[1,0].set_ylabel('Range-rate [km/s]')
axes[1,0].legend(); fmt_cal(axes[1,0])

# RangeRate GS2
axes[1,1].plot(dts_rr_GS2, obs_rr_GS2[2].quantity.values, '.', ms=4, color='C1', label='DSS-63 (GS2)')
axes[1,1].set_title('Range-Rate — DSS-63'); axes[1,1].set_ylabel('Range-rate [km/s]')
axes[1,1].legend(); fmt_cal(axes[1,1])

n_r1  = len(obs_range_GS1[2].quantity.values)
n_r2  = len(obs_range_GS2[2].quantity.values)
n_rr1 = len(obs_rr_GS1[2].quantity.values)
n_rr2 = len(obs_rr_GS2[2].quantity.values)
plt.suptitle(
    f'Simulated Radiometric Measurements — Batch OD Demo\n'
    f'(Range: {n_r1} GS1 + {n_r2} GS2 pts;  Range-Rate: {n_rr1} GS1 + {n_rr2} GS2 pts)',
    fontweight='bold', fontsize=11)
plt.tight_layout()
plt.show()

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[8], line 13
      9     _J2000 = datetime(2000, 1, 1, 12, 0, 0)
     10     et_vals = np.atleast_1d(obs_tuple[0].times.values).astype(float)
     11     return [_J2000 + timedelta(seconds=float(t)) for t in et_vals]
     12
---> 13 dts_rng_GS1 = meas_dts(obs_range_GS1)
     14 dts_rng_GS2 = meas_dts(obs_range_GS2)
     15 dts_rr_GS1  = meas_dts(obs_rr_GS1)
     16 dts_rr_GS2  = meas_dts(obs_rr_GS2)

NameError: name 'obs_range_GS1' is not defined

6. Reference Trajectory (Perturbed Initial Conditions)#

In real OD we do not know the true initial state; we start from a reference trajectory obtained from a previous solution or orbit determination arc, then apply the filter to correct it.

Here we simulate this by perturbing the true initial state:

  • Position: ±1 km error (typical for deep-space missions after several days without tracking)

  • Velocity: ±1 mm/s error

The filter’s job is to recover the deviation δx = x_true − x_ref at each measurement epoch.

Each filter iteration uses a new Spacecraft object (unique SPICE ID) so that its SPK kernel does not overwrite the truth or previous iteration’s kernel.

Covariance initialisation#

The initial covariance matrix P₀ encodes our uncertainty in the reference initial state. Rule of thumb: set the 1-σ values to roughly the size of the perturbation.

[9]:
# ── perturb initial state ─────────────────────────────────────────
delta_pos_km  = np.array([1.0, 1.0, 1.0])       # 1 km position error in each axis
delta_vel_kms = np.array([1e-3, 1e-3, 1e-3])    # 1 mm/s velocity error in each axis

delta_pos = scb.ArrayWUnits(delta_pos_km,  km)
delta_vel = scb.ArrayWUnits(delta_vel_kms, km/sec)

pos_ref = scb.ArrayWFrame(pos_0.quantity + delta_pos, frame)
vel_ref = scb.ArrayWFrame(vel_0.quantity + delta_vel, frame)

# ── reference spacecraft (iteration 1) ───────────────────────────
Orbiter_ref = scb.Spacecraft('Orbiter_Ref_it1', -1001,
                              dry_mass+fuel_mass, area, cr)

state_ref = scb.StateDefinition.from_components([
    ('position', 3, 'estimated', 'dynamic', Orbiter_ref, pos_ref),
    ('velocity', 3, 'estimated', 'dynamic', Orbiter_ref, vel_ref),
])
sv_ref = scb.StateArray(epoch=epoch_0, origin=origin, state=state_ref)

# ── propagate reference with same force model as truth ───────────
fm_ref = scb.ForceModelTranslation(
    primary_body   = Orbiter_ref,
    third_bodies   = scb.CelestialBody.from_constants(['MERCURY', 'VENUS', 'EARTH']),
    cannonball_SRP = True,
)
prop_ref = scb.Propagator(
    primary_body = Orbiter_ref,
    state_vector = sv_ref,
    tspan        = epoch_array,
    force_models = fm_ref,
)

# ── initial covariance P₀ ────────────────────────────────────────
# Set 1-σ to ~3× the perturbation (conservative initialisation)
pos_sig = scb.ArrayWUnits(3 * delta_pos_km[0], km)
vel_sig = scb.ArrayWUnits(3 * delta_vel_kms[0], km/sec)
state_cov = scb.CovarianceMatrix(
    [pos_sig, pos_sig, pos_sig, vel_sig, vel_sig, vel_sig],
    epoch_array[1],
    from_list=True,
)
print("Reference trajectory and P₀ ready.")
print(f"  Position 1-σ : {3*delta_pos_km[0]:.1f} km")
print(f"  Velocity 1-σ : {3*delta_vel_kms[0]:.4f} km/s")

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[9], line 5
      1 # ── perturb initial state ─────────────────────────────────────────
      2 delta_pos_km  = np.array([1.0, 1.0, 1.0])       # 1 km position error in each axis
      3 delta_vel_kms = np.array([1e-3, 1e-3, 1e-3])    # 1 mm/s velocity error in each axis
      4
----> 5 delta_pos = scb.ArrayWUnits(delta_pos_km,  km)
      6 delta_vel = scb.ArrayWUnits(delta_vel_kms, km/sec)
      7
      8 pos_ref = scb.ArrayWFrame(pos_0.quantity + delta_pos, frame)

NameError: name 'km' is not defined

7. Batch Filter: Least-Squares Batch (LSB)#

Theory#

The Least-Squares Batch (LSB) filter solves the normal equations

\[\mathbf{x}^* = \left(\mathbf{H}^T \mathbf{W} \mathbf{H} + \mathbf{P}_0^{-1}\right)^{-1} \mathbf{H}^T \mathbf{W} \mathbf{y}\]

where H is the measurement sensitivity matrix, W = R⁻¹ is the measurement weight matrix, y are the pre-fit residuals, and P₀ is the initial state covariance (acts as a Tikhonov regulariser).

The solution is computed iteratively: after each batch solve, the reference trajectory is updated and the process repeats until

\[\|\delta x\| < \texttt{convergence\_threshold}\]

or until the maximum number of iterations is reached.

Measurement specification#

MeasurementSpec.many() or MeasurementSpec.from_dict() combine multiple measurement datasets into the single structure the filter expects.

FilterSettings#

FilterSettings gathers all configuration:

  • initial_covariance — P₀

  • process_noise — ProcessNoiseSettings (batch filters: usually not used; sequential: SNC/DMC)

  • output — OutputSettings for controlling what is saved

[10]:
# ── measurement list ────────────────────────────────────────────
meas_list_lsb = scb.MeasurementSpec.many(
    scb.MeasurementSpec(model=Range_GS1,     observed_meas=obs_range_GS1,
                        dataset_name='GS1 Range'),
    scb.MeasurementSpec(model=RangeRate_GS1, observed_meas=obs_rr_GS1,
                        dataset_name='GS1 RangeRate'),
    scb.MeasurementSpec(model=Range_GS2,     observed_meas=obs_range_GS2,
                        dataset_name='GS2 Range'),
    scb.MeasurementSpec(model=RangeRate_GS2, observed_meas=obs_rr_GS2,
                        dataset_name='GS2 RangeRate'),
)

# ── filter settings ──────────────────────────────────────────────
settings_lsb = scb.FilterSettings(
    initial_covariance = state_cov,
    output = scb.OutputSettings(
        metadata = {'version': '1.0', 'filter': 'LSB', 'arc': '3-day'},
    ),
)

# ── instantiate LSB filter ───────────────────────────────────────
# LSB = Least-Squares Batch.
# traj_name: SPK filename for the reference trajectory of this iteration.
ref_spk_lsb = tut_kernels_path / 'batch_orbiter_ref_lsb.bsp'
if ref_spk_lsb.exists(): ref_spk_lsb.unlink()

lsb = scb.LSB(
    propagator   = prop_ref,
    settings     = settings_lsb,
    measurements = meas_list_lsb,
    traj_name    = 'batch_orbiter_ref_lsb.bsp',
    traj_dir     = str(tut_kernels_path),
)

# ── run the batch solver ─────────────────────────────────────────
print("Running LSB batch filter ...")
solution_lsb, n_iters_lsb, converged_lsb = lsb.fit(
    max_iterations        = 10,
    convergence_threshold = 1e-6,
    verbose               = True,
    traj_name             = 'batch_orbiter_ref.bsp',
    traj_dir              = str(tut_kernels_path),
)
print(f"\nConverged: {converged_lsb}  after {n_iters_lsb} iteration(s)")

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[10], line 3
      1 # ── measurement list ────────────────────────────────────────────
      2 meas_list_lsb = scb.MeasurementSpec.many(
----> 3     scb.MeasurementSpec(model=Range_GS1,     observed_meas=obs_range_GS1,
      4                         dataset_name='GS1 Range'),
      5     scb.MeasurementSpec(model=RangeRate_GS1, observed_meas=obs_rr_GS1,
      6                         dataset_name='GS1 RangeRate'),

NameError: name 'Range_GS1' is not defined
[11]:
# ── LSB — estimated trajectory errors ±3σ ───────────────────────
solution = solution_lsb
meas_epochs = scb.EpochArray(solution.timestamps, sys='TDB')

# estimated_trajectory: pos/vel at every measurement epoch from the OD solution
est_pos, est_vel, _ = solution.estimated_trajectory(meas_epochs)

# Truth from SPICE (true trajectory was written to SPK in cell 11)
true_pos = np.array([
    np.asarray(orbiter_traj_true.get_state(meas_epochs[k])['position'].values)
    for k in range(len(solution.timestamps))
])
true_vel = np.array([
    np.asarray(orbiter_traj_true.get_state(meas_epochs[k])['velocity'].values)
    for k in range(len(solution.timestamps))
])

err_pos_m  = (est_pos - true_pos) * 1e3    # km → m
err_vel_mm = (est_vel - true_vel) * 1e6    # km/s → mm/s

# ±3σ at each epoch from propagated covariance
P_meas   = solution.propagate_covariance(meas_epochs)
sig_pos  = np.array([np.sqrt(np.diag(P)[:3]) for P in P_meas]) * 1e3    # m
sig_vel  = np.array([np.sqrt(np.diag(P)[3:6]) for P in P_meas]) * 1e6   # mm/s

dts  = et2dt(solution.timestamps)
comp = ['x', 'y', 'z']

fig, axes = plt.subplots(2, 3, figsize=(14, 7), sharex=True)
fig.suptitle('LSB — Estimated Trajectory Error  (truth − estimate,  ±3σ band)',
             fontweight='bold', fontsize=11)

for j in range(3):
    for row, (err, sig, unit, col) in enumerate([
        (err_pos_m[:, j],  sig_pos[:, j],  'm',    'steelblue'),
        (err_vel_mm[:, j], sig_vel[:, j],  'mm/s', 'tomato'),
    ]):
        ax = axes[row, j]
        ax.plot(dts, err, '.', color=col, ms=3, lw=0.8)
        ax.fill_between(dts, -3*sig, 3*sig, alpha=0.25, color=col, label='±3σ')
        ax.axhline(0, color='k', lw=0.5, ls='--')
        lbl = f'Pos {comp[j]}' if row == 0 else f'Vel {comp[j]}'
        ax.set_title(lbl); ax.set_ylabel(f'Error [{unit}]')
        fmt_cal(ax)
        if j == 0: ax.legend(fontsize=8)

plt.tight_layout(); plt.show()

# Summary metrics
rms_pos = np.sqrt(np.mean(err_pos_m**2))
rms_vel = np.sqrt(np.mean(err_vel_mm**2))
print(f"RMS position error : {rms_pos:.2f} m")
print(f"RMS velocity error : {rms_vel:.4f} mm/s")

# State deviation mapped back to epoch_0 via STM
dev0 = solution.map_state_deviation_to_epoch()
print(f"\nEstimated Δpos at epoch_0 [km]  : {dev0[:3]}")
print(f"Estimated Δvel at epoch_0 [km/s]: {dev0[3:6]}")

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[11], line 2
      1 # ── LSB — estimated trajectory errors ±3σ ───────────────────────
----> 2 solution = solution_lsb
      3 meas_epochs = scb.EpochArray(solution.timestamps, sys='TDB')
      4
      5 # estimated_trajectory: pos/vel at every measurement epoch from the OD solution

NameError: name 'solution_lsb' is not defined

Enhanced: LSB — Pre-fit vs Post-fit Residuals (Calendar Date)#

Side-by-side scatter for each dataset. The red dashed lines are ±3σ measurement noise. A well-converged filter should have post-fit residuals uniformly distributed inside the ±3σ band with no systematic trends.

[12]:
fig, axes = plt.subplots(2, 2, figsize=(14, 8))
fig.suptitle("LSB — Pre-fit (iter 1) vs Post-fit (converged) Residuals",
             fontsize=12, fontweight="bold")

for row, (ds_name, sigma_val, ylabel) in enumerate([
    ("GS1 Range",     float(range_sigma.values) * 1e3,     "Range residual [m]"),
    ("GS1 RangeRate", float(rangerate_sigma.values) * 1e6, "RangeRate residual [mm/s]"),
]):
    scale = 1e3 if row == 0 else 1e6
    # iteration=0 → first-iteration pre-fits (large, show initial error)
    t_pre,  r_pre,  _,      _      = resid_from_filter(lsb, ds_name, iteration=0)
    _,      _,      t_post, r_post = resid_from_filter(lsb, ds_name)
    for col, (t_r, r_r, label) in enumerate(
        [(t_pre, r_pre, "Pre-fit (iter 1)"), (t_post, r_post, "Post-fit (converged)")]
    ):
        ax = axes[row, col]
        if len(t_r):
            ax.plot(et2dt(t_r), r_r * scale, ".", ms=8,
                    color=COLORS[row * 2 + col], alpha=0.7, label=label)
            ax.axhline(0, color="k", lw=0.6, ls="--")
            ax.axhline( 3 * sigma_val, color="r", lw=0.9, ls="--", alpha=0.7, label="±3σ")
            ax.axhline(-3 * sigma_val, color="r", lw=0.9, ls="--", alpha=0.7)
        ax.set_title(f"{ds_name} — {label}")
        ax.set_ylabel(ylabel); ax.set_xlabel("Calendar Date [UTC]")
        fmt_cal(ax); ax.legend()

plt.tight_layout(); plt.show()

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[12], line 6
      2 fig.suptitle("LSB — Pre-fit (iter 1) vs Post-fit (converged) Residuals",
      3              fontsize=12, fontweight="bold")
      4
      5 for row, (ds_name, sigma_val, ylabel) in enumerate([
----> 6     ("GS1 Range",     float(range_sigma.values) * 1e3,     "Range residual [m]"),
      7     ("GS1 RangeRate", float(rangerate_sigma.values) * 1e6, "RangeRate residual [mm/s]"),
      8 ]):
      9     scale = 1e3 if row == 0 else 1e6

NameError: name 'range_sigma' is not defined
../../_images/_collections_tutorials_advanced_IdealMSR_BatchOD_22_1.png

8. Batch Filter: SRIFB + Static Parameter Estimation (η_SRP)#

Theory#

The SRIF Batch (SRIFB) is the numerically superior square-root formulation of the batch filter. Instead of accumulating the normal matrix H^T W H (which can become ill-conditioned), it works with the square root of the information matrix R̄ via QR decomposition.

Static Parameter Estimation#

The OD state can include static scalar parameters that do not propagate through dynamics but affect the measurements through their force model coupling.

A common example is the SRP scale factor η_SRP: if our cannonball model is imperfect (wrong area or reflectivity), η_SRP absorbs the mismatch.

F_SRP_corrected = η_SRP × F_SRP_nominal

The filter simultaneously estimates η_SRP alongside the 6-state trajectory.

Estimation vs. Considered Parameters#

  • ``estimation=’estimated’`` — parameter is fully solved for; its covariance shrinks with data.

  • ``estimation=’considered’`` — parameter is not solved for, but its uncertainty propagates into the state covariance (conservative covariance inflation without biasing the solve-for state).

[13]:
# ── spacecraft with η_SRP in state ──────────────────────────────
Orbiter_srifb = scb.Spacecraft('Orbiter_SRIFB', -1002,
                                dry_mass+fuel_mass, area, cr)

# Slightly wrong η (true=1.0, reference=1.02 → 2% SRP model error)
eta_true = 1.0
eta_ref  = scb.ArrayWFrame(scb.ArrayWUnits(np.array([1.02]), None), None)

pos_ref_srifb = scb.ArrayWFrame(pos_0.quantity + delta_pos, frame)
vel_ref_srifb = scb.ArrayWFrame(vel_0.quantity + delta_vel, frame)

state_srifb = (
    scb.StateDefinition()
    .position(Orbiter_srifb, pos_ref_srifb)
    .velocity(Orbiter_srifb, vel_ref_srifb)
    .param('eta_srp', Orbiter_srifb, eta_ref,
           estimation='estimated', dynamics='static')  # solve-for parameter
)
sv_srifb = scb.StateArray(epoch=epoch_0, origin=origin, state=state_srifb)

# ── force model for reference ─────────────────────────────────────
fm_srifb = scb.ForceModelTranslation(
    primary_body   = Orbiter_srifb,
    third_bodies   = scb.CelestialBody.from_constants(['MERCURY', 'VENUS', 'EARTH']),
    cannonball_SRP = True,
)
prop_srifb = scb.Propagator(
    primary_body = Orbiter_srifb,
    state_vector = sv_srifb,
    tspan        = epoch_array,
    force_models = fm_srifb,
)

# ── extended covariance (6 kinematic + 1 η) ─────────────────────
eta_sig   = scb.ArrayWUnits(np.array([0.1]), None)  # ±10% prior on η
cov_srifb = scb.CovarianceMatrix(
    [pos_sig, pos_sig, pos_sig, vel_sig, vel_sig, vel_sig, eta_sig],
    epoch_array[1],
    from_list=True,
)

# ── measurement models need the state definition ─────────────────
Range_GS1_srifb     = scb.RangeIdeal('GS1 Range SRIFB', GS1,
                                      sigma=range_sigma,
                                      state_definition=state_srifb)
RangeRate_GS1_srifb = scb.RangeRateIdeal('GS1 RR SRIFB', GS1,
                                          sigma=rangerate_sigma,
                                          state_definition=state_srifb)

meas_list_srifb = scb.MeasurementSpec.from_dict([
    {'model': Range_GS1_srifb,     'observed_meas': obs_range_GS1, 'dataset_name': 'GS1 Range'},
    {'model': RangeRate_GS1_srifb, 'observed_meas': obs_rr_GS1,   'dataset_name': 'GS1 RangeRate'},
])

# ── instantiate SRIFB ────────────────────────────────────────────
ref_spk_srifb = tut_kernels_path / 'batch_orbiter_ref_srifb.bsp'
if ref_spk_srifb.exists(): ref_spk_srifb.unlink()

srifb = scb.SRIFB(
    propagator   = prop_srifb,
    settings     = scb.FilterSettings(
        initial_covariance = cov_srifb,
        output             = scb.OutputSettings(
            metadata = {'filter': 'SRIFB', 'params': 'eta_srp'}),
    ),
    measurements = meas_list_srifb,
    traj_name    = 'batch_orbiter_ref_srifb.bsp',
    traj_dir     = str(tut_kernels_path),
)

print("Running SRIFB batch filter with η_SRP estimation ...")
solution_srifb, n_iters_srifb, converged_srifb = srifb.fit(
    max_iterations        = 10,
    convergence_threshold = 1e-6,
    verbose               = True,
    traj_name             = 'batch_orbiter_ref.bsp',
    traj_dir              = str(tut_kernels_path),
)
print(f"\nConverged: {converged_srifb}  after {n_iters_srifb} iteration(s)")

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[13], line 3
      1 # ── spacecraft with η_SRP in state ──────────────────────────────
      2 Orbiter_srifb = scb.Spacecraft('Orbiter_SRIFB', -1002,
----> 3                                 dry_mass+fuel_mass, area, cr)
      4
      5 # Slightly wrong η (true=1.0, reference=1.02 → 2% SRP model error)
      6 eta_true = 1.0

NameError: name 'dry_mass' is not defined
[14]:
# ── SRIFB — parameter estimation + state errors ──────────────────
dev_srifb   = solution_srifb.map_state_deviation_to_epoch()
eta_ref_val = float(eta_ref.quantity.values)
print(f"Estimated η_SRP deviation  : {dev_srifb[6]:.6f}  "
      f"(true error was {eta_ref_val - eta_true:.4f})")
print(f"Estimated position  dev [km]  : {dev_srifb[:3]}")
print(f"Estimated velocity  dev [km/s]: {dev_srifb[3:6]}")

# ── custom state-error plot using estimated_trajectory + propagate_covariance ─
meas_ep_sb = scb.EpochArray(solution_srifb.timestamps, sys='TDB')

est_pos_sb, est_vel_sb, est_eta = solution_srifb.estimated_trajectory(meas_ep_sb)

true_pos_sb = np.array([
    np.asarray(orbiter_traj_true.get_state(meas_ep_sb[k])['position'].values)
    for k in range(len(solution_srifb.timestamps))
])
true_vel_sb = np.array([
    np.asarray(orbiter_traj_true.get_state(meas_ep_sb[k])['velocity'].values)
    for k in range(len(solution_srifb.timestamps))
])

err_pos_sb = (est_pos_sb - true_pos_sb) * 1e3    # km → m
err_vel_sb = (est_vel_sb - true_vel_sb) * 1e6    # km/s → mm/s

P_sb      = solution_srifb.propagate_covariance(meas_ep_sb)
sig_pos_sb = np.array([np.sqrt(np.diag(P)[:3]) for P in P_sb]) * 1e3
sig_vel_sb = np.array([np.sqrt(np.diag(P)[3:6]) for P in P_sb]) * 1e6

dts_sb = et2dt(solution_srifb.timestamps)
comp   = ['x', 'y', 'z']

fig, axes =  plt.subplots(2, 3, figsize=(14, 7), sharex=True)
fig.suptitle('SRIFB — Estimated Trajectory Error  (truth − estimate,  ±3σ band)\n'
             f'η_SRP est. deviation = {dev_srifb[6]:.6f}  '
             f'(true error = {eta_ref_val - eta_true:.4f})',
             fontweight='bold', fontsize=11)

for j in range(3):
    for row, (err, sig, unit, col) in enumerate([
        (err_pos_sb[:, j], sig_pos_sb[:, j], 'm',    'steelblue'),
        (err_vel_sb[:, j], sig_vel_sb[:, j], 'mm/s', 'tomato'),
    ]):
        ax = axes[row, j]
        ax.plot(dts_sb, err, '.', color=col, ms=3)
        ax.fill_between(dts_sb, -3*sig, 3*sig, alpha=0.25, color=col, label='±3σ')
        ax.axhline(0, color='k', lw=0.5, ls='--')
        lbl = f'Pos {comp[j]}' if row == 0 else f'Vel {comp[j]}'
        ax.set_title(lbl); ax.set_ylabel(f'Error [{unit}]')
        fmt_cal(ax)
        if j == 0: ax.legend(fontsize=8)

plt.tight_layout(); plt.show()

rms_pos_sb = np.sqrt(np.mean(err_pos_sb**2))
rms_vel_sb = np.sqrt(np.mean(err_vel_sb**2))
print(f"\nRMS position error : {rms_pos_sb:.2f} m")
print(f"RMS velocity error : {rms_vel_sb:.4f} mm/s")

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[14], line 2
      1 # ── SRIFB — parameter estimation + state errors ──────────────────
----> 2 dev_srifb   = solution_srifb.map_state_deviation_to_epoch()
      3 eta_ref_val = float(eta_ref.quantity.values)
      4 print(f"Estimated η_SRP deviation  : {dev_srifb[6]:.6f}  "
      5       f"(true error was {eta_ref_val - eta_true:.4f})")

NameError: name 'solution_srifb' is not defined

Enhanced: SRIFB — Final Covariance Corner Plot (pos + vel + η_SRP, 7×7)#

The 7th state element is the estimated η_SRP correction. Its correlation with the velocity and position components reveals the coupling between SRP modelling errors and orbit geometry that the filter is resolving.

[15]:
t_final_sb  = float(solution_srifb.timestamps[-1])
ep_final_sb = scb.EpochArray(np.array([t_final_sb]), sys='TDB')
P_final_sb  = solution_srifb.propagate_covariance(ep_final_sb)[0]
labels7     = ["x", "y", "z", "vx", "vy", "vz", "η_SRP"]
fig = corner_cov(P_final_sb, labels7,
                 title="SRIFB — Final State Covariance (6 kinematic + η_SRP)",
                 figsize=(10, 9))
plt.show()

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[15], line 1
----> 1 t_final_sb  = float(solution_srifb.timestamps[-1])
      2 ep_final_sb = scb.EpochArray(np.array([t_final_sb]), sys='TDB')
      3 P_final_sb  = solution_srifb.propagate_covariance(ep_final_sb)[0]
      4 labels7     = ["x", "y", "z", "vx", "vy", "vz", "η_SRP"]

NameError: name 'solution_srifb' is not defined

9. Stochastic Acceleration: Piecewise Gauss-Markov (PFOGM)#

Theory#

When unmodelled non-gravitational accelerations exist, we can augment the state with stochastic acceleration parameters that are solved for alongside the trajectory.

Piecewise FOGM (PFOGM) divides the tracking arc into \(N_b\) batches of length \(\Delta T\). Within each batch, the stochastic acceleration follows a first-order Gauss–Markov process, while different batches are treated as uncorrelated. This introduces \(3N_b\) additional stochastic acceleration parameters into the estimation problem.

When to use PFOGM vs. SNC#

  • PFOGM (batch): Use when you want to estimate the unmodelled acceleration in each time interval as a deterministic parameter. Residuals should show flat, white-noise character after.

  • SNC (sequential): Use when you want the filter to absorb process noise in real time without adding to the state dimension. More appropriate for sequential estimators (next notebook).

Parameter naming convention#

  • a_fogm → 3-component first-order Gauss-Markov acceleration (continuous FOGM)

  • a_pfogm → 3×N_batches piecewise-constant acceleration vector

[16]:
# ── PFOGM configuration ──────────────────────────────────────────
batch_length = 6 * 3600.0                            # 6-hour batch intervals [s]
n_batches    = int(np.ceil((time_f - time_0) / batch_length))
print(f"PFOGM: {n_batches} batches of {batch_length/3600:.1f} hr each")

Orbiter_pfogm = scb.Spacecraft('Orbiter_PFOGM', -1003,
                                dry_mass+fuel_mass, area, cr)

# Initial stochastic acceleration reference (all zero = assume no unmodelled force)
a0_pfogm = scb.ArrayWFrame(
    np.zeros(3 * n_batches), km/sec**2, J2000
)

# Perturbed IC for the reference trajectory
pos_pfogm = scb.ArrayWFrame(pos_0.quantity + delta_pos, frame)
vel_pfogm = scb.ArrayWFrame(vel_0.quantity + delta_vel, frame)

state_pfogm = (
    scb.StateDefinition()
    .position(Orbiter_pfogm, pos_pfogm)
    .velocity(Orbiter_pfogm, vel_pfogm)
    .param('a_pfogm', Orbiter_pfogm, a0_pfogm, dynamics='dynamic')
)
sv_pfogm = scb.StateArray(epoch=epoch_0, origin=origin, state=state_pfogm)

# Force model must declare PFOGM
beta_pfogm = np.array([1/3600, 1/3600, 1/3600])   # correlation: 1 hr in each axis
fm_pfogm = scb.ForceModelTranslation(
    primary_body                   = Orbiter_pfogm,
    third_bodies                   = scb.CelestialBody.from_constants(['MERCURY', 'VENUS', 'EARTH']),
    cannonball_SRP                 = True,
    piecewise_first_order_gauss_markov = True,
    pfogm_batch_length             = batch_length,
    pfogm_n_batches                = n_batches,
    pfogm_beta                     = beta_pfogm,
    t0                             = epoch_array[0],
)
prop_pfogm = scb.Propagator(
    primary_body = Orbiter_pfogm,
    state_vector = sv_pfogm,
    tspan        = epoch_array,
    force_models = fm_pfogm,
)

# ── extended covariance (6 + 3×N_b) ─────────────────────────────
a_sig = scb.ArrayWUnits(1e-10, km/sec**2)   # prior on each stochastic acc component
cov_pfogm = scb.CovarianceMatrix(
    [pos_sig, pos_sig, pos_sig, vel_sig, vel_sig, vel_sig] + [a_sig] * (3 * n_batches),
    epoch_array[1],
    from_list=True,
)

# ── measurement list with PFOGM state definition ─────────────────
Range_GS1_pf = scb.RangeIdeal('GS1 Range PFOGM', GS1,
                                sigma=range_sigma, state_definition=state_pfogm)
RR_GS1_pf    = scb.RangeRateIdeal('GS1 RR PFOGM', GS1,
                                   sigma=rangerate_sigma, state_definition=state_pfogm)

meas_pfogm = scb.MeasurementSpec.from_dict([
    {'model': Range_GS1_pf, 'observed_meas': obs_range_GS1, 'dataset_name': 'GS1 Range'},
    {'model': RR_GS1_pf,    'observed_meas': obs_rr_GS1,   'dataset_name': 'GS1 RangeRate'},
])

# ── run PFOGM batch OD (using LSB) ───────────────────────────────
ref_spk_pf = tut_kernels_path / 'batch_orbiter_ref_pfogm.bsp'
if ref_spk_pf.exists(): ref_spk_pf.unlink()

lsb_pfogm = scb.LSB(
    propagator   = prop_pfogm,
    settings     = scb.FilterSettings(
        initial_covariance = cov_pfogm,
        output             = scb.OutputSettings(metadata={'filter':'LSB-PFOGM'}),
    ),
    measurements = meas_pfogm,
    traj_name    = 'batch_orbiter_ref_pfogm.bsp',
    traj_dir     = str(tut_kernels_path),
)
print("Running PFOGM batch OD ...")
sol_pfogm, ni_pf, conv_pf = lsb_pfogm.fit(
    max_iterations=5, convergence_threshold=1e-6, verbose=True,
    traj_name='batch_orbiter_ref.bsp',
    traj_dir=str(tut_kernels_path),
)
print(f"\nConverged: {conv_pf} after {ni_pf} iterations")

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[16], line 3
      1 # ── PFOGM configuration ──────────────────────────────────────────
      2 batch_length = 6 * 3600.0                            # 6-hour batch intervals [s]
----> 3 n_batches    = int(np.ceil((time_f - time_0) / batch_length))
      4 print(f"PFOGM: {n_batches} batches of {batch_length/3600:.1f} hr each")
      5
      6 Orbiter_pfogm = scb.Spacecraft('Orbiter_PFOGM', -1003,

NameError: name 'time_f' is not defined
[17]:
# ── PFOGM — state errors ─────────────────────────────────────────
meas_ep_pf = scb.EpochArray(sol_pfogm.timestamps, sys='TDB')
est_pos_pf, est_vel_pf, est_acc_pf = sol_pfogm.estimated_trajectory(meas_ep_pf)

true_pos_pf = np.array([
    np.asarray(orbiter_traj_true.get_state(meas_ep_pf[k])['position'].values)
    for k in range(len(sol_pfogm.timestamps))
])
true_vel_pf = np.array([
    np.asarray(orbiter_traj_true.get_state(meas_ep_pf[k])['velocity'].values)
    for k in range(len(sol_pfogm.timestamps))
])

err_pos_pf = (est_pos_pf - true_pos_pf) * 1e3
err_vel_pf = (est_vel_pf - true_vel_pf) * 1e6
P_pf       = sol_pfogm.propagate_covariance(meas_ep_pf)
sig_pos_pf = np.array([np.sqrt(np.diag(P)[:3]) for P in P_pf]) * 1e3
sig_vel_pf = np.array([np.sqrt(np.diag(P)[3:6]) for P in P_pf]) * 1e6
dts_pf     = et2dt(sol_pfogm.timestamps)
comp       = ['x', 'y', 'z']

fig, axes = plt.subplots(2, 3, figsize=(14, 7), sharex=True)
fig.suptitle('PFOGM Batch OD — Estimated Trajectory Error  ±3σ',
             fontweight='bold', fontsize=11)
for j in range(3):
    for row, (err, sig, unit, col) in enumerate([
        (err_pos_pf[:, j], sig_pos_pf[:, j], 'm',    'steelblue'),
        (err_vel_pf[:, j], sig_vel_pf[:, j], 'mm/s', 'tomato'),
    ]):
        ax = axes[row, j]
        ax.plot(dts_pf, err, '.', color=col, ms=3)
        ax.fill_between(dts_pf, -3*sig, 3*sig, alpha=0.25, color=col, label='±3σ')
        ax.axhline(0, color='k', lw=0.5, ls='--')
        lbl = f'Pos {comp[j]}' if row == 0 else f'Vel {comp[j]}'
        ax.set_title(lbl); ax.set_ylabel(f'Error [{unit}]')
        fmt_cal(ax)
        if j == 0: ax.legend(fontsize=8)
plt.tight_layout(); plt.show()

# ── PFOGM — stochastic accelerations (candlestick: ±1σ body, ±2σ whiskers) ──
from matplotlib.patches import Rectangle
from matplotlib.dates   import date2num

dev_pfogm = sol_pfogm.map_state_deviation_to_epoch()
a_est     = dev_pfogm[6:].reshape(n_batches, 3) * 1e9   # km/s² → nm/s²

# PFOGM is a batch filter: acceleration estimates are global constants.
# Their uncertainty lives in the final covariance matrix — no propagation needed.
P_final = sol_pfogm.covariance_est[-1]
n_state = P_final.shape[0]
sig_acc = np.zeros((n_batches, 3))
for k in range(n_batches):
    idx = 6 + 3*k
    if idx + 3 <= n_state:
        sig_acc[k] = np.sqrt(np.maximum(np.diag(P_final)[idx : idx+3], 0)) * 1e9
    else:
        sig_acc[k] = np.sqrt(np.maximum(np.diag(P_final)[6:9], 0)) * 1e9

batch_centres = [et2dt([time_0 + (k + 0.5) * batch_length])[0] for k in range(n_batches)]
comp_a  = ['aₓ (J2000)', 'aᵧ (J2000)', 'a_z (J2000)']
palette = ['steelblue', 'tomato', 'seagreen']
hw      = (batch_length / 86400) * 0.35   # half-bar width [matplotlib date days]

fig, axes = plt.subplots(3, 1, figsize=(13, 9), sharex=True)
fig.suptitle('PFOGM — Stochastic Acceleration Estimates per Batch [nm/s²]\n'
             'box = ±1σ  |  whisker caps = ±2σ  |  centre mark = estimate',
             fontweight='bold', fontsize=11)

for c in range(3):
    ax = axes[c]
    ax.axhline(0, color='k', lw=0.6, ls='--', alpha=0.5)

    for k in range(n_batches):
        xc = date2num(batch_centres[k])
        a  = a_est[k, c]
        s1 = sig_acc[k, c]
        s2 = 2.0 * s1

        # wick: a-2σ to a+2σ
        ax.plot([xc, xc], [a - s2, a + s2],
                color='k', lw=1.0, zorder=2, solid_capstyle='butt')

        # caps at ±2σ
        cap = hw * 0.55
        ax.plot([xc-cap, xc+cap], [a+s2, a+s2], 'k-', lw=0.9, zorder=2)
        ax.plot([xc-cap, xc+cap], [a-s2, a-s2], 'k-', lw=0.9, zorder=2)

        # body: ±1σ (filled rectangle)
        ax.add_patch(Rectangle(
            (xc - hw, a - s1), 2*hw, 2*s1,
            facecolor=palette[c], edgecolor='navy',
            linewidth=0.8, alpha=0.85, zorder=3,
        ))

        # centre mark (estimated value)
        ax.plot([xc - hw, xc + hw], [a, a], 'k-', lw=1.8, zorder=4)

    # y-limits with padding around data + uncertainty
    lo = np.min(a_est[:, c] - 2.2*sig_acc[:, c])
    hi = np.max(a_est[:, c] + 2.2*sig_acc[:, c])
    pad = max(abs(hi - lo) * 0.15, 0.5)
    lo = min(lo - pad, -pad); hi = max(hi + pad, pad)
    ax.set_ylim(lo, hi)
    ax.set_ylabel(f'{comp_a[c]} [nm/s²]', fontsize=9)
    fmt_cal(ax)

plt.tight_layout(); plt.show()

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[17], line 2
      1 # ── PFOGM — state errors ─────────────────────────────────────────
----> 2 meas_ep_pf = scb.EpochArray(sol_pfogm.timestamps, sys='TDB')
      3 est_pos_pf, est_vel_pf, est_acc_pf = sol_pfogm.estimated_trajectory(meas_ep_pf)
      4
      5 true_pos_pf = np.array([

NameError: name 'sol_pfogm' is not defined

10. Measurement Editing#

Measurement editing (also called data editing or outlier rejection) removes corrupted or anomalous observations before they degrade the OD solution.

Scarabaeus supports three editing strategies configurable via FilterSettings:

10.1 Chi-Squared Filter (automatic, recommended)#

For each observation, compute the normalised residual

\[\chi_i^2 = \frac{(y_i - \hat{y}_i)^2}{\sigma_i^2}\]

If \(\chi_i > \sigma_\text{scale}\) (default 3), the measurement is flagged as an outlier. This is the standard 3-σ editing used in operational OD.

settings = scb.FilterSettings(
    initial_covariance = cov,
    editing_method     = 'chi2',
    editing_kwargs     = {'sigma_scale': 3.0},
    ...
)

10.2 Date-Range Filter (manual)#

Remove all measurements outside a specified UTC time window:

settings = scb.FilterSettings(
    editing_method = 'date_range',
    editing_kwargs = {'start': t_start_et, 'end': t_end_et},
    ...
)

10.3 Lasso Selector (interactive)#

Opens a matplotlib figure where the analyst can draw a lasso to select outliers:

settings = scb.FilterSettings(
    editing_method = 'lasso',
    editing_kwargs = {'sigma_scale': 3.0, 'preview': True},
    ...
)
[18]:
# ── inject outliers into the range measurements ──────────────────
# Extract the raw numpy values, corrupt them, then rebuild the ArrayWFrame.
# ArrayWFrame doesn't support in-place index assignment, so we work on the
# underlying numpy array and reconstruct.
rng_seed    = np.random.RandomState(42)
raw_vals    = np.array(obs_range_GS1[2].quantity.values, dtype=float)  # km
outlier_idx = rng_seed.choice(len(raw_vals), 5, replace=False)
raw_vals[outlier_idx] += rng_seed.uniform(-50, 50, size=5)

vals_with_outliers = scb.ArrayWFrame(scb.ArrayWUnits(raw_vals, km), frame)
# preserve all 4 tuple elements: (epoch_array, times_sec, values, outlier_flag)
obs_range_edited = (obs_range_GS1[0], obs_range_GS1[1],
                    vals_with_outliers, obs_range_GS1[3])

print(f"Injected outliers at indices: {sorted(outlier_idx.tolist())}")

# ── filter with chi-squared editing ──────────────────────────────
Orbiter_ed = scb.Spacecraft('Orbiter_Edit', -1004, dry_mass+fuel_mass, area, cr)
pos_ed = scb.ArrayWFrame(pos_0.quantity + delta_pos, frame)
vel_ed = scb.ArrayWFrame(vel_0.quantity + delta_vel, frame)

state_ed = scb.StateDefinition.from_components([
    ('position', 3, 'estimated', 'dynamic', Orbiter_ed, pos_ed),
    ('velocity', 3, 'estimated', 'dynamic', Orbiter_ed, vel_ed),
])
sv_ed = scb.StateArray(epoch=epoch_0, origin=origin, state=state_ed)
fm_ed = scb.ForceModelTranslation(primary_body=Orbiter_ed,
                                   third_bodies=scb.CelestialBody.from_constants(['MERCURY', 'VENUS', 'EARTH']),
                                   cannonball_SRP=True)
prop_ed = scb.Propagator(primary_body=Orbiter_ed, state_vector=sv_ed,
                          tspan=epoch_array, force_models=fm_ed)

Range_GS1_ed = scb.RangeIdeal('GS1 Range Edited', GS1, sigma=range_sigma)
meas_ed = scb.MeasurementSpec.many(
    scb.MeasurementSpec(model=Range_GS1_ed,  observed_meas=obs_range_edited,
                        dataset_name='GS1 Range (w/ outliers)'),
    scb.MeasurementSpec(model=RangeRate_GS1, observed_meas=obs_rr_GS1,
                        dataset_name='GS1 RangeRate'),
)

ref_spk_ed = tut_kernels_path / 'batch_orbiter_ref_edit.bsp'
if ref_spk_ed.exists(): ref_spk_ed.unlink()

lsb_ed = scb.LSB(
    propagator   = prop_ed,
    settings     = scb.FilterSettings(
        initial_covariance = state_cov,
        editing_method     = 'lasso',
        output             = scb.OutputSettings(metadata={'filter': 'LSB-lasso-editing'}),
    ),
    measurements = meas_ed,
    traj_name    = 'batch_orbiter_ref_edit.bsp',
    traj_dir     = str(tut_kernels_path),
)
print("Running LSB with lasso editing ...")
sol_ed, ni_ed, conv_ed = lsb_ed.fit(
    max_iterations        = 1,
    convergence_threshold = 1e-6,
    verbose               = True,
    traj_name             = 'batch_orbiter_ref_edit.bsp',
    traj_dir              = str(tut_kernels_path),
)
print(f"Converged: {conv_ed} after {ni_ed} iterations")

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[18], line 6
      2 # Extract the raw numpy values, corrupt them, then rebuild the ArrayWFrame.
      3 # ArrayWFrame doesn't support in-place index assignment, so we work on the
      4 # underlying numpy array and reconstruct.
      5 rng_seed    = np.random.RandomState(42)
----> 6 raw_vals    = np.array(obs_range_GS1[2].quantity.values, dtype=float)  # km
      7 outlier_idx = rng_seed.choice(len(raw_vals), 5, replace=False)
      8 raw_vals[outlier_idx] += rng_seed.uniform(-50, 50, size=5)
      9

NameError: name 'obs_range_GS1' is not defined

11. Saving the OD Solution#

OutputSettings controls what the filter saves and where.

scb.OutputSettings(
    solution_output_path = 'results/',      # directory
    solution_output_name = 'batch_od_run1', # filename stem
    save_deviation_est   = True,            # state deviation at each epoch
    save_state_est       = True,            # absolute state estimates
    save_covariance_est  = True,            # estimated covariance history
    save_prefits         = True,            # pre-fit residuals
    save_postfits        = True,            # post-fit residuals
    metadata             = {'version': '1.0'},
)

The SolutionOD object (returned by filter.fit()) provides access to all results regardless of whether file output is configured.

[19]:
# ═══════════════════════════════════════════════════════════════════
# SolutionOD API — estimated_trajectory, propagate_state, propagate_covariance
# ═══════════════════════════════════════════════════════════════════
solution = solution_lsb

t_arc_start = float(solution.timestamps[0])
t_arc_end   = float(solution.timestamps[-1])

# ── A. estimated_trajectory: pos/vel/params AT measurement epochs ─────────────
meas_epochs = scb.EpochArray(solution.timestamps, sys='TDB')
est_pos, est_vel, est_params = solution.estimated_trajectory(meas_epochs)

print("── A. estimated_trajectory ──────────────────────────────────")
print(f"  n epochs   : {len(solution.timestamps)}")
print(f"  est_pos  shape : {est_pos.shape}  first: {est_pos[0]}")
print(f"  est_vel  shape : {est_vel.shape}  first: {est_vel[0]}")
print(f"  est_params     : {'None' if est_params is None else est_params.shape}")

# ValueError guard: estimated_trajectory only valid at measurement epochs
try:
    solution.estimated_trajectory(
        scb.EpochArray(np.array([t_arc_end + 3600.0]), sys='TDB'))
    print("  FAIL — should have raised ValueError")
except ValueError:
    print("  PASS — correctly rejects non-measurement epochs")

# ── B. propagate_state: estimated state at ARBITRARY epochs ────────────────
t_inside = np.linspace(t_arc_start, t_arc_end, 8)          # 8 pts including arc end
t_after  = t_arc_end + np.linspace(1800, 6*3600, 8)        # 8 pts strictly after arc end
t_all    = np.concatenate([t_inside, t_after])              # 16 pts, no duplicate
ep_all   = scb.EpochArray(t_all, sys='TDB')

state_list = solution.propagate_state(ep_all)

# Extract pos / vel from each returned StateArray via values0
all_pos = np.array([np.asarray(sa.values0.values[:3]) for sa in state_list])
all_vel = np.array([np.asarray(sa.values0.values[3:6]) for sa in state_list])

print("── B. propagate_state ───────────────────────────────────────")
print(f"  propagated {len(state_list)} epochs (8 inside arc, 8 outside)")
print(f"  first inside pos  (km): {all_pos[0]}")
print(f"  first outside pos (km): {all_pos[8]}")

# ── C. propagate_covariance: P(t) inside AND outside the arc ──────────────
P_all    = solution.propagate_covariance(ep_all)
rss_sig  = np.array([np.linalg.norm(np.sqrt(np.maximum(np.diag(P)[:3], 0))) for P in P_all])

dts_all  = et2dt(t_all)
dts_arc  = et2dt([t_arc_start, t_arc_end])
n_in     = len(t_inside)

fig, ax = plt.subplots(figsize=(12, 5))
ax.axvspan(dts_arc[0], dts_arc[1], alpha=0.10, color='green', label='Measurement arc')
ax.axvline(dts_arc[1], color='green', lw=1.2, ls='--')
ax.semilogy(dts_all[:n_in],   rss_sig[:n_in]   * 1e3, 'b.-', ms=5,
            lw=1.2, label='Inside arc — 1σ RSS (m)')
ax.semilogy(dts_all[n_in-1:], rss_sig[n_in-1:] * 1e3, 'r.-', ms=5,
            lw=1.2, label='After arc — propagated 1σ RSS (m)')
ax.set_xlabel('Calendar Date [UTC]')
ax.set_ylabel('Position 1-σ RSS [m]')
ax.set_title('Covariance: inside and beyond the measurement arc')
ax.legend(); fmt_cal(ax); add_hrs_axis(ax, t_arc_start)
plt.tight_layout(); plt.show()

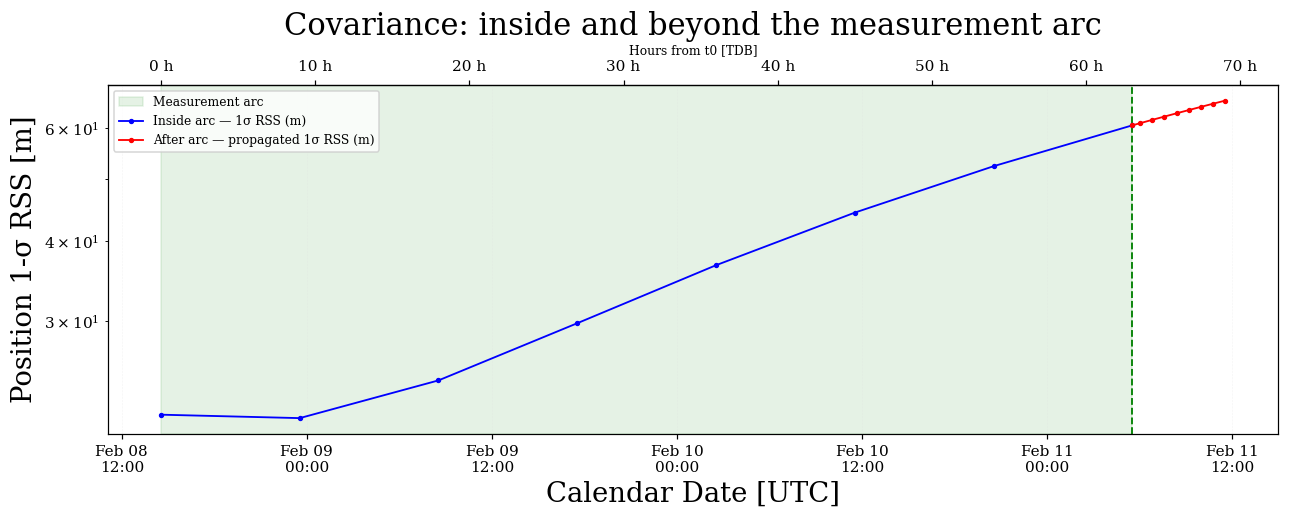

print("── C. propagate_covariance ──────────────────────────────────")
print(f"  1σ RSS at arc start : {rss_sig[0]*1e3:.2f} m")
print(f"  1σ RSS at arc end   : {rss_sig[n_in-1]*1e3:.2f} m")
print(f"  1σ RSS at +6 hr     : {rss_sig[-1]*1e3:.2f} m")

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[19], line 4
      1 # ═══════════════════════════════════════════════════════════════════
      2 # SolutionOD API — estimated_trajectory, propagate_state, propagate_covariance
      3 # ═══════════════════════════════════════════════════════════════════
----> 4 solution = solution_lsb
      5
      6 t_arc_start = float(solution.timestamps[0])
      7 t_arc_end   = float(solution.timestamps[-1])

NameError: name 'solution_lsb' is not defined

Summary#

This notebook demonstrated the complete batch OD workflow in Scarabaeus:

Step

Class/Function

Notes

Spacecraft model

scb.Spacecraft

mass, area, CR

Dynamics

scb.ForceModelTranslation

Keplerian, 3-body, SRP (cannonball/N-plate), SpherHarm, FOGM, PFOGM

Dynamics tuning

Propagation comparison

Compare pos error vs fidelity

True trajectory

scb.Propagator + scb.Trajectory

Write SPK for truth

Measurements

RangeIdeal, RangeRateIdeal, DopplerIdeal, DiffOneWayRangeIdeal

All measurement models

Reference IC

Perturbed state + P₀

scb.CovarianceMatrix

LSB batch filter

scb.LSB

Least-squares batch

SRIFB + η_SRP

scb.SRIFB + .param('eta_srp', ...)

Square-root batch + parameter

PFOGM

.param('a_pfogm', ..., dynamics='dynamic')

Stochastic acceleration

Measurement editing

FilterSettings(editing_method='chi_squared')

Outlier rejection

Solution analysis

solution.estimated_trajectory(), .propagate_covariance()

State + uncertainty

Next: See OD_Sequential_Demo.ipynb for the sequential filter (LKF / SRIF) with SNC/DMC process noise, RTS smoother, and multi-leg MissionSequence OD.
