# OSIRIS-REx Real Data — Two-Pass Batch Orbit Determination#

Scarabaeus OD Framework | Last revised 2026

What this notebook covers#

The OSIRIS-REx real-data case of the Scarabaeus paper (ISSFD 2026, Section VI.A): an orbit determination run on two DSN passes of two-way sequential ranging and Doppler, both tracked by DSS-35 (Canberra) while the spacecraft was in cruise toward Bennu, on 2018 July 2 (04:15–12:05 UTC) and July 4 (02:05–07:40 UTC). The passes are the paper’s, but the filter setup is not: the paper ran a batch least-squares filter (LSB) with a single range bias and an estimated DSS-35 location. Here the station stays at its ITRF value, and the filter is set up the way a navigation team would set it up:

  • a batch square-root information filter (SRIFB) started from a deliberately perturbed a priori state;

  • stochastic accelerations (piecewise first-order Gauss–Markov, PFOGM), one batch per pass, and an estimated SRP scale factor to absorb force-model errors;

  • modelled station and transponder delays, with the spacecraft transponder delay set to a value estimated in house (the OSIRIS-REx value is not public), and one range bias per pass for the calibration error they leave;

  • robust measurement editing, and data weights set from the errors a navigation filter expects rather than fitted to the noise;

  • a forward-prediction consistency test: the solution and its covariance are mapped three days past the last measurement and compared with the reconstructed OD044 ephemeris;

  • a prediction test on a third pass: the DSS-35 pass of July 6 is left out of the fit, and its measurements are compared with the ones the solution predicts (the pre-fit residuals of the pass, against the predicted covariance);

  • dynamical tuning: the PFOGM strength is chosen with the forward-prediction test, not with the post-fit residuals.

#

Topic

1

Setup — kernels, units, frames, spacecraft model

2

Load the DSN passes — sequential ranging + Doppler, media corrections

3

Scenario window and reference ephemeris

4

Measurement editing (Huber + MAD) and data weights

5

Batch filter — SRIFB with PFOGM accelerations, SRP scale factor and per-pass range biases

6

Fit results — parameters, residuals, comparison with OD044

7

Stochastic accelerations

8

Forward-prediction consistency test

9

Prediction test on a third pass

10

Dynamical tuning of the PFOGM strength

11

Summary

See Also#

1. Setup#

Standard scientific stack plus scarabaeus and the supplementary data helper. contextlib and io capture the logs of the measurement computation and of the filter, which print progress bars and one line per measurement epoch, so that only their summaries are shown (Sections 4, 5, 9 and 10); warnings reports the expected warnings in one line each.

[1]:
import io
import os
import time
import warnings
import contextlib
from pathlib import Path
import scarabaeus as scb
import numpy as np
import matplotlib.pyplot as plt
import supplementary as supp

plt.rcParams.update({
    'font.size': 10, 'axes.titlesize': 11, 'axes.labelsize': 10,
    'xtick.labelsize': 9, 'ytick.labelsize': 9, 'legend.fontsize': 8,
    'figure.dpi': 110, 'axes.grid': True, 'grid.alpha': 0.35, 'grid.linestyle': '--',
})

1.1 — SPICE Kernels, Units, Frames, and Spacecraft#

Output paths#

SPK kernels generated by this notebook are written to supplementary/supp_data/kernels/scenario/ — the same location used by the Ideal-MSR batch OD notebook — and results to tutorial_results/real_msr_od/.

Units and frames#

SCB enforces physical units at every operation via ArrayWUnits. scb.Units.get_units() returns unit objects; scb.Frame.generate_common_frames() returns the four standard frames:

Frame

Description

J2000

Earth Mean Equator, J2000.0 — default inertial propagation frame

ITRF93

Body-fixed Earth frame — used for DSN ground-station positions

ECLIPJ2000

Mean Ecliptic, J2000.0

IAUEARTH

IAU Earth-fixed frame

SPICE kernels#

load_kernel_from_mkfile() furnishes the full OSIRIS-REx kernel set (SPK trajectories, PCK body constants, LSK leap-second, frame kernels) from the supplementary data metakernel. It includes the OD044 SPK, the OSIRIS-REx navigation team’s reconstructed trajectory, which this notebook uses as its reference.

Spacecraft#

  • ``sc_id = -64`` — NAIF ID for OSIRIS-REx.

  • ``scft_transpd_delay_s = 1649.9 ns`` — spacecraft transponder delay. The tracking files carry no calibrated value for it, and the OSIRIS-REx value is not public, so this one was estimated in house, in separate analysis scripts that are not distributed with Scarabaeus, from the DSS-35 ranging and Doppler of the 2017 September 22 Earth gravity assist. Near Earth the fast-changing geometry of the flyby separates a constant range offset from the line-of-sight position, which the cruise passes of this notebook cannot do (Section 5), and the estimate does not depend on its a priori: 1649.9 ± 4.3 ns, i.e. 247.3 m of one-way range, with systematic errors of about ±4 m one-way. With DSS-35 the only station of that fit, the estimate also contains the part of the DSS-35 calibration error common to both epochs, so it carries over to the DSS-35 passes used here. observed_measurements() takes the delay in Range Units (scft_transpd_delay) and converts it back to seconds with the range unit and the reference frequency of the band. What the modelled delays leave is absorbed by a range bias estimated for each pass (Section 5).

  • Cannonball SRP with mass 1200 kg, area 12 m² and C_r = 0.8. These are rough values: the filter estimates a scale factor eta_srp on the SRP acceleration.

  • scb.CelestialBody.from_constants("SUN") — heliocentric central body.

[2]:
# load tutorial data
data = supp.load_data()

# load kernels
scb.SpiceManager.clear_kernels()
scb.SpiceManager.load_kernel_from_mkfile(data.OREx_real_data_mk.path)

# ── output paths (same convention as advanced_IdealMSR_BatchOD) ──────────────
tut_kernels_path = Path(data.mk.path).parent.parent / 'scenario'
tut_result_path  = Path.cwd() / 'tutorial_results' / 'real_msr_od'
tut_kernels_path.mkdir(parents=True, exist_ok=True)
tut_result_path.mkdir(parents=True, exist_ok=True)

# Generate common frames and units
kg, km, sec, unitless = scb.Units.get_units(["kg", "km", "sec", "unitless"])
(J2000, ITRF93, ECLIPJ2000, IAUEARTH) = scb.Frame.generate_common_frames()

# Scenario parameters
sc_id = -64
# Spacecraft transponder delay. The tracking files carry no calibrated value and
# the OSIRIS-REx value is not public: this one was estimated in house, in separate
# analysis scripts, from the DSS-35 tracking of the 2017 Earth gravity assist
scft_transpd_delay_s = 1649.9e-9   # [s]
# observed_measurements takes the delay in Range Units and converts it back to
# seconds with the range unit and the reference frequency of the band
# (scb.Measurement.transponder_delay_seconds); the passes are X band
X_band = scb.Measurement.DSN_BANDS["X"]
scft_transpd_delay = scft_transpd_delay_s * X_band.range_unit * float(X_band.ru_reference_frequency.values)  # [RU]

# Spacecraft. The cannonball SRP values are a starting point: the filter
# estimates a scale factor eta_srp on the SRP acceleration (Section 5)
Orbiter_mass   = scb.ArrayWUnits(1200.0, kg)
Orbiter_area   = scb.ArrayWUnits(1.2e-05, km**2)
Orbiter_cr_srp = scb.ArrayWUnits(0.8, None)
Orbiter = scb.Spacecraft("Orbiter", sc_id, Orbiter_mass, Orbiter_area, Orbiter_cr_srp)

frame  = J2000
origin = scb.CelestialBody.from_constants("SUN")
SCB supplementary data out of date.
---------------------------------------------------------------------------
StdinNotImplementedError                  Traceback (most recent call last)
Cell In[2], line 2
      1 # load tutorial data
----> 2 data = supp.load_data()
      3
      4 # load kernels
      5 scb.SpiceManager.clear_kernels()

File ~/scb_public/scarabaeus/docs/online_documentation/sphinx_files/_collections/tutorials/supplementary/supp_data.py:433, in load_data()
    431 waiting = True
    432 while waiting:
--> 433     response = input("\nDownload and generate missing files? (y/n): ")
    434     match response.strip().lower():
    435         case "y":

File ~/scb_public/scarabaeus/.venv/lib/python3.11/site-packages/ipykernel/kernelbase.py:1514, in Kernel.raw_input(self, prompt)
   1512 if not self._allow_stdin:
   1513     msg = "raw_input was called, but this frontend does not support input requests."
-> 1514     raise StdinNotImplementedError(msg)
   1515 return self._input_request(
   1516     str(prompt),
   1517     self._get_shell_context_var(self._shell_parent_ident),
   1518     self.get_parent("shell"),
   1519     password=False,
   1520 )

StdinNotImplementedError: raw_input was called, but this frontend does not support input requests.

2. Load the DSN Passes and Apply Media Corrections#

Scarabaeus measurement JSON format#

Scarabaeus real measurement models expect tracking data in a predefined JSON format. Each file represents one DSN pass and contains a set of top-level keys:

Key

Content

2W_sranging

Sequential ranging observable — epoch, value, station SPICE ID, outlier flags

2W_doppler

Doppler observable — epoch, value, count time, station SPICE ID, outlier flags

aux_SFDU_0

Uplink carrier ramp table (SFDU record 0)

aux_SFDU_2 / aux_SFDU_3

Uplink / downlink zenith-height corrections (SFDU 2 & 3)

aux_SFDU_7

Ranging modulo, uplink frequency, station calibration delays (SFDU 7)

aux_SFDU_9

Exciter ramp table — year, doy, sec, ramp_freq, ramp_rate, ramp_type (SFDU 9)

aux_SFDU_16

Doppler count time, M₂ turnaround ratio, outlier flags (SFDU 16)

Converting raw DSN files into this format is handled by Deep Whale Network (DWN), an internal ORCCA tool that is not yet publicly released.

Tracking observables#

Two DSN observable types are loaded from each tracking JSON file:

Model class

Observable

Physical quantity

SequentialRangingReal

2W_sranging

Round-trip light time → range [RU]

DopplerReal

2W_doppler

Carrier frequency shift → range-rate [Hz]

Auxiliary data (obs.aux_dict)#

observed_measurements() reads the SFDU ancillary records along with the observables and attaches them to the returned observation as ``obs.aux_dict``, one entry per observation epoch: ranging modulo and RU factor, uplink frequency, count time Tc, M₂ turnaround ratio, time-tag and station calibration delays, and the ramp table. MeasurementSpec hands this dictionary to the model, so the models below are built without one, and editing or slicing the observations keeps it aligned.

To simulate measurements with these models (no tracking file), build the dictionary with the model’s own default_seqranging_aux(tstart, tend) or default_doppler_aux(tstart, tend), which take the simulated ramp, calibration and transponder values from the model’s properties (ramp_rate, ul_station_cal, transponder_delay, …).

Optional corrections#

Both models accept switches to leave individual corrections out of the computed observable, for example to measure their size:

Argument

Default

Effect

solar_corona

True

Solar-corona delay on the light time

electronic_delays

True

Time-tag, z-height, transponder and arraying delays of the aux data

rlt_bodies

None → Constants.RLT_BODIES

Bodies besides the Sun in the relativistic light-time term; () keeps only the Sun

media_corrections

None

Troposphere / ionosphere, attached below

Media corrections#

scb.MediaCorrections attaches atmospheric corrections directly to each measurement model. The seasonal tropospheric file is loaded at construction; the non-seasonal file (year/day specific) is resolved by find_tro_metadata() against the pass date.

The passes#

Pass

Station

Date (UTC)

Use

Datasets

1

DSS-35 (Canberra)

2018 DoY 183 (July 2), 04:15–12:05

fit

Range 1 DSS-35, Doppler 1 DSS-35

2

DSS-35 (Canberra)

2018 DoY 185 (July 4), 02:05–07:40

fit

Range 2 DSS-35, Doppler 2 DSS-35

3

DSS-35 (Canberra)

2018 DoY 187 (July 6), 05:05–09:35

prediction test only

Range 3 DSS-35, Doppler 3 DSS-35

Passes 1 and 2 are the two passes of the experiment in the Scarabaeus paper. Each gets its own ranging and Doppler model, so editing, weights and residuals are handled per pass, and both share one GroundStation object. Pass 3 is loaded only in Section 9 and never reaches the filter.

Both models are built with electronic_delays=True: the computed observables include the station delays of the aux data and the transponder delay of Section 1.1, and the line printed for each pass shows the delay applied (1649.9 ns). The per-pass range bias of Section 5 then only absorbs the calibration error these delays leave.

The media correction files are resolved per pass: each pass gets the non-seasonal troposphere file of its date, and an ionosphere file when one exists for that date.

[3]:
tropo_seasonal_file_path = data.tropo_seasonal_new.path
media_bucket = os.path.dirname(data.tropo_seasonal_new.path)


def add_media_corrections(obs, meas_model, station, name):
    """Attach tropospheric (and, when available, ionospheric) corrections for the pass date."""
    mc = scb.MediaCorrections(name=name, instrument=station,
                              tropo_seasonal_file_path=tropo_seasonal_file_path)
    year_pass, day_pass, _ = scb.SpiceManager.et2YDS([obs.meas_time_et.times.values[0]])
    metadata_tropo = scb.MediaCorrections.find_tro_metadata(media_bucket, year_pass[0], day_pass[0])
    metadata_iono  = scb.MediaCorrections.find_ion_metadata(media_bucket, year_pass[0], day_pass[0])
    if metadata_tropo:
        mc.tropo_non_seasonal_file_path = os.path.join(media_bucket, metadata_tropo['file'])
    if metadata_iono:
        mc.iono_file_path = os.path.join(media_bucket, metadata_iono['file'])
    meas_model.media_corrections = mc
    return meas_model


# One tracking file per fitted pass, in time order (pass 3 is loaded in Section 9)
pass_files = [data.trk_file_183_dss35.path, data.trk_file_185_dss35.path]

# Loose starting sigmas: the editing step of Section 4 refits them, and the
# data weights are set after it
sranging_sigma = scb.ArrayWUnits(1e1, km / km)
doppler_sigma  = scb.ArrayWUnits(1e-2, 1 / sec)

stations = {}                  # station name -> GroundStation
specs = []                     # one ranging + one Doppler MeasurementSpec per pass
dataset_info = {}              # dataset name -> (station name, "range" | "doppler", pass number)
range_models_by_station = {}   # station name -> ranging models, in pass order
pass_epochs_by_station = {}    # station name -> ranging epochs of each pass
range_RU_m = {}                # ranging dataset name -> one-way metres per RU
pass_spans = []                # (start, end) ET of each pass
for k, trk_file_path in enumerate(pass_files, start=1):
    trk_data = scb.Utils.load_json(trk_file_path)
    GS_name = "DSS-" + str(trk_data["2W_doppler"]["spice_id"][0])
    GS = stations.setdefault(GS_name, scb.GroundStation(GS_name))

    # Station and transponder delays modelled (Section 1.1)
    sranging_model = scb.SequentialRangingReal(f"Range {k} {GS_name}", GS,
                                               sigma=sranging_sigma, electronic_delays=True)
    doppler_model  = scb.DopplerReal(f"Doppler {k} {GS_name}", GS, sigma=doppler_sigma, electronic_delays=True)

    # Observed measurements: every row of the pass, with the outlier flags of the file
    sr_obs      = sranging_model.observed_measurements(trk_file_path, meas_name="2W_sranging", units=km / km,
                                                       sc_transponder_delay_RU=scft_transpd_delay)
    doppler_obs = doppler_model.observed_measurements(trk_file_path, meas_name="2W_doppler", units=1 / sec,
                                                      sc_transponder_delay_RU=scft_transpd_delay)
    sranging_model = add_media_corrections(sr_obs, sranging_model, GS, f"Media range {k}")
    doppler_model  = add_media_corrections(doppler_obs, doppler_model, GS, f"Media Doppler {k}")

    specs += [
        scb.MeasurementSpec(model=sranging_model, observed_meas=sr_obs,
                            dataset_name=sranging_model.name, file_label=f"real_range_{k}"),
        scb.MeasurementSpec(model=doppler_model, observed_meas=doppler_obs,
                            dataset_name=doppler_model.name, file_label=f"real_range_rate_{k}"),
    ]
    dataset_info[sranging_model.name] = (GS_name, "range", k)
    dataset_info[doppler_model.name]  = (GS_name, "doppler", k)
    range_models_by_station.setdefault(GS_name, []).append(sranging_model)
    pass_epochs_by_station.setdefault(GS_name, []).append(sr_obs.meas_time_et.times.values)

    # Range Unit of the pass, as a one-way distance
    RU_s = 1.0 / (np.unique(sr_obs.aux_dict["RU"])[0] * np.unique(sr_obs.aux_dict["ul_freq"])[-1])
    range_RU_m[sranging_model.name] = RU_s * float(scb.constants.c.values) * scb.constants.km_to_m / 2

    t_pass = np.concatenate([sr_obs.meas_time_et.times.values, doppler_obs.meas_time_et.times.values])
    pass_spans.append((t_pass.min(), t_pass.max()))
    print(f"Pass {k}: {GS_name}, {scb.SpiceManager.et2utc(t_pass.min())[:16]} - "
          f"{scb.SpiceManager.et2utc(t_pass.max())[11:16]} UTC, {len(sr_obs.meas_time_et.times.values)} range / "
          f"{len(doppler_obs.meas_time_et.times.values)} Doppler, "
          f"uplink {np.unique(sr_obs.aux_dict['ul_freq'])[-1] / 1e6:.3f} MHz, "
          f"1 RU = {range_RU_m[sranging_model.name]:.4f} m one-way, "
          f"transponder delay {float(np.ravel(sr_obs.aux_dict['scft_transpd_delay_s'])[0]) * 1e9:.1f} ns")

measurements = scb.MeasurementSpec.many(*specs)

# One range bias per pass (Section 5): every ranging model of a station gets
# the epochs of all that station's passes, and element i of the station's bias
# vector applies to the observations of its pass i
for GS_name, models in range_models_by_station.items():
    for model in models:
        model.set_pass_epochs(pass_epochs_by_station[GS_name])
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[3], line 1
----> 1 tropo_seasonal_file_path = data.tropo_seasonal_new.path
      2 media_bucket = os.path.dirname(data.tropo_seasonal_new.path)
      3
      4

NameError: name 'data' is not defined

3. Scenario Window and Reference Ephemeris#

The scenario window spans the two passes with a 1-hour pad on each side, about 53 hours.

Reference ephemeris#

The OD044 SPK is the OSIRIS-REx navigation team’s reconstruction of the trajectory. It is itself an estimate, built from many more passes than the two used here, not ground truth. This notebook uses it in three places:

  • the a priori state of the filter is OD044 at the start of the window plus a random error (Section 5);

  • the measurement residuals of the editing step (Section 4) are taken against it;

  • it is the benchmark of the fit (Section 6) and of the three-day prediction (Section 8); the third pass (Section 9) tests the prediction against measurements instead.

Differences of a few metres against OD044 measure agreement between two estimates, not an error against truth.

Force model#

The reference trajectory propagated by the filter uses:

  • point-mass gravity of the Sun (central body);

  • third-body perturbations of the eight planets and Pluto (barycentre IDs);

  • cannonball SRP, scaled by the estimated factor eta_srp;

  • PFOGM stochastic accelerations (Section 5).

[4]:
# Scenario window: observation span of the two passes with a 1-hour pad on each side
all_et_obs = np.unique(np.concatenate([s.observed_meas.meas_time_et.times.values for s in specs]))
et_min_obs, et_max_obs = all_et_obs[0], all_et_obs[-1]
# Output grid of the propagation, at most 60 s apart. The integrator steps by
# its own tolerances and the filter interpolates the reference SPK and STMs at
# the measurement epochs, so the grid sets only the output (and the size of the
# reference SPK and its sidecars).
n_grid = int(np.ceil((et_max_obs - et_min_obs + 7200.0) / 60.0)) + 1
et_padded = np.linspace(et_min_obs - 3600, et_max_obs + 3600, n_grid)
epoch_array = scb.EpochArray(et_padded, sys="TDB")

print('Start time (UTC): ', scb.SpiceManager.et2utc(et_padded[0]))
print('End time   (UTC): ', scb.SpiceManager.et2utc(et_padded[-1]))
print(f'Arc length:        {(et_padded[-1] - et_padded[0]) / 3600:.1f} h')

# OD044 state at the start of the window
sc_state_0 = scb.SpiceManager.get_state(str(sc_id), et_padded[0], J2000, origin).values
earth_0 = scb.SpiceManager.get_state("399", et_padded[0], J2000, origin).values
print(f"Sun distance {np.linalg.norm(sc_state_0[:3]) / 1.495978707e8:.3f} AU, "
      f"Earth distance {np.linalg.norm(sc_state_0[:3] - earth_0[:3]) / 1.495978707e8:.3f} AU")

third_bodies = [
    "MERCURYBARYCENTER", "VENUSBARYCENTER", "EARTHBARYCENTER", "MARSBARYCENTER",
    "JUPITERBARYCENTER", "SATURNBARYCENTER", "URANUSBARYCENTER",
    "NEPTUNEBARYCENTER", "PLUTOBARYCENTER",
]
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[4], line 2
      1 # Scenario window: observation span of the two passes with a 1-hour pad on each side
----> 2 all_et_obs = np.unique(np.concatenate([s.observed_meas.meas_time_et.times.values for s in specs]))
      3 et_min_obs, et_max_obs = all_et_obs[0], all_et_obs[-1]
      4 # Output grid of the propagation, at most 60 s apart. The integrator steps by
      5 # its own tolerances and the filter interpolates the reference SPK and STMs at

NameError: name 'specs' is not defined

4. Measurement Editing and Data Weights#

Before the measurements are handed to the filter, gross outliers must be removed: a single bad point can bias the estimate or stall the iterations.

measurements.compute() evaluates every model against the OD044 ephemeris of the target, and measurements.summary() reports the residuals. Some rows are flagged before any editing:

  • the first five ranging rows of each pass are -1 placeholders, flagged when the file is read;

  • on pass 1, the first 25 Doppler rows (about the first 80 minutes) and the first ranging row, already a placeholder, were transmitted before the first ramp record of the file, so their computed value is NaN and they are flagged with a warning.

Why Huber regression?#

Ordinary least-squares trend fits are pulled toward outliers, defeating the purpose. Huber regression down-weights large residuals during the fit, producing a detrended residual sequence that is insensitive to the very points we want to flag.

MAD thresholding#

Outliers are identified via the Median Absolute Deviation of the detrended residuals \(d_i\):

\[\text{MAD} = \text{median}\!\left(|d_i - \text{median}(d)|\right)\]

Any observation with \(|d_i - \text{median}(d)| > n_\sigma \cdot 1.4826 \cdot \text{MAD}\) is flagged (the factor 1.4826 makes the MAD comparable to σ for Gaussian data). measurements.edit("huber_mad_filter", ...) applies this per dataset and then refits the dataset sigma from the surviving points. Flagged points are kept in the dataset but not processed by the filter.

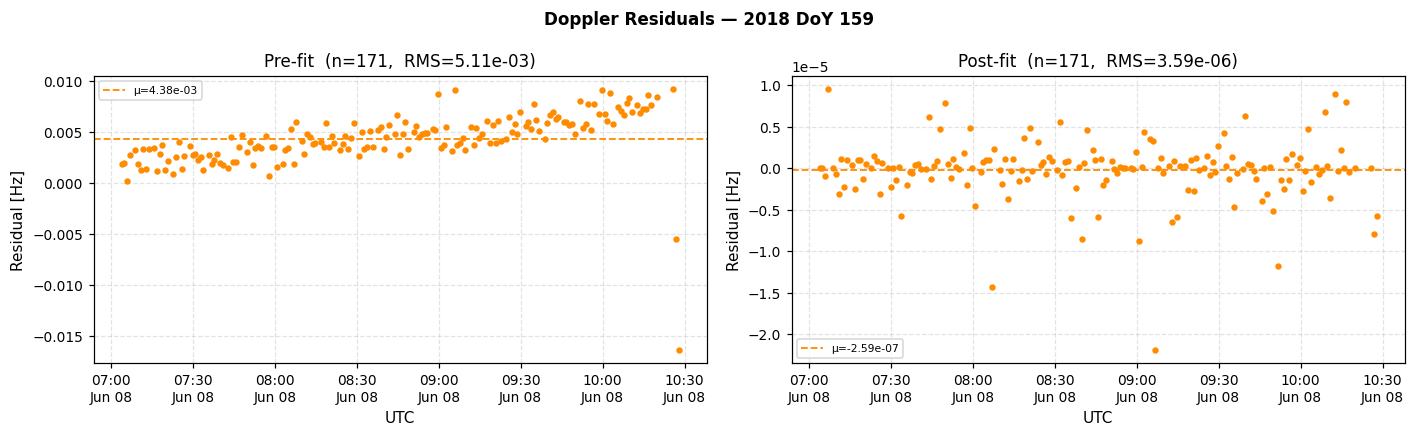

On these passes the editing flags no ranging rows, and 55 (pass 1) and 19 (pass 2) Doppler rows:

  • a contiguous block with residuals of several kHz: 52 rows, 96–147 minutes into pass 1, at about −6.9 kHz, and 14 rows, 41–54 minutes into pass 2, at about −5.5 kHz;

  • isolated gross outliers: one row of pass 1 and the first three rows of pass 2 at about −4.9×10⁵ Hz, and one row of pass 2 at 1.4×10⁸ Hz, which dominates the pre-edit Doppler RMS of that pass (8.6×10⁶ Hz);

  • three smaller outliers: two rows of pass 1 at −13 mHz and the last row of pass 2, at 0.6 Hz.

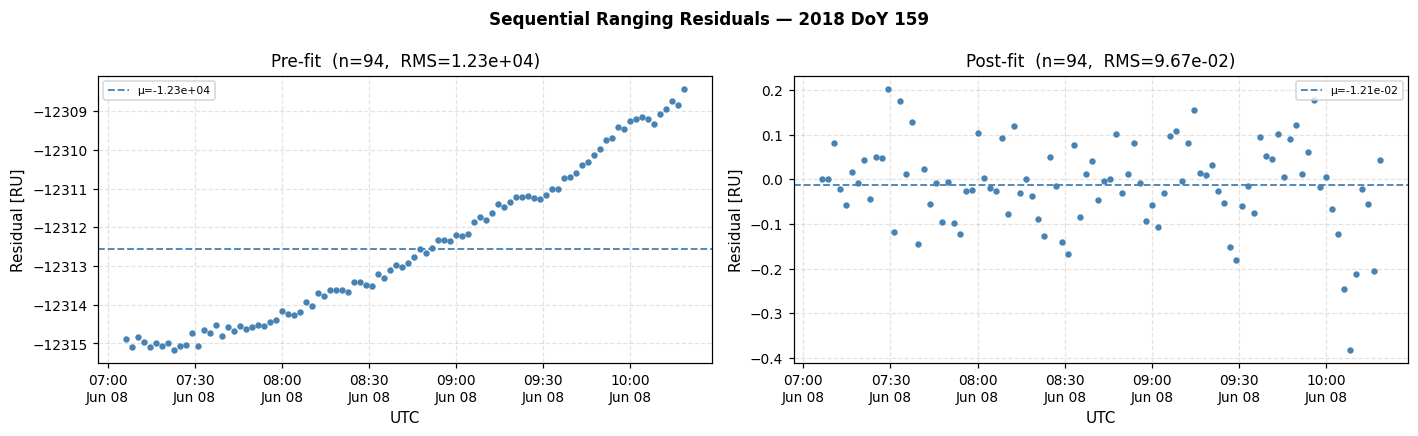

The ranging residual that remains is nearly constant, −18.6 RU (pass 1) and −17.0 RU (pass 2) on average, i.e. −2.6 and −2.4 m one-way: with the delays of Section 2 modelled, the observed ranges are 2.4–2.6 m shorter than the ones computed from OD044. The offset is about 1 % of the 247 m transponder delay, inside the ±4 m systematics of its in-house estimate (Section 1.1), and nearly the same on both passes, as expected from one transponder and one station. Without the delays the same residual is about 2025 RU (286 m).

Data weights#

The refitted sigmas measure the noise of each pass: about 0.5 m (3.5–3.9 RU) for ranging and 0.5–0.9 mHz for Doppler. A navigation filter weights its data by the total error it expects, which also includes what the models miss (media calibration errors, unmodelled delays, small dynamics errors). Weighting at the noise level would make the filter over-confident, so the weights are set to typical operational values:

Data

Weight

Equivalent

Sequential ranging

1 m one-way

≈ 7.1 RU

Doppler

5.6 mHz (floor; a larger refitted sigma is kept)

≈ 0.1 mm/s range rate at X-band

With these weights the post-fit residuals sit well inside one sigma, and a post-fit J/n well below 1 is expected (Section 6).

[5]:
# Residuals against the reconstructed ephemeris of OSIRIS-REx (OD044)
log = io.StringIO()
with contextlib.redirect_stdout(log), contextlib.redirect_stderr(log), \
        warnings.catch_warnings(record=True) as caught:
    warnings.simplefilter("always")
    measurements.compute(target=Orbiter, frame=frame)
# The log draws a progress bar per dataset; keep the media-correction and flagging lines
for line in log.getvalue().splitlines():
    if "computed measurements for the dataset" in line:
        print(line.strip().replace("Generating computed measurements for the dataset", "Dataset"))
    elif "media corrections" in line or "could not be computed" in line:
        print("  " + line.strip())
for w in caught:
    print(f"{w.category.__name__}: {str(w.message).split(' First:')[0]}")
print("\nBefore editing\n" + measurements.summary())

# The ramp-table warnings are raised again at every computation; the rows
# they concern are already flagged
warnings.filterwarnings("ignore", message=".*no ramp record at their transmit time.*")


def print_sigmas(title):
    print(title)
    for name, sigma in measurements.sigmas().items():
        value = float(np.asarray(getattr(sigma, 'values', sigma)).ravel()[0])
        if dataset_info[name][1] == "range":
            print(f"  {name:<18} {value:10.4g} RU  = {value * range_RU_m[name]:8.3f} m one-way")
        else:
            print(f"  {name:<18} {value * 1e3:10.4g} mHz")


# Huber detrend + MAD threshold, then refit each sigma from the surviving points
for spec in specs:
    measurements.edit("huber_mad_filter", dataset_name=spec.dataset_name, n_sigma=5.0)
print("\nAfter editing\n" + measurements.summary())
print_sigmas("\nNoise sigmas refitted by the editing")

# Data weights: 1 m one-way for ranging, Doppler floored at 5.6 mHz (0.1 mm/s)
range_weight_m = 1.0
doppler_floor = scb.ArrayWUnits(5.6e-3, 1 / sec)
for leaf in measurements.leaves:
    if dataset_info[leaf.dataset_name][1] == "range":
        leaf.model.sigma = scb.ArrayWUnits(range_weight_m / range_RU_m[leaf.dataset_name], km / km)
    elif float(np.ravel(leaf.model.sigma.values)[0]) < float(doppler_floor.values):
        leaf.model.sigma = doppler_floor
print_sigmas("\nData weights used by the filter")
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[5], line 6
      2 log = io.StringIO()
      3 with contextlib.redirect_stdout(log), contextlib.redirect_stderr(log), \
      4         warnings.catch_warnings(record=True) as caught:
      5     warnings.simplefilter("always")
----> 6     measurements.compute(target=Orbiter, frame=frame)
      7 # The log draws a progress bar per dataset; keep the media-correction and flagging lines
      8 for line in log.getvalue().splitlines():
      9     if "computed measurements for the dataset" in line:

NameError: name 'measurements' is not defined

5. Batch Filter: SRIFB with Stochastic Accelerations and Per-Pass Biases#

Batch SRIF#

scb.SRIFB processes all measurements of the arc together and estimates the state at the epoch of the a priori. The filter works in square-root information form: each measurement batch is folded into the information array by Householder triangularization, which keeps the solution well conditioned even with the wide range of scales in this state (km positions next to 10⁻¹² km/s² accelerations). After each solution the reference trajectory is re-integrated about the new estimate, and the iterations stop when the cost changes by less than filter_convergence_thr.

Estimated state#

Component

Size

Owner

Kind

A priori

σ

position

3

Orbiter_ref

dynamic

OD044 + random error

10 km per axis

velocity

3

Orbiter_ref

dynamic

OD044 + random error

1 cm/s per axis

a_pfogm

3 × 5

Orbiter_ref

dynamic

0

5×10⁻¹² km/s² (5 nm/s²) per axis

eta_srp

1

Orbiter_ref

static

1

0.5

range_bias_RU_DSS35

2 (passes 1, 2)

DSS-35

static

0 RU

2 m one-way (≈ 14 RU)

Choosing realistic a priori sigmas#

  • Position and velocity. 10 km and 1 cm/s per axis is a loose a priori, of the size left by a prediction several weeks old or by an imperfectly reconstructed maneuver. To make the test meaningful, the a priori is not OD044: it is OD044 plus a random error drawn from this covariance (seed fixed), about 7.8 km and 12 mm/s here.

  • Stochastic accelerations. The cannonball SRP acceleration on OSIRIS-REx at 1.31 AU is about 2.1×10⁻¹¹ km/s² with the nominal C_r = 0.8. A PFOGM σ of 5×10⁻¹² km/s² lets each batch absorb an error of roughly a quarter of it: the cannonball approximation of a box-and-wing spacecraft, thermal re-radiation, outgassing and attitude-control leaks. The value is chosen by the tuning of Section 10.

  • SRP scale factor. eta_srp = 1 ± 0.5: the cannonball area and C_r are known only roughly.

  • Range biases. Each pass gets its own bias with a σ of 2 m one-way, the typical level of DSN range calibration uncertainty from pass to pass. The a priori is 0: the station and transponder delays are modelled (Section 2), so the biases only carry the calibration error the delays leave. Against OD044 that error is −17 to −19 RU (−2.4 to −2.6 m, Section 4), about 1.2σ: the 2 m σ covers the pass-to-pass calibration error, but not all of the ±4 m systematics of the transponder delay.

Why the range bias needs a realistic a priori#

A constant range bias is nearly indistinguishable from a constant offset of the spacecraft along the line of sight: over 53 hours the Earth–spacecraft direction barely turns, so both produce almost the same residual signature. With two passes the data constrain the difference between the pass biases, but their common part remains tied to the geocentric range of the spacecraft and is set by the a priori: on this arc, moving the bias a priori by some amount moves both estimates, and the line-of-sight position, by the same amount. A bias σ much larger than the expected calibration error would let the line-of-sight position drift with it. Here the common level is set by the in-house transponder delay (Section 1.1), estimated on the Earth flyby precisely because there the geometry separates it from the position: the line-of-sight position of this fit is only as good as that calibration.

PFOGM stochastic accelerations#

The arc is divided into batches of fixed length: the window is split in two, about 27 h each, so each pass falls in its own batch. Batch \(k\) carries a 3-axis acceleration \(\mathbf{a}^{(k)}\) in J2000 that is active only during its batch and decays there as a first-order Gauss–Markov process,

\[\dot{\mathbf{a}}^{(k)} = -\frac{1}{\tau}\,\mathbf{a}^{(k)}, \qquad \tau = 1\ \text{day}.\]

In a batch filter the batch accelerations are estimated parameters with independent a priori sigmas, so process_noise=None. The batch grid continues over the three-day prediction of Section 8 (5 batches in all): the batches after the last measurement keep their a priori sigma, and mapping the covariance forward then accounts for the force-model error expected in prediction.

Implementation#

run_batch_od(pfogm_sigma, tag) builds the state, the force model, the propagator and the filter for a given PFOGM σ (None turns the stochastic accelerations off), so Section 10 can repeat the fit. The dynamical part of the state and the force model come from two helpers, dynamical_components() and force_model(), which Section 9 reuses to propagate the prediction. A separate Spacecraft object (Orbiter_ref, SPICE ID -1001) carries the reference trajectory, so its SPK never shadows the OD044 kernel. It returns the filter, the solution, and the column indices of each state component.

[6]:
# A priori sigmas
filter_pos_sigma    = 10.0       # [km]    per axis
filter_vel_sigma    = 1e-5       # [km/s]  per axis (1 cm/s)
filter_eta_sigma    = 0.5        # [-]     SRP scale factor
filter_bias_apriori = 0.0        # [RU]    calibration error left once the delays are modelled
filter_bias_sigma_m = 2.0        # [m]     one-way, per pass

# PFOGM stochastic accelerations: the window is split in equal batches, one per pass
pfogm_sigma        = 5e-12       # [km/s^2] per axis and batch
pfogm_batch_length = (et_padded[-1] - et_padded[0]) / len(pass_files)   # [s]
pfogm_tau          = 86400.0     # [s]     correlation time

# Iterations
filter_iterations      = 8
filter_convergence_thr = 1e-2

# The batch grid covers the arc and the 3-day prediction of Section 8
pred_span = 3 * 86400.0
pfogm_n_batches = int(np.ceil((et_padded[-1] + pred_span - et_padded[0]) / pfogm_batch_length))
print(f"PFOGM: {pfogm_n_batches} batches of {pfogm_batch_length / 3600:.1f} h, "
      f"{len(pass_files)} over the fit arc")
for k, (t_a, t_b) in enumerate(pass_spans, start=1):
    print(f"  pass {k} in batch {int((t_a - et_padded[0]) // pfogm_batch_length) + 1}"
          f" - {int((t_b - et_padded[0]) // pfogm_batch_length) + 1}")

a_srp = (4.56e-6 * float(Orbiter_cr_srp.values) * 12.0 / 1200.0
         / (np.linalg.norm(sc_state_0[:3]) / 1.495978707e8) ** 2 * 1e-3)
print(f"Cannonball SRP acceleration: {a_srp:.2e} km/s^2 (PFOGM sigma = {pfogm_sigma / a_srp:.0%} of it)")

# Perturbed a priori: OD044 plus a draw from the a priori covariance
rng = np.random.default_rng(2018)
dpos_0 = rng.normal(0.0, filter_pos_sigma, 3)
dvel_0 = rng.normal(0.0, filter_vel_sigma, 3)
print(f"A priori - OD044: |dr| = {np.linalg.norm(dpos_0):.2f} km, |dv| = {np.linalg.norm(dvel_0) * 1e6:.2f} mm/s")

# Reference spacecraft (distinct SPICE ID, so its SPK never shadows the OD044 ephemeris)
Orbiter_ref = scb.Spacecraft("orbiter_ref", -1001, Orbiter_mass, Orbiter_area, Orbiter_cr_srp)
Orbiter_ref.add_instrument([scb.Antenna("Antenna_for_radiometric", spice_id=-1000)])

# Range bias state names, one vector per station (the tag must be \w+)
bias_names = {GS_name: f"range_bias_RU_{GS_name.replace('-', '')}" for GS_name in stations}


def dynamical_components(owner, pos, vel, a_pfogm=None, eta=1.0):
    """Position, velocity, PFOGM batch accelerations (None: no PFOGM) and SRP scale factor of `owner`."""
    components = [
        ("position", 3, "estimated", "dynamic", owner, scb.ArrayWFrame(scb.ArrayWUnits(pos, km), frame)),
        ("velocity", 3, "estimated", "dynamic", owner, scb.ArrayWFrame(scb.ArrayWUnits(vel, km / sec), frame)),
    ]
    if a_pfogm is not None:
        components.append(("a_pfogm", len(a_pfogm), "estimated", "dynamic", owner,
                           scb.ArrayWFrame(scb.ArrayWUnits(np.asarray(a_pfogm, dtype=float), km / sec**2), J2000)))
    components.append(("eta_srp", 1, "estimated", "static", owner,
                       scb.ArrayWFrame(scb.ArrayWUnits(eta, unitless), None)))
    return components


def force_model(owner, use_pfogm=True):
    """Sun point mass, planetary third bodies, cannonball SRP and, optionally, the PFOGM accelerations."""
    kwargs = dict(primary_body=owner, third_bodies=third_bodies, cannonball_SRP=True)
    if use_pfogm:
        kwargs.update(piecewise_first_order_gauss_markov=True, pfogm_batch_length=pfogm_batch_length,
                      pfogm_n_batches=pfogm_n_batches, pfogm_beta=np.full(3, 1.0 / pfogm_tau),
                      t0=epoch_array[0])
    return scb.ForceModelTranslation(**kwargs)


def run_batch_od(pfogm_sigma, tag, verbose=True):
    """SRIFB fit with PFOGM sigma `pfogm_sigma` [km/s^2] (None: no PFOGM)."""
    use_pfogm = pfogm_sigma is not None
    components = dynamical_components(Orbiter_ref, sc_state_0[0:3] + dpos_0, sc_state_0[3:6] + dvel_0,
                                      np.zeros(3 * pfogm_n_batches) if use_pfogm else None)
    sigmas = [scb.ArrayWUnits(filter_pos_sigma, km)] * 3 + [scb.ArrayWUnits(filter_vel_sigma, km / sec)] * 3
    if use_pfogm:
        sigmas += [scb.ArrayWUnits(pfogm_sigma, km / sec**2)] * (3 * pfogm_n_batches)
    sigmas.append(scb.ArrayWUnits(filter_eta_sigma, unitless))
    # One bias per pass, a priori sigma converted from metres to the RU of each pass
    for GS_name, GS in stations.items():
        models = range_models_by_station[GS_name]
        components.append((bias_names[GS_name], len(models), "estimated", "static", GS,
                           scb.ArrayWFrame(scb.ArrayWUnits(np.full(len(models), filter_bias_apriori), unitless), None)))
        sigmas += [scb.ArrayWUnits(filter_bias_sigma_m / range_RU_m[m.name], unitless) for m in models]

    state_ref = scb.StateArray(epoch=epoch_array[0], origin=origin,
                               state=scb.StateDefinition.from_components(components))
    prop = scb.Propagator(primary_body=Orbiter_ref, state_vector=state_ref, tspan=epoch_array,
                          force_models=force_model(Orbiter_ref, use_pfogm))

    # Reference trajectories of a previous run with the same tag
    for f in tut_kernels_path.glob(f"orex_mp_{tag}*"):
        f.unlink()
    settings = scb.FilterSettings(
        # from_list=True takes standard deviations
        initial_covariance=scb.CovarianceMatrix(sigmas, epoch_array[0], from_list=True),
        process_noise=None,
        output=scb.OutputSettings(save_trajectory_stms=False),
    )
    filt = scb.SRIFB(propagator=prop, settings=settings, measurements=measurements,
                     traj_name=f"orex_mp_{tag}_it1.bsp", traj_dir=str(tut_kernels_path))
    sol, n_it, conv = filt.fit(max_iterations=filter_iterations, convergence_threshold=filter_convergence_thr,
                               verbose=verbose, traj_name=f"orex_mp_{tag}.bsp", traj_dir=str(tut_kernels_path))
    # Column indices of each state component
    cols, c = {}, 0
    for name, size, *_ in components:
        cols[name] = np.arange(c, c + size)
        c += size
    return filt, sol, n_it, conv, cols


# Each iteration writes its own reference SPK and parameters sidecar, so the
# sidecar lookup warns that several files match; it picks the most recent one,
# which belongs to the latest iteration
warnings.filterwarnings("ignore", message="Multiple matching JSON files found")

t_start = time.time()
log = io.StringIO()
with contextlib.redirect_stdout(log), contextlib.redirect_stderr(log), \
        warnings.catch_warnings(record=True) as caught:
    filter_od, solution, n_iters, converged, cols = run_batch_od(pfogm_sigma, "nominal")
# The filter logs every propagation, every measurement batch and one line per
# measurement epoch: keep the iteration summaries and any warning
summary_keys = ("ITERATION", "RMS State Deviation", "Cost function", "Relative cost change",
                "CONVERGED", "Triggered by")
for line in log.getvalue().splitlines():
    if any(k in line for k in summary_keys):
        print(line)
for w in caught:
    print(f"{w.category.__name__}: {w.message}")
print(f"\nNominal fit: {n_iters} iterations, converged = {converged}, {time.time() - t_start:.0f} s")
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[6], line 10
      6 filter_bias_sigma_m = 2.0        # [m]     one-way, per pass
      7
      8 # PFOGM stochastic accelerations: the window is split in equal batches, one per pass
      9 pfogm_sigma        = 5e-12       # [km/s^2] per axis and batch
---> 10 pfogm_batch_length = (et_padded[-1] - et_padded[0]) / len(pass_files)   # [s]
     11 pfogm_tau          = 86400.0     # [s]     correlation time
     12
     13 # Iterations

NameError: name 'et_padded' is not defined

6. Fit Results#

Estimated parameters#

The quality of the fit is summarized by the normalized cost \(J/n = \frac{1}{n}\sum_i (r_i/\sigma_i)^2\) of the post-fit residuals \(r_i\) against the data weights \(\sigma_i\). J/n ≈ 1 means the residuals match the weights; here it is about 0.1, as expected from the conservative weights of Section 4: the ranging noise is about 0.5 m against a 1 m weight, and the Doppler noise 0.5–0.9 mHz against a 5.6 mHz weight.

The final state and covariance are read with solution.propagate_state_covariance(), here at the last measurement epoch:

  • eta_srp ≈ 1.26 ± 0.21, i.e. an effective C_r ≈ 1.01 for the cannonball model. C_r = 0.8 would leave a drift of up to about 100 m over the arc.

  • The two range biases come out at −6.5 and +6.5 RU, 0.9 m below and above the 0 RU a priori, with sigmas of 1.9 m against the 2 m a priori. Their mean is the a priori itself: the data cannot separate the common level from the line-of-sight position (Section 5). Their difference, 13 RU (1.8 m), is shared with the plane-of-sky position, still kilometres off (below); against OD044 the two passes differ by only about 2 RU.

  • The 2.4–2.6 m by which the modelled delays exceed the OD044 residual level (Section 4) therefore shows up as a line-of-sight offset against OD044 in the comparison below.

[7]:
def normalized_cost(sol):
    """Overall and per-dataset J/n of the post-fit residuals."""
    per_dataset, all_norm = {}, []
    for name, res in sol.postfits.items():
        r = np.array(res, dtype=float).reshape(-1, 2)   # (residual, sigma) pairs
        per_dataset[name] = np.mean((r[:, 0] / r[:, 1]) ** 2)
        all_norm.append(r[:, 0] / r[:, 1])
    all_norm = np.concatenate(all_norm)
    return np.mean(all_norm ** 2), per_dataset, len(all_norm)


J_all, J_ds, n_meas = normalized_cost(solution)
print(f"Post-fit J/n = {J_all:.3f} over {n_meas} measurements")
for name, J in J_ds.items():
    print(f"  {name:<18} J/n = {J:.3f}")

# Final state and covariance at the last measurement epoch
t_end = scb.EpochArray([solution.timestamps[-1]], sys="TDB")
state_end, P_end = solution.propagate_state_covariance(t_end, use_smoothed=False, use_all_data=True)[0]
x_end = np.asarray(state_end.values0.values, dtype=float).ravel()

j = cols["eta_srp"][0]
print(f"\neta_srp = {x_end[j]:.3f} +/- {np.sqrt(P_end[j, j]):.3f}  "
      f"(effective C_r = {x_end[j] * float(Orbiter_cr_srp.values):.2f})")
print("Range biases (a priori "
      f"{filter_bias_apriori:.0f} RU +/- {filter_bias_sigma_m:.0f} m):")
for GS_name, models in range_models_by_station.items():
    for m, jj in zip(models, cols[bias_names[GS_name]]):
        b, s = x_end[jj], np.sqrt(P_end[jj, jj])
        print(f"  {m.name:<16} {b:8.1f} +/- {s:4.1f} RU   "
              f"shift {(b - filter_bias_apriori) * range_RU_m[m.name]:+.2f} +/- {s * range_RU_m[m.name]:.2f} m")
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[7], line 12
      8     all_norm = np.concatenate(all_norm)
      9     return np.mean(all_norm ** 2), per_dataset, len(all_norm)
     10
     11
---> 12 J_all, J_ds, n_meas = normalized_cost(solution)
     13 print(f"Post-fit J/n = {J_all:.3f} over {n_meas} measurements")
     14 for name, J in J_ds.items():
     15     print(f"  {name:<18} J/n = {J:.3f}")

NameError: name 'solution' is not defined

Pre- and post-fit residuals#

The pre-fit residuals of the first iteration are taken against the reference trajectory integrated from the perturbed a priori: the 8 km / 12 mm/s a priori error shows up as 14 000–27 000 RU in ranging and 0.6 Hz in Doppler, changing over the arc. The post-fit residuals of the converged solution are centred on zero and well inside the data weights quoted in the legends; the Doppler of pass 1 keeps a slow drift of about 0.5 mHz, a tenth of its weight. Only the points kept by the editing appear.

[8]:
palette = scb.Plotting.color_palettes["scb_palette"]
pass_colors = dict(zip(range(1, len(pass_files) + 1), [palette[0], palette[2], palette[1]]))
band_units = {"range": "RU", "doppler": "Hz"}

# Prefits of the first iteration (against the a priori) and final postfits
first_iteration = filter_od._solution_history[0]
fig, axes = plt.subplots(2, 2, figsize=(14, 7), sharex=True)
fig.suptitle("OSIRIS-REx DSN residuals — SRIFB + PFOGM", fontweight="bold")
for col, (res, eps, label) in enumerate([
    (first_iteration.prefits, first_iteration.prefit_epochs, "Pre-fit (a priori)"),
    (solution.postfits, solution.postfit_epochs, "Post-fit"),
]):
    for row, band in enumerate(["range", "doppler"]):
        ax = axes[row, col]
        for name, (GS_name, ds_band, k) in dataset_info.items():
            if ds_band != band or not res.get(name):
                continue
            r = np.array(res[name], dtype=float).reshape(-1, 2)
            t_h = (np.asarray(eps[name], dtype=float) - et_min_obs) / 3600.0
            # The data weight goes in the legend: +/-3-sigma lines would
            # flatten the post-fits, which sit well inside them
            ax.plot(t_h, r[:, 0], ".", ms=3, color=pass_colors[k],
                    label=f"Pass {k} (weight {r[:, 1].max():.3g} {band_units[band]})")
        ax.axhline(0, color="k", lw=0.5)
        ax.set_title(f"{label}: {band.capitalize()}")
        ax.set_ylabel(f"Residual [{band_units[band]}]")
        ax.legend(loc="best", fontsize=8)
for ax in axes[1]:
    ax.set_xlabel("Time since first measurement [h]")
plt.tight_layout()
plt.show()

print("Post-fit residuals (mean / RMS, in units of the data weight):")
for name in filter_od.measurement_data.dataset_names:
    r = np.array(solution.postfits[name], dtype=float).reshape(-1, 2)
    print(f"  {name:<18} n = {len(r):4d}  mean {np.mean(r[:, 0] / r[:, 1]):+6.2f}  "
          f"RMS {np.sqrt(np.mean((r[:, 0] / r[:, 1]) ** 2)):5.2f}")
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[8], line 2
      1 palette = scb.Plotting.color_palettes["scb_palette"]
----> 2 pass_colors = dict(zip(range(1, len(pass_files) + 1), [palette[0], palette[2], palette[1]]))
      3 band_units = {"range": "RU", "doppler": "Hz"}
      4
      5 # Prefits of the first iteration (against the a priori) and final postfits

NameError: name 'pass_files' is not defined

Comparison with OD044#

The estimate and its covariance are mapped to the measurement epochs and differenced against OD044. Cartesian components hide the geometry, so the differences are expressed in the RTN frame of the OD044 orbit relative to Earth, built from the spacecraft position \(\mathbf{r}\) and velocity \(\mathbf{v}\) with respect to Earth (scb.DynamicalUtils.rtn):

  • R — \(\hat{e}_R = \mathbf{r}/\lVert\mathbf{r}\rVert\), along the Earth–spacecraft direction: the line of sight that range and Doppler measure;

  • N — \(\hat{e}_N \propto \mathbf{r} \times \mathbf{v}\), normal to the Earth-relative motion;

  • T — \(\hat{e}_T = \hat{e}_N \times \hat{e}_R\), completing the triad.

T and N are both perpendicular to the line of sight, so they span the plane of sky.

On a 53-hour arc at 0.48 AU, radiometric data pin down the line of sight to metres, while the plane-of-sky position is constrained only through the dynamics and the diurnal Doppler signature of the station’s rotation. The expected picture is therefore metre-level R errors and kilometre-level T and N errors, each inside its own covariance.

  • The R position difference, about 2.3 m RMS against a 1.9 m sigma (1.2σ), is the 2.4–2.6 m offset of the modelled delays against OD044 (Sections 4 and 6): the line-of-sight agreement is only as good as the transponder delay calibration, here well inside its ±4 m systematics.

  • The T and N positions differ by 7.4 and 9.5 km RMS, against sigmas of 7.6 and 4.8 km: N sits at 2σ.

  • The R velocity sigma (about 0.34 mm/s) is larger than the 0.1 mm/s Doppler weight because a plane-of-sky position error tilts the line of sight, and the velocity along a fixed R axis must compensate to reproduce the observed range rate.

  • The T and N velocities are not determined on this arc: their sigmas stay at the 1 cm/s a priori, and the differences of about 1.9 mm/s (T) and 4.2 mm/s (N) are what remains of the a priori velocity error.

A single number summarizes the 3-D position consistency: the Mahalanobis distance \(\chi^2 = \delta\mathbf{r}^\top P_{rr}^{-1}\,\delta\mathbf{r}\), which follows a \(\chi^2\) distribution with 3 degrees of freedom if the error is consistent with the covariance (mean 3, 95 % below 7.81). Over the arc it has a mean of 6.0 and a maximum of 7.6, below the 95 % bound: the N error at 2σ and the R offset at 1.2σ both add to it.

[9]:
def rtn_axes(t):
    """OD044 states and the RTN axes (rows) of the Earth-relative OD044 orbit at epochs t."""
    od044 = np.array([scb.SpiceManager.get_state(str(sc_id), et, J2000, origin).values for et in t])
    earth = np.array([scb.SpiceManager.get_state("399", et, J2000, origin).values for et in t])
    axes = np.array([scb.DynamicalUtils.rtn(s[0:3], s[3:6])[0].T for s in od044 - earth])
    return od044, axes


def compare_od044(sol, t):
    """Estimate - OD044 in Earth RTN, with 1-sigma and the position chi^2, at epochs t."""
    pairs = sol.propagate_state_covariance(scb.EpochArray(t, sys="TDB"), use_smoothed=False, use_all_data=True)
    X = np.array([np.asarray(s.values0.values, dtype=float).ravel()[:6] for s, _ in pairs])
    P = np.array([C[:6, :6] for _, C in pairs])
    od044, A = rtn_axes(t)
    dr, dv = X[:, :3] - od044[:, :3], X[:, 3:6] - od044[:, 3:6]
    err_r = np.einsum("nij,nj->ni", A, dr)
    err_v = np.einsum("nij,nj->ni", A, dv)
    sig_r = np.sqrt(np.array([np.diag(a @ p[:3, :3] @ a.T) for a, p in zip(A, P)]))
    sig_v = np.sqrt(np.array([np.diag(a @ p[3:, 3:] @ a.T) for a, p in zip(A, P)]))
    chi2 = np.array([d @ np.linalg.solve(p[:3, :3], d) for d, p in zip(dr, P)])
    return err_r, err_v, sig_r, sig_v, chi2


fit_r, fit_v, fit_sr, fit_sv, fit_chi2 = compare_od044(solution, solution.timestamps)
print("Estimate - OD044 over the fit arc (RMS / mean 1-sigma):")
for j, comp in enumerate(["R", "T", "N"]):
    print(f"  {comp:<5} position {np.sqrt(np.mean(fit_r[:, j]**2)) * 1e3:8.1f} m  / {np.mean(fit_sr[:, j]) * 1e3:7.1f} m   "
          f"velocity {np.sqrt(np.mean(fit_v[:, j]**2)) * 1e6:6.3f} / {np.mean(fit_sv[:, j]) * 1e6:6.3f} mm/s")
print(f"Position chi^2: mean {fit_chi2.mean():.2f}, max {fit_chi2.max():.2f} (95 % bound 7.81)")

# One segment per pass, so the band is not drawn across the gaps
t_h = (solution.timestamps - et_min_obs) / 3600.0
segments = np.split(np.arange(len(t_h)), np.nonzero(np.diff(t_h) > 0.5)[0] + 1)
fig, axes = plt.subplots(2, 3, figsize=(14, 7), sharex=True)
fig.suptitle("Fit arc: estimate − OD044 (±3σ)", fontweight="bold")
for j, comp in enumerate(["R", "T", "N"]):
    for row, (err, sig, scale, unit) in enumerate([
        (fit_r[:, j], fit_sr[:, j], 1e3, "m"),
        (fit_v[:, j], fit_sv[:, j], 1e6, "mm/s"),
    ]):
        ax = axes[row, j]
        for i, seg in enumerate(segments):
            ax.plot(t_h[seg], err[seg] * scale, color=palette[0], lw=1.2, label="estimate − OD044" if i == 0 else None)
            ax.fill_between(t_h[seg], -3 * sig[seg] * scale, 3 * sig[seg] * scale, color=palette[1], alpha=0.25,
                            label="±3σ" if i == 0 else None)
        ax.axhline(0, color="k", lw=0.5, ls="--")
        ax.set_title(f"{'Position' if row == 0 else 'Velocity'} {comp}")
        ax.set_ylabel(f"Error [{unit}]")
axes[0, 0].legend(fontsize=8)
for ax in axes[1]:
    ax.set_xlabel("Time since first measurement [h]")
plt.tight_layout()
plt.show()
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[9], line 24
     20     chi2 = np.array([d @ np.linalg.solve(p[:3, :3], d) for d, p in zip(dr, P)])
     21     return err_r, err_v, sig_r, sig_v, chi2
     22
     23
---> 24 fit_r, fit_v, fit_sr, fit_sv, fit_chi2 = compare_od044(solution, solution.timestamps)
     25 print("Estimate - OD044 over the fit arc (RMS / mean 1-sigma):")
     26 for j, comp in enumerate(["R", "T", "N"]):
     27     print(f"  {comp:<5} position {np.sqrt(np.mean(fit_r[:, j]**2)) * 1e3:8.1f} m  / {np.mean(fit_sr[:, j]) * 1e3:7.1f} m   "

NameError: name 'solution' is not defined

7. Stochastic Accelerations#

scb.Plotting.plot_fogm_parameters_estimate() plots the PFOGM acceleration of the active batch at each measurement epoch with its ±3σ band. It reads the filter covariance by epoch index, so it must be given the measurement epochs (solution.timestamps).

The second figure shows every batch, including the ones after the last measurement: the batch accelerations are constant until their batch starts, so the state at the initial epoch holds the starting value of every batch. Two things to read from it:

  • The estimated accelerations are small against their sigmas. The two batches of the fit arc are pulled to at most 1.7 nm/s², with sigmas of 84–95 % of the a priori: two passes of 5–8 hours from 0.48 AU cannot resolve 27-hour accelerations of this size component by component. That is expected, and it is why their strength cannot be tuned from the post-fit residuals (Section 10).

  • The prediction batches keep their a priori sigma. No data constrain them, so they carry the full assumed force-model uncertainty into the prediction of Section 8.

[10]:
meas_epochs = scb.EpochArray(solution.timestamps, sys="TDB")
scb.Plotting.get_fig_handle(
    scb.Plotting.plot_fogm_parameters_estimate(
        solution, meas_epochs, 3,
        title=f"PFOGM accelerations ({pfogm_batch_length / 3600:.1f} h batches)",
        use_smoothed=False,
    )
)
plt.show()

# Every batch: starting values from the state at the initial epoch
t_0 = scb.EpochArray([et_padded[0]], sys="TDB")
state_0, P_0 = solution.propagate_state_covariance(t_0, use_smoothed=False, use_all_data=True)[0]
ia = cols["a_pfogm"]
a_hat = np.asarray(state_0.values0.values, dtype=float).ravel()[ia].reshape(-1, 3)
a_sig = np.sqrt(np.diag(P_0)[ia]).reshape(-1, 3)
batch_start_h = (et_padded[0] + pfogm_batch_length * np.arange(pfogm_n_batches) - et_min_obs) / 3600.0
batch_mid_h = batch_start_h + pfogm_batch_length / 7200.0
data_end_h = (et_max_obs - et_min_obs) / 3600.0

fig, axes = plt.subplots(3, 1, figsize=(13, 8), sharex=True)
fig.suptitle("PFOGM batch accelerations (J2000): estimate ± 3σ", fontweight="bold")
nm = 1e12   # km/s^2 -> nm/s^2
for j, (ax, comp) in enumerate(zip(axes, "xyz")):
    for t_a, t_b in pass_spans:
        ax.axvspan((t_a - et_min_obs) / 3600, (t_b - et_min_obs) / 3600, color=palette[1], alpha=0.15)
    ax.errorbar(batch_mid_h, a_hat[:, j] * nm, yerr=3 * a_sig[:, j] * nm, fmt="o", ms=4,
                color=palette[0], capsize=3, label="estimate ± 3σ")
    ax.axhline(3 * pfogm_sigma * nm, color="k", lw=0.8, ls=":", label="a priori ± 3σ")
    ax.axhline(-3 * pfogm_sigma * nm, color="k", lw=0.8, ls=":")
    ax.axvline(data_end_h, color="k", lw=1.0, ls="--", label="last measurement")
    ax.set_ylabel(f"$a_{comp}$ [nm/s²]")
axes[0].legend(loc="upper right", fontsize=8, ncol=3)
axes[-1].set_xlabel("Time since first measurement [h]  (shaded: tracking passes)")
plt.tight_layout()
plt.show()

with_data = batch_start_h < data_end_h
print(f"Batches in the fit arc: sigma / a priori = {np.min(a_sig[with_data] / pfogm_sigma):.2f} - "
      f"{np.max(a_sig[with_data] / pfogm_sigma):.2f}, "
      f"largest |estimate| = {np.max(np.abs(a_hat[with_data])) * nm:.1f} nm/s^2")
print(f"Prediction batches: sigma / a priori = {np.min(a_sig[~with_data] / pfogm_sigma):.2f} - "
      f"{np.max(a_sig[~with_data] / pfogm_sigma):.2f}")
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[10], line 1
----> 1 meas_epochs = scb.EpochArray(solution.timestamps, sys="TDB")
      2 scb.Plotting.get_fig_handle(
      3     scb.Plotting.plot_fogm_parameters_estimate(
      4         solution, meas_epochs, 3,

NameError: name 'solution' is not defined

8. Forward-Prediction Consistency Test#

Post-fit residuals only show that the filter can explain the data it was given. The test that matters for navigation is whether the predicted trajectory stays inside its predicted covariance. The solution and its covariance are mapped from the last measurement to three days later, hourly, with solution.propagate_state_covariance(..., use_all_data=True), which re-integrates the trajectory and the state transition matrix beyond the fit arc, and differenced against OD044.

Two diagnostics:

  • Error against its 3σ envelope, per R/T/N component. The envelope grows with time as the PFOGM sigmas of the prediction batches and the uncertainty of eta_srp map into position. In the plane of sky (T and N), error and sigma are both dominated by the a priori error that the 53-hour arc cannot remove (Section 6); the PFOGM σ mainly sets how fast the R envelope grows.

  • Normalized errors and :math:`chi^2`. \(e/\sigma\) per component should stay mostly within ±3, and the 3-D position \(\chi^2\) below the 7.81 (95 %) and 14.16 (99.73 %) bounds of a \(\chi^2\) with 3 degrees of freedom. A \(\chi^2\) that keeps growing means the covariance is optimistic; values persistently far below 3 mean it is pessimistic.

OD044 is a reconstruction, not truth, but it was built with tracking data beyond this arc, so it is a fair reference for a three-day prediction at the metre level.

On this arc the prediction \(\chi^2\) starts at 7.55, its end-of-fit value, and falls to 2.0 at +72 h (mean 3.2) as the covariance grows: it stays below the 95 % bound throughout. The R error grows from −3 m to −37 m at +72 h against a 156 m sigma, while T and N barely change from their end-of-arc values (T within 1σ, N within 1.9σ).

[11]:
t_pred = et_max_obs + np.arange(0.0, pred_span + 1.0, 3600.0)
pr_r, pr_v, pr_sr, pr_sv, pr_chi2 = compare_od044(solution, t_pred)
pred_h = (t_pred - et_max_obs) / 3600.0

print(" time   |      R pos err / 1-sigma [m]      |     T / N err [km] (1-sigma)      |  chi^2")
for i in [0, 6, 12, 24, 48, 72]:
    print(f"+{i:3d} h  |  {pr_r[i, 0] * 1e3:8.1f} / {pr_sr[i, 0] * 1e3:7.1f}"
          f"                 |  {pr_r[i, 1]:6.2f} ({pr_sr[i, 1]:.2f}) / {pr_r[i, 2]:6.2f} ({pr_sr[i, 2]:.2f})"
          f"         |  {pr_chi2[i]:5.2f}")
print(f"\nchi^2 over the prediction: mean {pr_chi2.mean():.2f}, max {pr_chi2.max():.2f}, "
      f"{np.mean(pr_chi2 < 7.81):.0%} below 7.81")

fig, axes = plt.subplots(2, 3, figsize=(14, 7), sharex=True)
fig.suptitle("3-day prediction: estimate − OD044 (±3σ)", fontweight="bold")
for j, comp in enumerate(["R", "T", "N"]):
    for row, (err, sig, scale, unit) in enumerate([
        (pr_r[:, j], pr_sr[:, j], 1e3, "m"),
        (pr_v[:, j], pr_sv[:, j], 1e6, "mm/s"),
    ]):
        ax = axes[row, j]
        ax.plot(pred_h, err * scale, color=palette[0], lw=1.4, label="estimate − OD044")
        ax.fill_between(pred_h, -3 * sig * scale, 3 * sig * scale, color=palette[1], alpha=0.25, label="±3σ")
        ax.axhline(0, color="k", lw=0.5, ls="--")
        ax.set_title(f"{'Position' if row == 0 else 'Velocity'} {comp}")
        ax.set_ylabel(f"Error [{unit}]")
axes[0, 0].legend(fontsize=8)
for ax in axes[1]:
    ax.set_xlabel("Time since last measurement [h]")
plt.tight_layout()
plt.show()

fig, axes = plt.subplots(1, 2, figsize=(14, 4.5))
for j, comp in enumerate(["R", "T", "N"]):
    axes[0].plot(pred_h, pr_r[:, j] / pr_sr[:, j], color=palette[j], lw=1.4, label=comp)
for y in (-3, 3):
    axes[0].axhline(y, color="k", lw=0.8, ls="--")
axes[0].set_title("Normalized position error $e/\\sigma$")
axes[0].set_xlabel("Time since last measurement [h]")
axes[0].legend(fontsize=8)
axes[1].semilogy(pred_h, pr_chi2, color=palette[0], lw=1.4, label="$\\chi^2$ (3 dof)")
axes[1].axhline(7.81, color="k", lw=0.8, ls="--", label="95 % (7.81)")
axes[1].axhline(14.16, color="k", lw=0.8, ls=":", label="99.73 % (14.16)")
axes[1].set_title("Position Mahalanobis distance")
axes[1].set_xlabel("Time since last measurement [h]")
axes[1].legend(fontsize=8)
plt.tight_layout()
plt.show()
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[11], line 1
----> 1 t_pred = et_max_obs + np.arange(0.0, pred_span + 1.0, 3600.0)
      2 pr_r, pr_v, pr_sr, pr_sv, pr_chi2 = compare_od044(solution, t_pred)
      3 pred_h = (t_pred - et_max_obs) / 3600.0
      4

NameError: name 'et_max_obs' is not defined

9. Prediction Test on a Third Pass#

Section 8 compares the prediction with OD044, which is itself an estimate. A third DSS-35 pass, on 2018 July 6 (DoY 187, 05:05–09:35 UTC), tests it against the measurements themselves. The pass starts about 45 hours after the last measurement of the fit and is not used in it: the question is whether the measurements predicted by the solution match the observed ones within the predicted uncertainty, i.e. whether the pre-fit residuals of the new pass are good, as a navigation team checks before it processes a new pass.

The test takes four steps:

  1. Predicted trajectory. The estimated state at the start of the window (position, velocity, every PFOGM batch and eta_srp, Section 7) is propagated with the same force model to the end of pass 3 and written to an SPK. A separate Spacecraft (Orbiter_pred, SPICE ID -1002), with its SPK in its own folder, keeps this trajectory from shadowing OD044 or the reference trajectory of the fit.

  2. Measurement models. Pass 3 gets its own ranging and Doppler models and media corrections, built as in Section 2, in a separate MeasurementSpec. Its range bias is not estimated, so the ranging model applies the delays of Section 2, station and transponder, and the 0 RU a priori bias of the fitted passes (meas_bias).

  3. Residuals. The pass is computed against OD044 and edited with the Huber + MAD filter of Section 4, then computed against the prediction; only the points kept by the editing are used. The residuals against OD044 are a baseline: they contain the data noise, the media errors and the error of the modelled delays, but no prediction error.

  4. Predicted uncertainty. The covariance of the solution is mapped to the epochs of pass 3 with solution.propagate_state_covariance() and projected on each measurement through its geometric partials. With \(\boldsymbol{\rho}\) and \(\Delta\mathbf{v}\) the position and velocity of the spacecraft relative to the station, \(\rho = \lVert\boldsymbol{\rho}\rVert\), \(\hat{\boldsymbol{\rho}} = \boldsymbol{\rho}/\rho\) and \(\dot\rho = \hat{\boldsymbol{\rho}}\cdot\Delta\mathbf{v}\):

\[\frac{\partial \rho}{\partial \mathbf{r}} = \hat{\boldsymbol{\rho}}^\top, \qquad \frac{\partial \dot\rho}{\partial \mathbf{r}} = \frac{(\Delta\mathbf{v} - \dot\rho\,\hat{\boldsymbol{\rho}})^\top}{\rho}, \qquad \frac{\partial \dot\rho}{\partial \mathbf{v}} = \hat{\boldsymbol{\rho}}^\top,\]

scaled to RU (one RU of round-trip ranging per RU metres of one-way range, Section 2) and to Hz (\(2 M_2 f_{ul}/c\) per unit of range rate, with the turnaround ratio \(M_2 = 880/749\)). The predicted variance of a residual adds the data weight of Section 4 and, for ranging, the 2 m uncertainty of the bias of the new pass:

\[\sigma^2_{\text{pred}} = \mathbf{h}\,P_{6\times6}\,\mathbf{h}^\top + \sigma^2_{\text{bias}} + \sigma^2_{\text{weight}}.\]

The prediction passes the test if its residuals stay inside \(\pm 3\sigma_{\text{pred}}\) and their RMS normalized by \(\sigma_{\text{pred}}\) is about 1 or below.

[12]:
@contextlib.contextmanager
def quiet():
    """Silence the output and warnings of a computation (also used by the repeated fits of Section 10)."""
    with contextlib.redirect_stdout(io.StringIO()), contextlib.redirect_stderr(io.StringIO()), \
            warnings.catch_warnings():
        warnings.simplefilter("ignore")
        yield


# Pass 3: same station, models built as in Section 2, never handed to the filter
trk_file_3 = data.trk_file_187_dss35.path
GS = stations["DSS-35"]
# Its bias is not estimated: the ranging model applies the delays of Section 2
# and the a priori bias of the fitted passes
range_3 = scb.SequentialRangingReal("Range 3 DSS-35", GS, sigma=sranging_sigma, electronic_delays=True,
                                    meas_bias=filter_bias_apriori)
doppler_3 = scb.DopplerReal("Doppler 3 DSS-35", GS, sigma=doppler_sigma, electronic_delays=True)
sr_obs_3 = range_3.observed_measurements(trk_file_3, meas_name="2W_sranging", units=km / km,
                                         sc_transponder_delay_RU=scft_transpd_delay)
doppler_obs_3 = doppler_3.observed_measurements(trk_file_3, meas_name="2W_doppler", units=1 / sec,
                                                sc_transponder_delay_RU=scft_transpd_delay)
range_3 = add_media_corrections(sr_obs_3, range_3, GS, "Media range 3")
doppler_3 = add_media_corrections(doppler_obs_3, doppler_3, GS, "Media Doppler 3")
pass3 = scb.MeasurementSpec.many(
    scb.MeasurementSpec(model=range_3, observed_meas=sr_obs_3, dataset_name=range_3.name,
                        file_label="real_range_3"),
    scb.MeasurementSpec(model=doppler_3, observed_meas=doppler_obs_3, dataset_name=doppler_3.name,
                        file_label="real_range_rate_3"),
)
RU_s_3 = 1.0 / (np.unique(sr_obs_3.aux_dict["RU"])[0] * np.unique(sr_obs_3.aux_dict["ul_freq"])[-1])
RU_m_3 = RU_s_3 * float(scb.constants.c.values) * scb.constants.km_to_m / 2
t3_obs = np.unique(np.concatenate([sr_obs_3.meas_time_et.times.values, doppler_obs_3.meas_time_et.times.values]))
print(f"Pass 3: DSS-35, {scb.SpiceManager.et2utc(t3_obs[0])[:16]} - {scb.SpiceManager.et2utc(t3_obs[-1])[11:16]} UTC, "
      f"{(t3_obs[0] - et_max_obs) / 3600:.1f} h after the last fitted measurement")

# 1. Predicted trajectory: the estimate at the start of the window (Section 7),
#    propagated to the end of pass 3 under its own SPICE ID and SPK folder
x_0 = np.asarray(state_0.values0.values, dtype=float).ravel()
Orbiter_pred = scb.Spacecraft("orbiter_pred", -1002, Orbiter_mass, Orbiter_area, Orbiter_cr_srp)
pred_epochs = scb.EpochArray(np.arange(et_padded[0], t3_obs[-1] + 3600.0, 60.0), sys="TDB")
state_pred = scb.StateArray(epoch=pred_epochs[0], origin=origin, state=scb.StateDefinition.from_components(
    dynamical_components(Orbiter_pred, x_0[cols["position"]], x_0[cols["velocity"]],
                         x_0[cols["a_pfogm"]], float(x_0[cols["eta_srp"][0]]))))
prop_pred = scb.Propagator(primary_body=Orbiter_pred, state_vector=state_pred, tspan=pred_epochs,
                           force_models=force_model(Orbiter_pred), propagate_STM=False, display_progress=False)
with quiet():
    prop_pred.propagate()
pred_dir = tut_kernels_path / "pass3_prediction"
pred_dir.mkdir(exist_ok=True)
scb.Trajectory("orex_pass3_prediction", state_array=prop_pred.propagated_state_array).write_to_spk(
    str(pred_dir / "orex_pass3_prediction.bsp"), append_if_exists=False, write_stms=False)

# Predicted state and covariance at the epochs of pass 3
pairs = solution.propagate_state_covariance(scb.EpochArray(t3_obs, sys="TDB"), use_smoothed=False, use_all_data=True)
X3 = np.array([np.asarray(s.values0.values, dtype=float).ravel()[:6] for s, _ in pairs])
P3 = np.array([C[:6, :6] for _, C in pairs])
spk3 = np.array([scb.SpiceManager.get_state(str(Orbiter_pred.spice_id), et, J2000, origin).values for et in t3_obs])
print(f"Predicted SPK vs mapped solution: largest position difference {np.abs(spk3[:, :3] - X3[:, :3]).max() * 1e3:.3f} m")

# 3. Residuals: against OD044, edited as in Section 4, then against the prediction
with quiet():
    pass3.compute(target=Orbiter, frame=frame)
    for leaf in pass3.leaves:
        pass3.edit("huber_mad_filter", dataset_name=leaf.dataset_name, n_sigma=5.0)
# Data weights as in Section 4
range_3.sigma = scb.ArrayWUnits(range_weight_m / RU_m_3, km / km)
if float(np.ravel(doppler_3.sigma.values)[0]) < float(doppler_floor.values):
    doppler_3.sigma = doppler_floor
print("\nAgainst OD044, after editing\n" + pass3.summary())
res_od044 = {name: r.copy() for name, r in pass3.residuals().items()}
with quiet():
    pass3.compute(target=Orbiter_pred, frame=frame)
print("\nAgainst the prediction\n" + pass3.summary())
res_pred = pass3.residuals()

# 4. Predicted sigma of each kept residual
c_kms = float(scb.constants.c.values)   # [km/s]


def predicted_sigma(leaf, kept):
    """Predicted 1-sigma of the residuals of `leaf` at its kept rows."""
    t = np.asarray(leaf.observed_meas[0].times.values, dtype=float).ravel()
    i = np.searchsorted(t3_obs, t[kept])
    earth = np.array([scb.SpiceManager.get_state("399", et, J2000, origin).values for et in t[kept]])
    station = np.array([GS.nominal_state(et, "J2000").quantity.values for et in t[kept]])
    rel = X3[i] - earth - station                  # spacecraft relative to the station
    rho = np.linalg.norm(rel[:, :3], axis=1)
    u = rel[:, :3] / rho[:, None]
    if leaf.model is range_3:
        h = np.hstack([u * 1e3 / RU_m_3, np.zeros_like(u)])                 # [RU per km]
        extra = (filter_bias_sigma_m / RU_m_3) ** 2
    else:
        aux = leaf.observed_meas.aux_dict
        f_ul = np.broadcast_to(np.asarray(aux["ul_freq"], dtype=float), t.shape)[kept]
        M2 = np.broadcast_to(np.asarray(aux["M2_num"], dtype=float) / np.asarray(aux["M2_den"], dtype=float),
                             t.shape)[kept]
        rdot = np.sum(u * rel[:, 3:], axis=1)
        h = (2 * M2 * f_ul / c_kms)[:, None] * np.hstack([(rel[:, 3:] - rdot[:, None] * u) / rho[:, None], u])
        extra = 0.0
    weight = float(np.ravel(leaf.model.sigma.values)[0])
    return np.sqrt(np.einsum("ni,nij,nj->n", h, P3[i], h) + extra + weight**2)


t3_h0 = t3_obs[0]
pass3_results = {}
print(f"\n{'dataset':<16} {'n':>4} {'mean':>9} {'RMS':>9} {'mean sigma':>11} {'RMS/sigma':>10} "
      f"{'in 3 sigma':>10}   {'RMS vs OD044':>12}")
for leaf in pass3.leaves:
    name = leaf.dataset_name
    kept = np.asarray(leaf.dataset.data["outlier_flag"]).ravel() == 0
    t = np.asarray(leaf.observed_meas[0].times.values, dtype=float).ravel()
    assert len(t) == len(kept) == len(res_pred[name]) == len(res_od044[name])
    sig = predicted_sigma(leaf, kept)
    r, r0 = res_pred[name][kept], res_od044[name][kept]
    # Ranging in one-way metres, Doppler in mHz
    scale, unit = (RU_m_3, "m") if leaf.model is range_3 else (1e3, "mHz")
    pass3_results[name] = dict(t_h=(t[kept] - t3_h0) / 3600.0, r=r * scale, r0=r0 * scale, sig=sig * scale,
                               unit=unit)
    print(f"{name:<16} {kept.sum():4d} {np.mean(r) * scale:+9.3f} {np.sqrt(np.mean(r**2)) * scale:9.3f} "
          f"{np.mean(sig) * scale:11.3f} {np.sqrt(np.mean((r / sig) ** 2)):10.2f} "
          f"{np.mean(np.abs(r) < 3 * sig):10.0%}   {np.sqrt(np.mean(r0**2)) * scale:9.3f} {unit}")

fig, axes = plt.subplots(2, 1, figsize=(13, 7), sharex=True)
fig.suptitle("Pass 3 (July 6, not in the fit): pre-fit residuals against the prediction", fontweight="bold")
for ax, (name, res) in zip(axes, pass3_results.items()):
    ax.fill_between(res["t_h"], -3 * res["sig"], 3 * res["sig"], color=palette[1], alpha=0.25,
                    label="±3σ predicted")
    ax.plot(res["t_h"], res["r0"], ".", ms=3, color=palette[2], label="against OD044 (baseline)")
    ax.plot(res["t_h"], res["r"], ".", ms=3, color=palette[0], label="against the prediction")
    ax.axhline(0, color="k", lw=0.5)
    ax.set_title(name)
    ax.set_ylabel(f"Residual [{res['unit']}]")
    ax.legend(loc="best", fontsize=8)
axes[-1].set_xlabel("Time since the start of pass 3 [h]")
plt.tight_layout()
plt.show()
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[12], line 11
      7         yield
      8
      9
     10 # Pass 3: same station, models built as in Section 2, never handed to the filter
---> 11 trk_file_3 = data.trk_file_187_dss35.path
     12 GS = stations["DSS-35"]
     13 # Its bias is not estimated: the ranging model applies the delays of Section 2
     14 # and the a priori bias of the fitted passes

NameError: name 'data' is not defined

Result#

  • Ranging. The observed ranges are 19.4 m longer than the predicted ones, nearly constant over the pass (RMS 19.4 m). This is the R error of the prediction at this time in Section 8 (−21 m at +48 h; the sign flips because a residual is observed − computed), less the delay offset that pass 3 shares with the fitted passes: against OD044 its residuals are −2.4 m on average (RMS 2.5 m), as in Section 4. The offset against the prediction therefore comes from the prediction, not from the data or the delay calibration.

  • Doppler. +6.3 mHz mean and 6.5 mHz RMS, about 0.11 mm/s of line-of-sight velocity, against 1.6 mHz for OD044.

  • Against the predicted uncertainty. Every point is inside ±3σ, and the RMS is 0.25σ for ranging and 0.14σ for Doppler: the predicted covariance is conservative along the line of sight. The predicted sigmas (77 m, 47 mHz) come mostly from the PFOGM batches of the prediction, which carry their full a priori (Section 7); Section 10 shows how they change with the PFOGM σ.

A navigation team would accept this pass: its pre-fit residuals are well inside the predicted uncertainty, and its outliers are found by the same editing as in Section 4.

10. Dynamical Tuning of the PFOGM Strength#

The PFOGM σ is a statement about how wrong the force model is, and it cannot be read off the post-fit residuals: the data weights are conservative and the stochastic accelerations are barely observable on this arc (Section 7), so J/n hardly moves when σ changes. What σ does change is the predicted covariance. The tuning therefore repeats the fit and the forward-prediction test for a range of σ and compares, for each, the prediction \(\chi^2\) with its expected value of 3 and the line-of-sight (R) error with its sigma:

  • σ too small (or no PFOGM): the covariance shrinks to what a perfect force model would allow, and the prediction error leaves it (\(\chi^2\) above the bounds, errors beyond their sigma) — an over-optimistic solution;

  • σ too large: the covariance grows much faster than the error (\(\chi^2 \ll 3\), errors far inside their sigma) — a pessimistic solution that wastes margin, and the SRP scale factor loses precision as the stochastic accelerations absorb its signal.

Each fit takes a few seconds; the output of the repeated fits is silenced. The correlation time τ can be tuned the same way.

[13]:
sweep_sigmas = [None, 1e-12, 2.5e-12, 5e-12, 1e-11, 2e-11]
sweep = {}
for i, sig in enumerate(sweep_sigmas):
    if sig == pfogm_sigma:
        # Nominal run of Sections 5-8
        j = cols["eta_srp"][0]
        sweep[sig] = dict(n_it=n_iters, J=J_all, eta=x_end[j], s_eta=np.sqrt(P_end[j, j]),
                          err=pr_r, sig=pr_sr, chi2=pr_chi2)
        continue
    with quiet():
        _, sol_i, n_it_i, _, cols_i = run_batch_od(sig, f"tune{i}", verbose=False)
        J_i = normalized_cost(sol_i)[0]
        st_i, P_i = sol_i.propagate_state_covariance(t_end, use_smoothed=False, use_all_data=True)[0]
        # Evaluated right after the fit, before the next one replaces its trajectory files
        err_i, _, sig_i, _, chi2_i = compare_od044(sol_i, t_pred)
    j = cols_i["eta_srp"][0]
    sweep[sig] = dict(n_it=n_it_i, J=J_i, eta=np.asarray(st_i.values0.values, dtype=float).ravel()[j],
                      s_eta=np.sqrt(P_i[j, j]), err=err_i, sig=sig_i, chi2=chi2_i)


def label(sig):
    return "no PFOGM" if sig is None else f"{sig:.1e} km/s²"


print(f"{'PFOGM sigma':<16} {'it':>3} {'J/n':>7} {'eta_srp':>15}   {'chi2<7.81':>9} {'mean chi2':>9} {'max chi2':>9}"
      f"   {'R err / 1-sigma at +72 h':>27}")
for sig, r in sweep.items():
    print(f"{label(sig):<16} {r['n_it']:>3} {r['J']:7.4f} {r['eta']:7.3f} +/- {r['s_eta']:.3f}"
          f"   {np.mean(r['chi2'] < 7.81):9.0%} {r['chi2'].mean():9.2f} {r['chi2'].max():9.2f}"
          f"   {abs(r['err'][-1, 0]) * 1e3:12.1f} m / {r['sig'][-1, 0] * 1e3:6.1f} m")

fig, axes = plt.subplots(1, 2, figsize=(14, 4.8))
colors = plt.cm.viridis(np.linspace(0.0, 0.9, len(sweep)))
for c, (sig, r) in zip(colors, sweep.items()):
    lw = 2.4 if sig == pfogm_sigma else 1.2
    axes[0].semilogy(pred_h, r["chi2"], color=c, lw=lw, label=label(sig))
    axes[1].semilogy(pred_h, np.abs(r["err"][:, 0]) * 1e3, color=c, lw=lw, label=label(sig))
    axes[1].semilogy(pred_h, 3 * r["sig"][:, 0] * 1e3, color=c, lw=lw, ls="--")
axes[0].axhline(7.81, color="k", lw=0.8, ls="--")
axes[0].axhline(14.16, color="k", lw=0.8, ls=":")
axes[0].set_title("Position $\\chi^2$ in prediction (dashed: 95 %, dotted: 99.73 %)")
axes[1].set_title("R (line-of-sight) position: |error| (solid) and 3σ (dashed)")
axes[1].set_ylabel("[m]")
for ax in axes:
    ax.set_xlabel("Time since last measurement [h]")
    ax.legend(fontsize=8)
plt.tight_layout()
plt.show()
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[13], line 11
      7         sweep[sig] = dict(n_it=n_iters, J=J_all, eta=x_end[j], s_eta=np.sqrt(P_end[j, j]),
      8                           err=pr_r, sig=pr_sr, chi2=pr_chi2)
      9         continue
     10     with quiet():
---> 11         _, sol_i, n_it_i, _, cols_i = run_batch_od(sig, f"tune{i}", verbose=False)
     12         J_i = normalized_cost(sol_i)[0]
     13         st_i, P_i = sol_i.propagate_state_covariance(t_end, use_smoothed=False, use_all_data=True)[0]
     14         # Evaluated right after the fit, before the next one replaces its trajectory files

NameError: name 'run_batch_od' is not defined

11. Summary#

  • Two passes, one station, real data. After robust editing and with operational data weights (1 m range, 0.1 mm/s Doppler), the batch SRIF converges in 3 iterations from an a priori 8 km and 12 mm/s away from OD044.

  • Delays. The station delays and the spacecraft transponder delay are modelled; the transponder delay, 1649.9 ns, is not public and was estimated in house from the 2017 Earth gravity assist. Against OD044 it leaves a range offset of 2.4–2.6 m one-way, the same on all three passes and inside its ±4 m systematics.

  • Parameters. eta_srp = 1.26 ± 0.21 (effective C_r ≈ 1.01). The two range biases split ±0.9 m around their 0 RU a priori: their mean is the a priori itself.

  • Agreement with OD044. 2.3 m along the line of sight (R), the delay offset above, and 7–10 km in the plane of sky (T and N), with a position \(\chi^2\) of 6.0 on average and at most 7.6, below the 95 % bound: the expected pattern for a 53-hour radiometric arc.

  • Prediction. Over three days the position \(\chi^2\) falls from 7.55 to 2.0 (mean 3.2), below the 95 % bound; the R error grows to 37 m against a 156 m sigma.

  • Third pass. The pre-fit residuals of the July 6 pass, 46 hours after the fit, are +19 m in ranging and +6 mHz in Doppler, all inside ±3σ of the predicted uncertainty (RMS 0.25σ and 0.14σ).

  • Tuning. The post-fit residuals cannot choose the stochastic-acceleration strength: across the sweep J/n stays at 0.103–0.105. The prediction test can:

    • without stochastic accelerations, \(\chi^2\) is above the 95 % bound for half of the prediction (mean 8.8, max 12.6), and the +72 h R error (16 m) is 1.6 times its sigma: the covariance is optimistic;

    • σ = 1–2.5×10⁻¹² km/s² gives the smallest prediction errors (18–23 m in R at +72 h, against sigmas of 34–81 m), with a mean \(\chi^2\) of 2.8–2.9, the closest to 3;

    • σ = 5×10⁻¹² km/s², the value used here, gives a mean \(\chi^2\) of 3.2, but its R sigma at +72 h (156 m) is 4.3 times the error, as the third pass confirms (RMS 0.25σ);

    • 1×10⁻¹¹ and 2×10⁻¹¹ km/s² start to absorb the SRP signal: eta_srp drifts from 1.28 to 1.20 and 1.10 with sigmas of 0.34–0.44, the +72 h R error grows to 74–132 m, and \(\chi^2\) leaves the 95 % bound for 7 % of the prediction.

    On this arc the 3-D \(\chi^2\) is dominated by the plane-of-sky errors, so the line-of-sight component and the third pass are the sharper tests. Both favour 1–2.5×10⁻¹², as does the mean \(\chi^2\), and the 5×10⁻¹² used here is on the conservative side.

Things to try#

  • Change the correlation time pfogm_tau or the batch length and repeat the tuning.

  • Express the stochastic accelerations in the RTN frame of the spacecraft.

  • Loosen the range-bias sigma (filter_bias_sigma_m) and watch the R (line-of-sight) position follow the biases.

  • Turn the delays off (electronic_delays=False in the models of Sections 2 and 9, which also drops the transponder delay): the ranging residuals of Section 4 jump to about 2025 RU (286 m one-way), so the range biases must carry the whole delay and their a priori (filter_bias_apriori) sets the line-of-sight position.

  • Add pass 3 to pass_files and fit all three passes: the T and N sigmas shrink, and the third PFOGM batch is no longer a prediction batch.
