# Propagation and Trajectory#

Last revised 2026

What this notebook covers#

The full propagation pipeline: defining the state, choosing a force model, running the integrator, writing the result to a SPICE SPK kernel, and visualizing the trajectory.

Topics#

#

Topic

1

Spacecraft and initial conditions

2

StateDefinition — all estimability / dynamics combinations

3

Force models — Keplerian, third-body, cannonball SRP, N-plate SRP, spherical harmonics

4

Trajectory — SPK export and orbit plot

5

IAS15 integrator — comparison with DOP853

0. Imports and Setup#

[1]:
import scarabaeus as scb
import supplementary as supp

import time
from pathlib import Path
import numpy as np

# load tutorial data
data = supp.load_data()

# define units and frames
kg, m, km, sec, hr, day, rad, deg, N, unitless = scb.Units.get_units(
    ["kg", "m", "km", "sec", "hr", "day", "rad", "deg", "N", "unitless"]
)
frame = scb.Frame('J2000')

# load kernels
scb.SpiceManager.clear_kernels()
scb.SpiceManager.load_kernel_from_mkfile(data.mk.path)
SCB supplementary data out of date.
---------------------------------------------------------------------------
StdinNotImplementedError                  Traceback (most recent call last)
Cell In[1], line 9
      5 from pathlib import Path
      6 import numpy as np
      7
      8 # load tutorial data
----> 9 data = supp.load_data()
     10
     11 # define units and frames
     12 kg, m, km, sec, hr, day, rad, deg, N, unitless = scb.Units.get_units(

File ~/scb_public/scarabaeus/docs/online_documentation/sphinx_files/_collections/tutorials/supplementary/supp_data.py:433, in load_data()
    431 waiting = True
    432 while waiting:
--> 433     response = input("\nDownload and generate missing files? (y/n): ")
    434     match response.strip().lower():
    435         case "y":

File ~/scb_public/scarabaeus/.venv/lib/python3.11/site-packages/ipykernel/kernelbase.py:1514, in Kernel.raw_input(self, prompt)
   1512 if not self._allow_stdin:
   1513     msg = "raw_input was called, but this frontend does not support input requests."
-> 1514     raise StdinNotImplementedError(msg)
   1515 return self._input_request(
   1516     str(prompt),
   1517     self._get_shell_context_var(self._shell_parent_ident),
   1518     self.get_parent("shell"),
   1519     password=False,
   1520 )

StdinNotImplementedError: raw_input was called, but this frontend does not support input requests.

1. Spacecraft and Initial Conditions#

Spacecraft#

Spacecraft bundles the physical properties used by the equations of motion.

Parameter

Value

Role

tot_mass

2000 kg (1500 dry + 500 fuel)

Gravitational and SRP acceleration

area

1×10⁻⁶ km²

Cannonball SRP cross-section

ref_coeff

1.5

Reflectivity coefficient

n_plate_model

8 body-fixed plates (bus + 2 solar arrays)

Geometry-aware SRP (§3.4)

attitudeMode

"nadirPointingSun"

Body-frame orientation rule

nadirPointingAxis

[-1, 0, 0]

Body axis pointing toward Sun

[2]:
dry_mass  = scb.ArrayWUnits(1500.0, kg)
fuel_mass = scb.ArrayWUnits(500.0,  kg)
area      = scb.ArrayWUnits(1e-6,   km**2)
ref_coeff = scb.ArrayWUnits(1.5,    unitless)

# ── N-plate model ─────────────────────────────────────────────────
# six 1 m² bus faces plus two 4 m² solar arrays facing the Sun (-X);
# areas in km², all plates fixed in the body frame
n_plate = scb.nPlateModel(plates_data={
    'names'          : ['plusX', 'minusX', 'plusY', 'minusY', 'plusZ', 'minusZ', 'SA_1', 'SA_2'],
    'areas'          : [1e-6] * 6 + [4e-6] * 2,
    'ref coeffs'     : [1.5] * 6 + [1.1] * 2,
    'abs coeffs'     : [0.33] * 8,
    'dref coeffs'    : [0.33] * 8,
    'sref coeffs'    : [0.34] * 8,
    'normal vectors' : [[1, 0, 0], [-1, 0, 0], [0, 1, 0], [0, -1, 0],
                        [0, 0, 1], [0, 0, -1], [-1, 0, 0], [-1, 0, 0]],
    'types'          : ['Fixed'] * 8,
    'ids'            : [None] * 8,
})

# ── spacecraft ────────────────────────────────────────────────────
orcca_sc = scb.Spacecraft(
    name             = 'ORCCA_SC',
    spice_id         = -1000,
    tot_mass         = dry_mass + fuel_mass,
    area             = area,
    ref_coeff        = ref_coeff,
    n_plate_model    = n_plate,
    attitudeMode     = 'nadirPointingSun',
    nadirPointingAxis= np.array([-1, 0, 0]),
)
print(orcca_sc)
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[2], line 1
----> 1 dry_mass  = scb.ArrayWUnits(1500.0, kg)
      2 fuel_mass = scb.ArrayWUnits(500.0,  kg)
      3 area      = scb.ArrayWUnits(1e-6,   km**2)
      4 ref_coeff = scb.ArrayWUnits(1.5,    unitless)

NameError: name 'kg' is not defined

Initial Conditions and Time Span#

The scenario: heliocentric orbit near 1 AU, 2021 January 1 → February 1, sampled every hour. EpochArray with sys="TDB" wraps the SPICE ET values so the propagator can iterate over them.

[3]:
sun = scb.CelestialBody.from_constants('SUN')

# ── initial position and velocity (J2000, Sun-centred) ────────────
pos0 = scb.ArrayWFrame(
    np.array([-1.1123095885148e8, 8.9094345479316e7, 3.8656500948069e7]), km, frame
)
vel0 = scb.ArrayWFrame(
    np.array([-20.6936999825159, -16.7800270812616, -6.6437327193572]), km / sec, frame
)

# ── epoch array: 2021-Jan-01 → 2021-Feb-01, 1-hour steps
epochs = scb.EpochArray.interval('2021 January 1, 00:00:00', '2021 February 1, 00:00:00',
                                 dt = scb.ArrayWUnits(1, hr), sys = 'TDB')

print(f"Span : {len(epochs)} epochs,  "
      f"{epochs.duration(day)}-day arc,  1-hour step")
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[3], line 5
      1 sun = scb.CelestialBody.from_constants('SUN')
      2
      3 # ── initial position and velocity (J2000, Sun-centred) ────────────
      4 pos0 = scb.ArrayWFrame(
----> 5     np.array([-1.1123095885148e8, 8.9094345479316e7, 3.8656500948069e7]), km, frame
      6 )
      7 vel0 = scb.ArrayWFrame(
      8     np.array([-20.6936999825159, -16.7800270812616, -6.6437327193572]), km / sec, frame

NameError: name 'km' is not defined

2. StateDefinition Combinations#

A StateDefinition is an ordered list of state components. Each component is a 6-tuple:

(name, dimension, estimability, dynamics_type, body, initial_value)

The two key fields — estimability and dynamics_type — jointly control how a component interacts with the propagator and the orbit-determination filter:

estimability

dynamics_type

ODE integrates?

Filter corrects?

Typical use

"estimated"

"dynamic"

✓

✓

Position, velocity

"estimated"

"static"

✗ (constant)

✓

SRP scale η, drag Cd, biases

"considered"

"static"

✗

✗ (cov. only)

Schmidt–Kalman consider parameters

Two Construction Styles#

StateDefinition supports a component API (explicit tuples) and a fluent API (method chaining). Both produce identical objects; choose whichever is more readable.

# Component style (explicit)
state = scb.StateDefinition.from_components([
    ("position", 3, "estimated", "dynamic", sc, pos0),
    ("velocity", 3, "estimated", "dynamic", sc, vel0),
    ("eta_srp",  1, "estimated", "static",  sc, eta),
])

# Fluent style (chained)
state = (
    scb.StateDefinition()
    .position(sc, pos0)
    .velocity(sc, vel0)
    .param("eta_srp", sc, eta, estimation="estimated", dynamics="static")
)
[4]:
eta_val = scb.ArrayWFrame(scb.ArrayWUnits(np.array([1.0]), None), frame)

# ── 1. estimated + dynamic  (standard pos/vel, propagated and filter-correctable)
state_dyn = scb.StateDefinition.from_components([
    ("position", 3, "estimated", "dynamic", orcca_sc, pos0),
    ("velocity", 3, "estimated", "dynamic", orcca_sc, vel0),
])

# ── 2. estimated + static  (SRP scale: carried constant, filter-correctable)
state_eta_est = scb.StateDefinition.from_components([
    ("position", 3, "estimated", "dynamic", orcca_sc, pos0),
    ("velocity", 3, "estimated", "dynamic", orcca_sc, vel0),
    ("eta_srp",  1, "estimated", "static",  orcca_sc, eta_val),
])

# ── 3. considered + static  (Schmidt parameter: uncertainty inflates covariance,
#                             but value is never updated by the filter)
state_eta_con = scb.StateDefinition.from_components([
    ("position", 3, "estimated",  "dynamic", orcca_sc, pos0),
    ("velocity", 3, "estimated",  "dynamic", orcca_sc, vel0),
    ("eta_srp",  1, "considered", "static",  orcca_sc, eta_val),
])

# ── fluent style — equivalent to state_eta_est ────────────────────
state_fluent = (
    scb.StateDefinition()
    .position(orcca_sc, pos0)
    .velocity(orcca_sc, vel0)
    .param("eta_srp", orcca_sc, eta_val, estimation="estimated", dynamics="static")
)

# ── summary ───────────────────────────────────────────────────────
sv_dyn     = scb.StateArray(epoch=epochs[0], origin=sun, state=state_dyn)
sv_eta_est = scb.StateArray(epoch=epochs[0], origin=sun, state=state_eta_est)
sv_eta_con = scb.StateArray(epoch=epochs[0], origin=sun, state=state_eta_con)

for label, sv in [
    ("est+dynamic (pos/vel)",      sv_dyn),
    ("est+static  (eta_srp est)",  sv_eta_est),
    ("considered  (eta_srp con)",  sv_eta_con),
]:
    print(f"  {label:<38}  state dim = {sv.size}")
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[4], line 1
----> 1 eta_val = scb.ArrayWFrame(scb.ArrayWUnits(np.array([1.0]), None), frame)
      2
      3 # ── 1. estimated + dynamic  (standard pos/vel, propagated and filter-correctable)
      4 state_dyn = scb.StateDefinition.from_components([

NameError: name 'frame' is not defined

3. Force Models and Propagation#

Every propagation is assembled from three components:

  • ``StateArray`` — initial state at t₀ (wraps a StateDefinition)

  • ``ForceModelTranslation`` — accumulates accelerations at each integration step

  • ``Propagator`` — drives the ODE integrator over tspan, fills propagated_state_array

The five examples below add force-model terms progressively.

Example

Force model

Extra flag

1

Central-body gravity (Sun) only

—

2

  • Third-body perturbations

third_bodies=[…]

3

  • Cannonball SRP

cannonball_SRP=True

4

  • N-plate SRP

nplate_SRP=True

5

  • Spherical-harmonic gravity

sph_harm=True

Two-body (Keplerian)#

Only the Sun’s point-mass gravity — the trajectory follows a Keplerian conic. This is the baseline all other examples are compared against.

[5]:
sv1    = scb.StateArray(epoch=epochs[0], origin=sun, state=state_dyn)
fm1    = scb.ForceModelTranslation(primary_body=orcca_sc)
prop1  = scb.Propagator(primary_body=orcca_sc, state_vector=sv1,
                         tspan=epochs, force_models=fm1)
print("── Example 1: Keplerian ──────────────────────────────────")
prop1.propagate()
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[5], line 1
----> 1 sv1    = scb.StateArray(epoch=epochs[0], origin=sun, state=state_dyn)
      2 fm1    = scb.ForceModelTranslation(primary_body=orcca_sc)
      3 prop1  = scb.Propagator(primary_body=orcca_sc, state_vector=sv1,
      4                          tspan=epochs, force_models=fm1)

NameError: name 'epochs' is not defined

Third-body Perturbations#

third_bodies accepts CelestialBody objects, built with scb.CelestialBody.from_constants(...) (add .barycenter() for a system barycenter). SCB queries their positions from the ephemeris at each step and adds the point-mass acceleration. Inner planets (Mercury, Venus, Earth) are the dominant third-body terms near 1 AU.

[6]:
third_bodies = scb.CelestialBody.from_constants(['MERCURY', 'VENUS', 'EARTH'])

sv2   = scb.StateArray(epoch=epochs[0], origin=sun, state=state_dyn)
fm2   = scb.ForceModelTranslation(primary_body=orcca_sc, third_bodies=third_bodies)
prop2 = scb.Propagator(primary_body=orcca_sc, state_vector=sv2,
                        tspan=epochs, force_models=fm2)
print("── Example 2: Third-body ─────────────────────────────────")
prop2.propagate()
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[6], line 3
      1 third_bodies = scb.CelestialBody.from_constants(['MERCURY', 'VENUS', 'EARTH'])
      2
----> 3 sv2   = scb.StateArray(epoch=epochs[0], origin=sun, state=state_dyn)
      4 fm2   = scb.ForceModelTranslation(primary_body=orcca_sc, third_bodies=third_bodies)
      5 prop2 = scb.Propagator(primary_body=orcca_sc, state_vector=sv2,
      6                         tspan=epochs, force_models=fm2)

NameError: name 'epochs' is not defined

Cannonball SRP#

The spacecraft is treated as a sphere: \(\mathbf{a}_\text{SRP} = -(r_\text{AU}/r)^2\, P_\odot\,(A/m)\,C_r\,\hat{\mathbf{r}}_\odot\)

eta_srp is a static estimated scale factor included in the state so a filter can solve for it to absorb SRP model error without re-propagating (see §2, combination 2).

[7]:
sv3   = scb.StateArray(epoch=epochs[0], origin=sun, state=state_eta_est)
fm3   = scb.ForceModelTranslation(primary_body=orcca_sc, cannonball_SRP=True)
prop3 = scb.Propagator(primary_body=orcca_sc, state_vector=sv3,
                        tspan=epochs, force_models=fm3)
print("── Example 3: Cannonball SRP ─────────────────────────────")
prop3.propagate()
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[7], line 1
----> 1 sv3   = scb.StateArray(epoch=epochs[0], origin=sun, state=state_eta_est)
      2 fm3   = scb.ForceModelTranslation(primary_body=orcca_sc, cannonball_SRP=True)
      3 prop3 = scb.Propagator(primary_body=orcca_sc, state_vector=sv3,
      4                         tspan=epochs, force_models=fm3)

NameError: name 'epochs' is not defined

N-plate SRP#

Decomposes the spacecraft into flat plates; at each step, the illuminated plates are identified and their SRP forces summed. More accurate than cannonball for non-spherical geometries. The attitude mode (nadirPointingSun) defines body-frame orientation.

With nadirPointingSun every plate must be fixed in the body frame, as in the model built in §1. Plate models that mix in CK-driven or named-frame plates (e.g. a mission config with articulated solar arrays) need a C-kernel or the inertialFixedAttitude mode instead.

[8]:
sv4   = scb.StateArray(epoch=epochs[0], origin=sun, state=state_dyn)
fm4   = scb.ForceModelTranslation(primary_body=orcca_sc, nplate_SRP=True)
prop4 = scb.Propagator(primary_body=orcca_sc, state_vector=sv4,
                        tspan=epochs, force_models=fm4)
print("── Example 4: N-plate SRP ────────────────────────────────")
prop4.propagate()
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[8], line 1
----> 1 sv4   = scb.StateArray(epoch=epochs[0], origin=sun, state=state_dyn)
      2 fm4   = scb.ForceModelTranslation(primary_body=orcca_sc, nplate_SRP=True)
      3 prop4 = scb.Propagator(primary_body=orcca_sc, state_vector=sv4,
      4                         tspan=epochs, force_models=fm4)

NameError: name 'epochs' is not defined

Spherical-Harmonic Gravity#

Augments the central-body gravity with normalized Stokes coefficients \((C_{nm}, S_{nm})\) to a chosen degree and order. Here the SH body is Earth (not the Sun), which is physically correct for an Earth-orbiting spacecraft. For the heliocentric orbit used throughout this notebook the SH acceleration is tiny but the API usage is identical.

[9]:
sph = {
    'order'    : 3,
    'cs_file'  : data.earth_sph_config.path,
    'body'     : scb.CelestialBody.from_constants('EARTH'),
    'norm_flag': True,
}

sv5   = scb.StateArray(epoch=epochs[0], origin=sun, state=state_dyn)
fm5   = scb.ForceModelTranslation(
    primary_body=orcca_sc,
    sph_harm=True,
    sph_harm_order   =sph['order'],
    sph_harm_cs_file =sph['cs_file'],
    sph_harm_body    =sph['body'],
    sph_harm_norm_flag=sph['norm_flag'],
)
prop5 = scb.Propagator(primary_body=orcca_sc, state_vector=sv5,
                        tspan=epochs, force_models=fm5)
print("── Example 5: Spherical harmonics ───────────────────────")
prop5.propagate()
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[9], line 3
      1 sph = {
      2     'order'    : 3,
----> 3     'cs_file'  : data.earth_sph_config.path,
      4     'body'     : scb.CelestialBody.from_constants('EARTH'),
      5     'norm_flag': True,
      6 }

NameError: name 'data' is not defined

4. Trajectory and Visualization#

scb.Trajectory wraps propagated_state_array and writes it to a SPICE SPK kernel via write_to_spk. Once furnised, any SPICE-aware tool can query the spacecraft’s state at arbitrary epochs within the propagation window.

Below: the Keplerian trajectory is written, furnised, and plotted.

[10]:
AU_km = 1.496e8   # km per AU

# ── write Keplerian trajectory to SPK ────────────────────────────
tut_result_path = Path.cwd() / 'tutorial_results/prop_and_traj'
tut_result_path.mkdir(parents = True, exist_ok = True)
spk_path = tut_result_path / 'keplerian_trajectory.bsp'
if spk_path.exists(): spk_path.unlink()  # remove previous spk file if it exists
traj1 = scb.Trajectory(state_array=prop1.propagated_state_array)
traj1.write_to_spk(str(spk_path))
scb.SpiceManager.load_kernel_from_mkfile(str(spk_path))
print(f"SPK written to {str(spk_path)}")

# ── query positions at each epoch ────────────────────────────────
positions = np.array([
    scb.SpiceManager.get_state(str(orcca_sc.spice_id), et, frame, sun).values[0:3]
    for et in epochs.times.values
]) / AU_km   # → AU

# plot
supp.supp_plotting.plot_simple_orbit(positions)
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[10], line 8
      4 tut_result_path = Path.cwd() / 'tutorial_results/prop_and_traj'
      5 tut_result_path.mkdir(parents = True, exist_ok = True)
      6 spk_path = tut_result_path / 'keplerian_trajectory.bsp'
      7 if spk_path.exists(): spk_path.unlink()  # remove previous spk file if it exists
----> 8 traj1 = scb.Trajectory(state_array=prop1.propagated_state_array)
      9 traj1.write_to_spk(str(spk_path))
     10 scb.SpiceManager.load_kernel_from_mkfile(str(spk_path))
     11 print(f"SPK written to {str(spk_path)}")

NameError: name 'prop1' is not defined

Force Model Position Comparison#

The table below quantifies how much each perturbation shifts the final position after 31 days, relative to the Keplerian baseline.

[11]:
def final_pos_km(prop, label):
    tmp_bsp = Path.cwd() / f'tutorial_results/_tmp_{label}.bsp'
    if tmp_bsp.exists(): tmp_bsp.unlink()
    scb.Trajectory(state_array=prop.propagated_state_array).write_to_spk(str(tmp_bsp))
    scb.SpiceManager.load_kernel_from_mkfile(str(tmp_bsp))
    pos = scb.SpiceManager.get_state(
        str(orcca_sc.spice_id), epochs.times.values[-1], frame, sun
    ).values[0:3]
    tmp_bsp.unlink()
    return np.array(pos)

labels = ['Keplerian', 'Third-body', 'Cannonball SRP', 'N-plate SRP', 'Sph. harmonics']
pos_f  = [final_pos_km(p, f'ex{i+1}') for i, p in enumerate([prop1, prop2, prop3, prop4, prop5])]
pos_kep = pos_f[0]

print(f"\n  {'Force model':<20}  {'|Δr| vs Keplerian [km]':>24}")
print("  " + "-" * 48)
for lbl, pos in zip(labels, pos_f):
    print(f"  {lbl:<20}  {np.linalg.norm(pos - pos_kep):>20.3f} km")
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[11], line 13
      9     tmp_bsp.unlink()
     10     return np.array(pos)
     11
     12 labels = ['Keplerian', 'Third-body', 'Cannonball SRP', 'N-plate SRP', 'Sph. harmonics']
---> 13 pos_f  = [final_pos_km(p, f'ex{i+1}') for i, p in enumerate([prop1, prop2, prop3, prop4, prop5])]
     14 pos_kep = pos_f[0]
     15
     16 print(f"\n  {'Force model':<20}  {'|Δr| vs Keplerian [km]':>24}")

NameError: name 'prop1' is not defined

Parameters JSON Sidecar and Trajectory.get_state#

write_to_spk always writes a <name>_parameters.json sidecar alongside the .bsp whenever the trajectory carries estimated parameters (any component beyond position and velocity). The JSON stores the full time history of every parameter so they survive the SPK round-trip.

File written

Content

Always?

<name>.bsp

Position + velocity (SPICE type-13 Hermite)

✓

<name>_parameters.json

Parameter time-series + state definition

only if params present

<name>_settings.json

Propagator force-model settings

only if settings present

<name>_mass_profile.json

Spacecraft mass polynomial

only if mass profile present

Once the SPK is furnised, ``Trajectory.get_state(epoch)`` is the right way to query the trajectory — it returns a dict with "position", "velocity", and "parameters" (read back from the JSON sidecar), unlike the raw SpiceManager.get_state which only returns the 6-state from SPICE.

[12]:
import json

# ── write trajectory with eta_srp parameter (prop3 = cannonball SRP) ─
spk_params = Path.cwd() / f'tutorial_results/srp_trajectory.bsp'
if spk_params.exists(): spk_params.unlink()

traj3 = scb.Trajectory(state_array=prop3.propagated_state_array)
traj3.write_to_spk(str(spk_params))

# ── show which sidecar files were created ────────────────────────────
base = str(spk_params).replace('.bsp', '')
sidecars = ['_parameters.json', '_settings.json', '_mass_profile.json']
print("Files written:")
for ext in ['.bsp'] + sidecars:
    fpath = base + ext
    # if os.path.isfile(fpath):
    #     print(f"  {os.path.basename(fpath)}  ({os.path.getsize(fpath):,} bytes)")
    if Path(base + ext).exists():
        print(f"  {Path(fpath).name}  ({Path(fpath).stat().st_size:,} bytes)")

# ── inspect the parameters JSON ───────────────────────────────────────
with open(base + '_parameters.json') as fh:
    pj = json.load(fh)

print(f"\nparameters_def  : {pj['parameters_def']}")          # parameter names
print(f"n epochs stored : {len(pj['epochsTDB'])}")
print(f"eta_srp  t=0    : {pj['parameters'][0]}")             # first epoch value
print(f"eta_srp  t=-1   : {pj['parameters'][-1]}")            # last  epoch value

# ── furnish SPK and query via Trajectory.get_state ────────────────────
# Trajectory.get_state returns position, velocity AND the parameters
# read back from the JSON sidecar — unlike SpiceManager.get_state
# which only returns the 6-state from the SPK segment.
scb.SpiceManager.load_kernel_from_mkfile(str(spk_params))

epoch_q = epochs[100]
state   = traj3.get_state(epoch_input=epoch_q, folder_path_override = str(Path.cwd() / 'tutorial_results/'))

print(f"\nTrajectory.get_state at epoch index 100:")
print(f"  position   (km)  : {state['position'].values.round(3)}")
print(f"  velocity (km/s)  : {state['velocity'].values.round(8)}")
print(f"  parameters       : {state['parameters']}")
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[12], line 7
      3 # ── write trajectory with eta_srp parameter (prop3 = cannonball SRP) ─
      4 spk_params = Path.cwd() / f'tutorial_results/srp_trajectory.bsp'
      5 if spk_params.exists(): spk_params.unlink()
      6
----> 7 traj3 = scb.Trajectory(state_array=prop3.propagated_state_array)
      8 traj3.write_to_spk(str(spk_params))
      9
     10 # ── show which sidecar files were created ────────────────────────────

NameError: name 'prop3' is not defined

5. IAS15 Integrator#

Scarabaeus ships two integrators selectable via Propagator(..., integrator=...):

Integrator

Order

Adaptive?

Description

"DOP853" (default)

8

✓

Dormand–Prince explicit Runge–Kutta (scipy)

"IAS15"

15

✓

Implicit adaptive integrator (Rein & Spiegel 2015)

IAS15 (Implicit integrator with Adaptive Step-size control, order 15) is a native Scarabaeus implementation designed for long-arc, high-accuracy orbital integrations. Because it is fully implicit and 15th-order, it conserves energy to machine precision over many orbits — a property DOP853 cannot match.

Current constraints#

Requirement

Why

Pos + vel state only (6 components)

IAS15 integrates ys[0:6]; static params are not supported yet

Identity initial STM

Non-identity Φ₀ is not yet handled

Pass integrator="IAS15" to any Propagator with a 6-state StateArray.

[13]:
# ── IAS15 propagation ─────────────────────────────────────────────
# propagate_STM=False is required: IAS15 does not integrate the
# variational equations and will crash if STM propagation is enabled.
sv_ias   = scb.StateArray(epoch=epochs[0], origin=sun, state=state_dyn)
fm_ias   = scb.ForceModelTranslation(primary_body=orcca_sc)

prop_ias = scb.Propagator(
    primary_body  = orcca_sc,
    state_vector  = sv_ias,
    tspan         = epochs,
    force_models  = fm_ias,
    integrator    = 'IAS15',
    propagate_STM = False,
)

t_ias_start = time.time()
prop_ias.propagate()
t_ias = time.time() - t_ias_start

# ── DOP853 timing for comparison ─────────────────────────────────
sv_dop   = scb.StateArray(epoch=epochs[0], origin=sun, state=state_dyn)
fm_dop   = scb.ForceModelTranslation(primary_body=orcca_sc)
prop_dop = scb.Propagator(
    primary_body  = orcca_sc,
    state_vector  = sv_dop,
    tspan         = epochs,
    force_models  = fm_dop,
    integrator    = 'DOP853',
    propagate_STM = False,
)

t_dop_start = time.time()
prop_dop.propagate()
t_dop = time.time() - t_dop_start

print(f"\n  IAS15  runtime : {t_ias:.2f} s")
print(f"  DOP853 runtime : {t_dop:.2f} s")
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[13], line 4
      1 # ── IAS15 propagation ─────────────────────────────────────────────
      2 # propagate_STM=False is required: IAS15 does not integrate the
      3 # variational equations and will crash if STM propagation is enabled.
----> 4 sv_ias   = scb.StateArray(epoch=epochs[0], origin=sun, state=state_dyn)
      5 fm_ias   = scb.ForceModelTranslation(primary_body=orcca_sc)
      6
      7 prop_ias = scb.Propagator(

NameError: name 'epochs' is not defined
[14]:
# ── extract position histories  shape: (n_epochs, 3) ─────────────
def extract_pos(prop):
    # propagated_state_array.state[0] = position entry
    # .quantity.values has shape (n_epochs, 3)
    return np.array(prop.propagated_state_array.state[0][5].quantity.values)

pos_dop = extract_pos(prop_dop)   # (n, 3)
pos_ias = extract_pos(prop_ias)   # (n, 3)

# position difference at each epoch (km)
n       = min(len(pos_dop), len(pos_ias))
diff_km = np.linalg.norm(pos_dop[:n] - pos_ias[:n], axis=1)
t_hrs   = (epochs.times.values[:n] - epochs.times.values[0]) / 3600.0

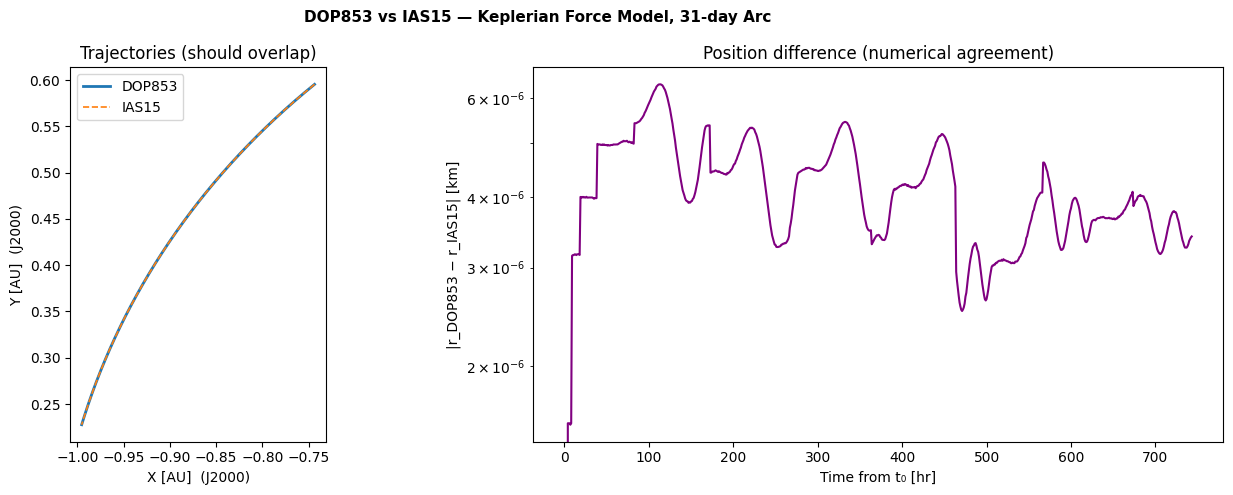

print(f"  Max |Δr| DOP853 vs IAS15 over {epochs.duration(day)} days : {diff_km.max():.3e} km")
print(f"  Mean|Δr|                                          : {diff_km.mean():.3e} km")
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[14], line 7
      3     # propagated_state_array.state[0] = position entry
      4     # .quantity.values has shape (n_epochs, 3)
      5     return np.array(prop.propagated_state_array.state[0][5].quantity.values)
      6
----> 7 pos_dop = extract_pos(prop_dop)   # (n, 3)
      8 pos_ias = extract_pos(prop_ias)   # (n, 3)
      9
     10 # position difference at each epoch (km)

NameError: name 'prop_dop' is not defined
[15]:
# comparison plot
supp.supp_plotting.plot_ias15_vs_dop853(pos_dop, pos_ias, t_hrs, diff_km, n, AU_km)
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[15], line 2
      1 # comparison plot
----> 2 supp.supp_plotting.plot_ias15_vs_dop853(pos_dop, pos_ias, t_hrs, diff_km, n, AU_km)

NameError: name 'pos_dop' is not defined
