# N-Plate Model and Spacecraft Attitude#

Scarabaeus | Last revised 2026

What this notebook covers#

Two tightly related topics: the N-Plate SRP model which requires attitude data from SPICE C-kernels to orient solar array panels, and the spacecraft attitude interface used to extract orientation quaternions directly from C-kernels. Both are demonstrated using the OSIRIS-REx mission.

Topics#

#

Topic

1

N-Plate Model — construction from a configuration file

2

N-Plate Model — examining CK panel intervals

3

N-Plate Model — querying time-varying normal vectors

4

N-Plate Model — static normals and spacecraft integration

5

Spacecraft Attitude — quaternion history from a C-kernel

How to run#

Run from the project root directory (scarabaeus/).

0. Imports and Setup#

[1]:
import scarabaeus as scb
import supplementary as supp

from pathlib import Path
import numpy as np

# load tutorial data
data = supp.load_data()

# define units and fraes
km, hr, sec, kg = scb.Units.get_units(['km', 'hr', 'sec', 'kg'])
J2000 = scb.Frame('J2000')

# ── kernel pool (SC body CK + solar array CK + ephemeris) ─────────
scb.SpiceManager.clear_kernels()
scb.SpiceManager.load_kernel_from_mkfile(data.OREx_mk.path)
SCB supplementary data out of date.
---------------------------------------------------------------------------
StdinNotImplementedError                  Traceback (most recent call last)
Cell In[1], line 8
      4 from pathlib import Path
      5 import numpy as np
      6
      7 # load tutorial data
----> 8 data = supp.load_data()
      9
     10 # define units and fraes
     11 km, hr, sec, kg = scb.Units.get_units(['km', 'hr', 'sec', 'kg'])

File ~/scb_public/scarabaeus/docs/online_documentation/sphinx_files/_collections/tutorials/supplementary/supp_data.py:433, in load_data()
    431 waiting = True
    432 while waiting:
--> 433     response = input("\nDownload and generate missing files? (y/n): ")
    434     match response.strip().lower():
    435         case "y":

File ~/scb_public/scarabaeus/.venv/lib/python3.11/site-packages/ipykernel/kernelbase.py:1514, in Kernel.raw_input(self, prompt)
   1512 if not self._allow_stdin:
   1513     msg = "raw_input was called, but this frontend does not support input requests."
-> 1514     raise StdinNotImplementedError(msg)
   1515 return self._input_request(
   1516     str(prompt),
   1517     self._get_shell_context_var(self._shell_parent_ident),
   1518     self.get_parent("shell"),
   1519     password=False,
   1520 )

StdinNotImplementedError: raw_input was called, but this frontend does not support input requests.

1. N-Plate Model#

The N-Plate SRP model represents a spacecraft’s solar-radiation-pressure geometry as a finite set of flat plates, each with its own area, reflectivity coefficients, and surface normal. Panels can be fixed in the spacecraft body frame or attitude-driven by a SPICE C-kernel (CK), as is the case for articulated solar arrays.

The model is constructed from a JSON configuration file that specifies each panel’s physical properties and SPICE frame ID. The two meta-kernel types loaded above are:

Kernel type

Purpose

CK (spacecraft body)

Main-bus attitude → body-frame orientation in J2000

CK (solar arrays)

Solar-panel articulation → time-varying panel normals

Constructing the Model#

Examining CK Panel Intervals#

SpiceManager.ckbrief inspects a binary C-kernel and returns the SPICE frame IDs and their valid time intervals. The N-plate configuration defines panels -64017 and -64027 (OSIRIS-REx solar arrays), which are plates 3 and 4 in the CK. Both share the same interval, so we take the first entry to get the query bounds.

[2]:
# ── build N-plate model from configuration JSON ───────────────────
n_model = scb.nPlateModel(data.OREx_nplate.path)
print(n_model)
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[2], line 2
      1 # ── build N-plate model from configuration JSON ───────────────────
----> 2 n_model = scb.nPlateModel(data.OREx_nplate.path)
      3 print(n_model)

NameError: name 'data' is not defined

Querying Time-Varying Normal Vectors#

nPlateModel._get_ck_normals(epoch, sc_id) returns the inertially-expressed unit normals for all CK-driven panels at a given epoch. sc_id is the spacecraft NAIF ID needed to convert the epoch to spacecraft-clock ticks (SCLK) internally.

[3]:
# ── inspect C-kernel for solar array panel intervals ─────────────
brief  = scb.SpiceManager.ckbrief(data.OREx_ck_sa.path, disp=True)

# panels -64017 and -64027 share the same valid interval → take first entry
plate4 = brief[0]
start, end = plate4['TDB_INTERVAL'][0][0], plate4['TDB_INTERVAL'][0][1]
print(f"\nQuery interval:  {start}  →  {end}")
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[3], line 2
      1 # ── inspect C-kernel for solar array panel intervals ─────────────
----> 2 brief  = scb.SpiceManager.ckbrief(data.OREx_ck_sa.path, disp=True)
      3
      4 # panels -64017 and -64027 share the same valid interval → take first entry
      5 plate4 = brief[0]

NameError: name 'data' is not defined

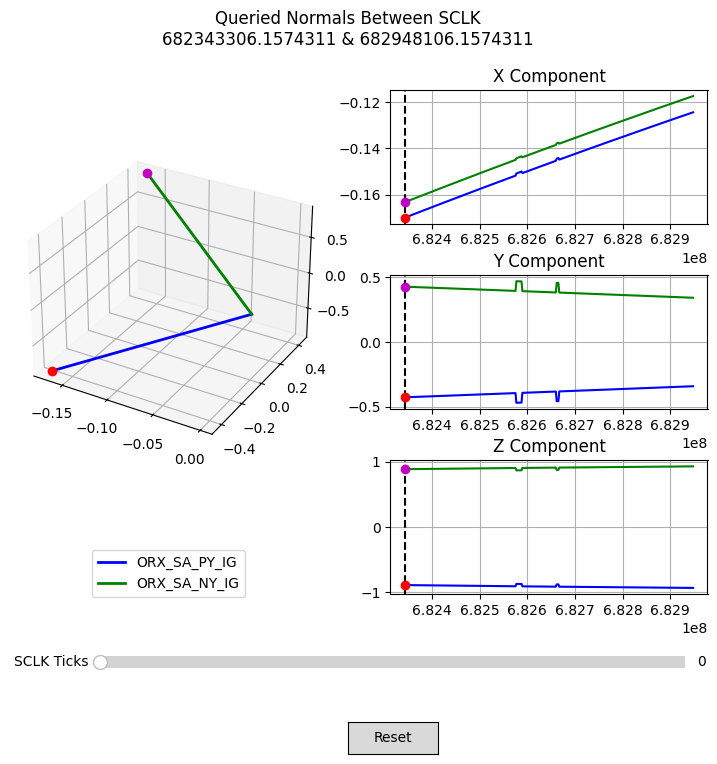

The plot below shows how the two solar-array normals (ORX_SA_PY_IG and ORX_SA_NY_IG) rotate over the queried interval. The interactive version lets you scrub through time; the inline version renders statically for documentation.

[4]:
# ── query CK normals every half-hour across the full interval ─────
orex_id = -64                                          # NAIF SC ID for SCLK
dt      = scb.ArrayWUnits(0.5, hr)
times   = scb.EpochArray.interval(start.to(rep = 'NUM'), end.to(rep ='NUM'), dt)

normals = [n_model._get_ck_normals(t, orex_id) for t in times]
print(f"{len(normals)} epochs queried,  {len(normals[0])} CK panels per epoch")
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[4], line 3
      1 # ── query CK normals every half-hour across the full interval ─────
      2 orex_id = -64                                          # NAIF SC ID for SCLK
----> 3 dt      = scb.ArrayWUnits(0.5, hr)
      4 times   = scb.EpochArray.interval(start.to(rep = 'NUM'), end.to(rep ='NUM'), dt)
      5
      6 normals = [n_model._get_ck_normals(t, orex_id) for t in times]

NameError: name 'hr' is not defined

Plotting Normal Vectors#

Note: %matplotlib widget makes the figure interactive (time slider).

[6]:
%matplotlib inline
# NOTE: rerun static version of the plot so that it displays for online tutorial
supp.plotting.plot_normals(normals, times)
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[6], line 3
      1 get_ipython().run_line_magic('matplotlib', 'inline')
      2 # NOTE: rerun static version of the plot so that it displays for online tutorial
----> 3 supp.plotting.plot_normals(normals, times)

NameError: name 'normals' is not defined

Static Normals at a Single Epoch#

nPlateModel.get_all_normals(epoch, sc_id) returns normals for all panels — both fixed body-frame plates and CK-driven plates — resolved into the inertial frame at a single epoch. This is the call the propagator uses internally at each integration step.

[7]:
# ── all normals (fixed + CK) at the start of the interval ────────
all_norms = n_model.get_all_normals(start, orex_id)
print("Panel normals at epoch start:")
for i, n in enumerate(all_norms):
    print(f"  Plate {i+1}: {np.array(n).round(4)}")
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[7], line 2
      1 # ── all normals (fixed + CK) at the start of the interval ────────
----> 2 all_norms = n_model.get_all_normals(start, orex_id)
      3 print("Panel normals at epoch start:")
      4 for i, n in enumerate(all_norms):
      5     print(f"  Plate {i+1}: {np.array(n).round(4)}")

NameError: name 'n_model' is not defined

Attaching to a Spacecraft#

Pass n_plate_model to Spacecraft to activate N-plate SRP in the force model. get_dependent_spice_ids() lists every SPICE frame ID that the model depends on — useful for verifying all required CK/FK kernels are loaded before propagation.

[8]:
# ── attach N-plate model to spacecraft ────────────────────────────
orex = scb.Spacecraft(
    'OSIRIS-REx', -64,
    scb.ArrayWUnits(0, kg),
    n_plate_model=n_model,
)

print("Spacecraft SPICE IDs required by the N-plate model:")
print(orex.get_dependent_spice_ids())
---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[8], line 4
      1 # ── attach N-plate model to spacecraft ────────────────────────────
      2 orex = scb.Spacecraft(
      3     'OSIRIS-REx', -64,
----> 4     scb.ArrayWUnits(0, kg),
      5     n_plate_model=n_model,
      6 )
      7

NameError: name 'kg' is not defined

2. Spacecraft Attitude#

Spacecraft.get_attitude(frame, et) queries the C-kernel and returns the orientation of the spacecraft body frame as a unit quaternion \([q_0,\, q_1,\, q_2,\, q_3]\) at the given epoch. This wraps the underlying SPICE ckgpav / m2q calls and expresses the result in the requested inertial frame.

The example below extracts the quaternion history for OSIRIS-REx over a five-day window and plots all four components.

[9]:
# ── attitude query over a 5-day window ───────────────────────────
et_start = scb.SpiceManager.str2et("2021 AUG 17 12:00:00 UTC")
et_end   = scb.SpiceManager.str2et("2021 AUG 22 08:00:00 UTC")
step_sec = 20                                          # sample every 20 s

et_arr = np.arange(et_start, et_end, step_sec)

# reuse the spacecraft defined in §1 (orex already has the N-plate model)
attitudes = [orex.get_attitude(J2000, et) for et in et_arr]
attitudes = np.array(attitudes)                        # shape: (N, 4)

print(f"Queried {len(attitudes)} attitude epochs")
print(f"First quaternion  [q0 q1 q2 q3] : {attitudes[0].round(6)}")
print(f"Norm check (should be 1.0)       : {np.linalg.norm(attitudes[0]):.8f}")
---------------------------------------------------------------------------
SpiceNOLEAPSECONDS                        Traceback (most recent call last)
Cell In[9], line 2
      1 # ── attitude query over a 5-day window ───────────────────────────
----> 2 et_start = scb.SpiceManager.str2et("2021 AUG 17 12:00:00 UTC")
      3 et_end   = scb.SpiceManager.str2et("2021 AUG 22 08:00:00 UTC")
      4 step_sec = 20                                          # sample every 20 s
      5

File ~/scb_public/scarabaeus/src/scarabaeus/timeAndFrame/SpiceManager.py:2166, in SpiceManager.str2et(s)
   2148 @staticmethod
   2149 def str2et(s: str) -> float:
   2150     """Convert a time string to ephemeris time (TDB seconds past J2000).
   2151
   2152     Thin wrapper around ``spice.str2et``.  Accepts a wide range of
   (...)   2164         TDB seconds past J2000 corresponding to *s*.
   2165     """
-> 2166     return spice.str2et(s)

File ~/scb_public/scarabaeus/.venv/lib/python3.11/site-packages/spiceypy/spiceypy.py:161, in spice_error_check.<locals>.with_errcheck(*args, **kwargs)
    157             res = f(*args, **kwargs)
    158             check_for_spice_error(f)
    159             return res
    160         except BaseException:
--> 161             raise

File ~/scb_public/scarabaeus/.venv/lib/python3.11/site-packages/spiceypy/spiceypy.py:141, in check_for_spice_error(f)
    137         explain = getmsg("EXPLAIN", 100).strip()
    138         long = getmsg("LONG", 1841).strip()
    139         traceback = qcktrc(200)
    140         reset()
--> 141         raise dynamically_instantiate_spiceyerror(
    142             short=short, explain=explain, long=long, traceback=traceback
    143         )

SpiceNOLEAPSECONDS:
================================================================================

Toolkit version: CSPICE_N0067

SPICE(NOLEAPSECONDS) --

The variable that points to the leapseconds (DELTET/DELTA_AT) could not be located in the kernel pool.  It is likely that the leapseconds kernel has not been loaded.

str2et_c --> STR2ET --> TTRANS

================================================================================
